Toyota Corsa/tercel EL30 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16080	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88510 - UNIT ASSY, COOLER
88510-16170	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88515 - VALVE, COOLER EXPANSION
88515-16040	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88625 - THERMISTOR, COOLER, NO.1
88625-16080	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88645G - SWITCH, PRESSURE
88645-16020	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88648 - WIRING, COOLER, NO.1
88648-16120	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16290	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
Common parts
90159-60125
90179-06054

Part #	Description	Period	Qty
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16030	EL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16310	EL30..3FC..(GX,TX,VC,VL) ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 08/1989	1
88605-16270	EL30..3FC..(GX,TX,VC,VL) ｱﾘ(PS) & ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 08/1989	1
88605-16260	EL30..3FC..(GX,TX,VC,VL) ｱﾘ(PS),ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88605-16300	EL30..3FC..(GX,TX,VC,VL) ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88605-16311	EL30..3FC..(GX,TX,VC,VL) ｸ-ﾗｽｲﾂﾁ = ｱﾘ(*83,1-BUTTON)	08/1989 - 09/1990	1
88605-16271	EL30..3FC..(GX,TX,VC,VL) ｱﾘ(PS),ｸ-ﾗｽｲﾂﾁ = ｱﾘ(*83,1-BUTTON)	08/1989 - 09/1990	1
88630W - RELAY ASSY
88630-95702	EL30..3FC..(GX,TX,VC,VL)	05/1988 - 09/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16270	EL3#..ATM;EL31..5F..TBO NO.2	05/1988 - 09/1990	1
88650-16340	EL3#..GX,TX,VC,VL NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88650-16360	EL3#..GX,TX,VC,VL NO.1,ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88650-16370	EL30..GX,TX,VC,VL NO.1,ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 09/1990	1
88650-16350	EL30..GX,TX,VC,VL NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 09/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16270	EL3#..ATM;EL31..5F..TBO NO.2	05/1988 - 09/1990	1
88650-16340	EL3#..GX,TX,VC,VL NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88650-16360	EL3#..GX,TX,VC,VL NO.1,ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88650-16370	EL30..GX,TX,VC,VL NO.1,ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 09/1990	1
88650-16350	EL30..GX,TX,VC,VL NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 09/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16270	EL3#..ATM;EL31..5F..TBO NO.2	05/1988 - 09/1990	1
88650-16340	EL3#..GX,TX,VC,VL NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88650-16360	EL3#..GX,TX,VC,VL NO.1,ｸ-ﾗｽｲﾂﾁ=2-BUTTON	05/1988 - 09/1990	1
88650-16370	EL30..GX,TX,VC,VL NO.1,ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 09/1990	1
88650-16350	EL30..GX,TX,VC,VL NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ｸ-ﾗｽｲﾂﾁ=1-BUTTON	05/1988 - 09/1990	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16260	EL30..GX,TX,VC,VL NO.1	05/1988 - 09/1990	1
88688-16280	EL30..3FC..(GX,TX,VC,VL) NO.2	05/1988 - 09/1990	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16260	EL30..GX,TX,VC,VL NO.1	05/1988 - 09/1990	1
88688-16280	EL30..3FC..(GX,TX,VC,VL) NO.2	05/1988 - 09/1990	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16260	EL30..GX,TX,VC,VL NO.1	05/1988 - 09/1990	1
88688-16280	EL30..3FC..(GX,TX,VC,VL) NO.2	05/1988 - 09/1990	1
88891 - PACKING (FOR COOLER)
88578-10090	EL30..GX,TX,VC,VL NO.1	05/1988 - 09/1990	1
88578-16110	EL30..3FC..(GX,TX,VC,VL) NO.2	05/1988 - 09/1990	1
88891 - PACKING (FOR COOLER)
88578-10090	EL30..GX,TX,VC,VL NO.1	05/1988 - 09/1990	1
88578-16110	EL30..3FC..(GX,TX,VC,VL) NO.2	05/1988 - 09/1990	1
Common parts
88569-16030
88569-16040
88569-17070
88569-17090
88569-22190
90099-00906
90480-24008
90480-26022
93540-14012

EL30-LHHNS (1988)

ILLUST NO. 1 OF 2(8805-8807)EL3# ; (8805- )NL30 ; (8807- )CBR,TBO

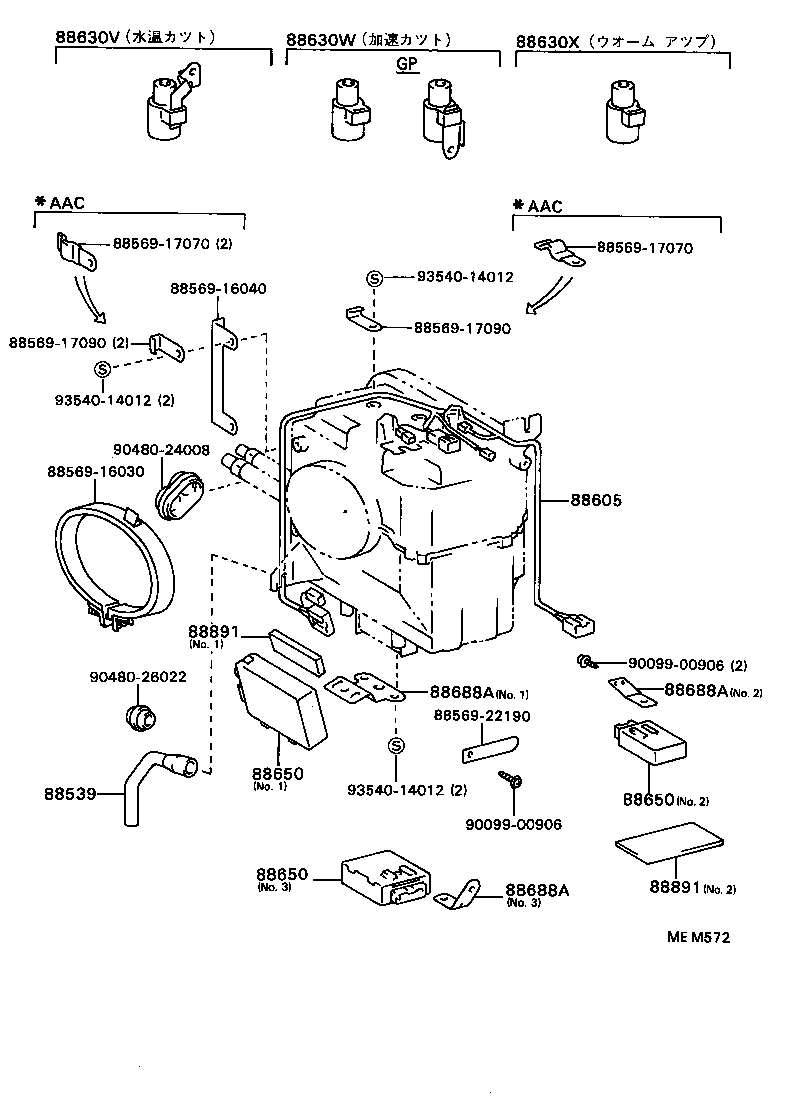

ILLUST NO. 2 OF 2(8805- )EL3#
