EL30-LHHNS (1988)
Toyota Corsa/Tercel

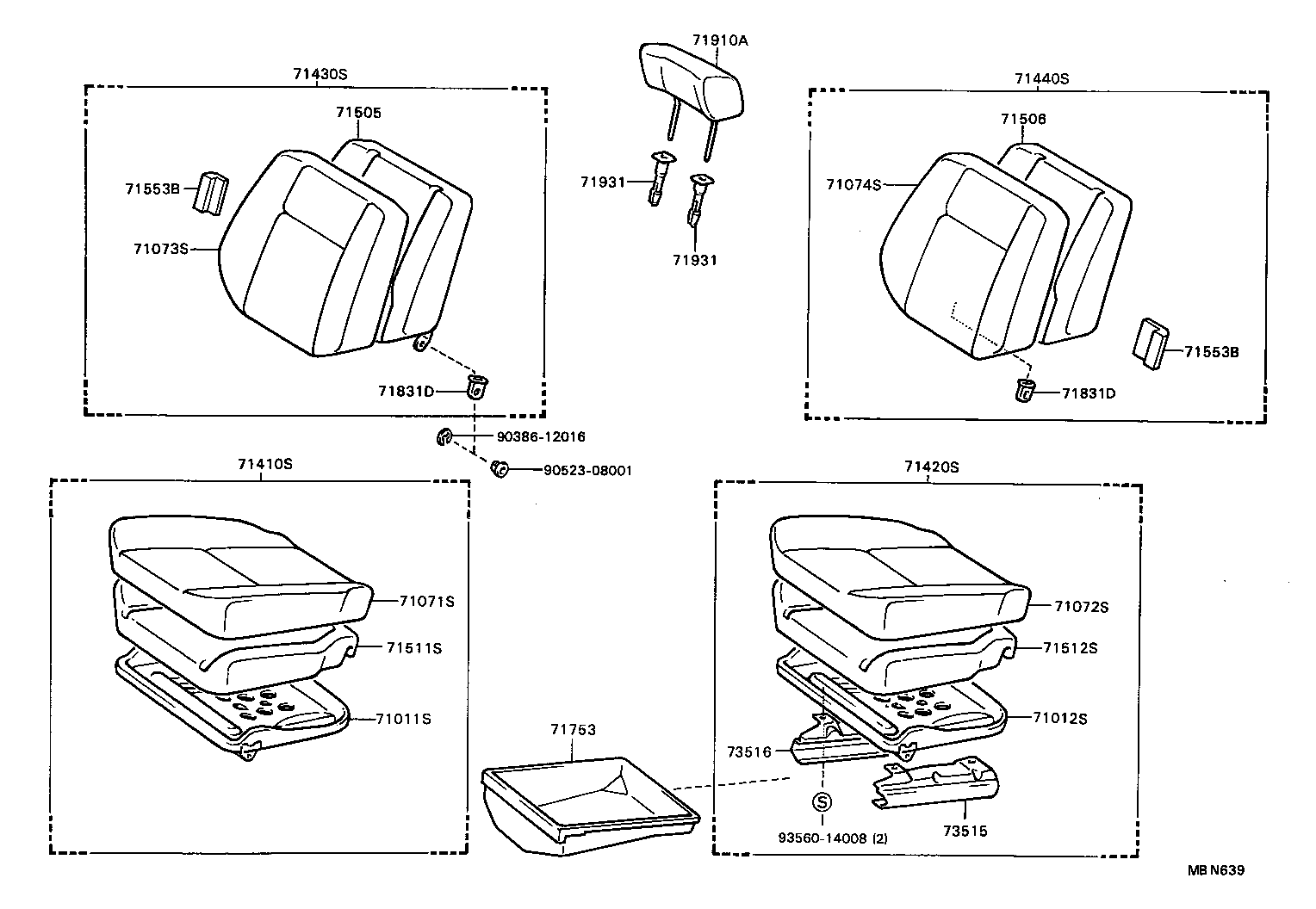

ILLUST NO. 1 OF 2(8805- )CBR,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12190 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12190 |
EL3#,NL30..CBR,TD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1657104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71071-1657103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1657104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71071-1657103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1665103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71073-1665104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1645104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71074-1645103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1661104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71410-1661103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1661104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71410-1661103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1667103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71430-1667104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1642103 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
1 | ||
| 71440-1642104 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16020 |
EL3#,NL30..CBR,TD |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-16020 |
EL3#,NL30..CBR,TD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16100 |
EL3#,NL30..CBR,TD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16100 |
EL3#,NL30..CBR,TD |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16030 |
EL3#,NL30..CBR,TD |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16030 |
EL3#,NL30..CBR,TD |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EL3#,NL30..CBR,TD |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EL3#,NL30..CBR,TD |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1630004 |
EL3#,NL30..GX,VL BLUE,TRIM8# |
2 | ||
| 71910-1630003 |
EL3#,NL30..GX,VL GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1601104 |
EL3#,NL30 ﾛｯｸ無,BLUE,TRIM8# |
4 | ||
| 71931-1601101 |
EL3#,NL30 ﾛｯｸ無,BLACK,TRIM2# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1601104 |
EL3#,NL30 ﾛｯｸ無,BLUE,TRIM8# |
4 | ||
| 71931-1601101 |
EL3#,NL30 ﾛｯｸ無,BLACK,TRIM2# |
4 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
| 93560-14008 | ||||

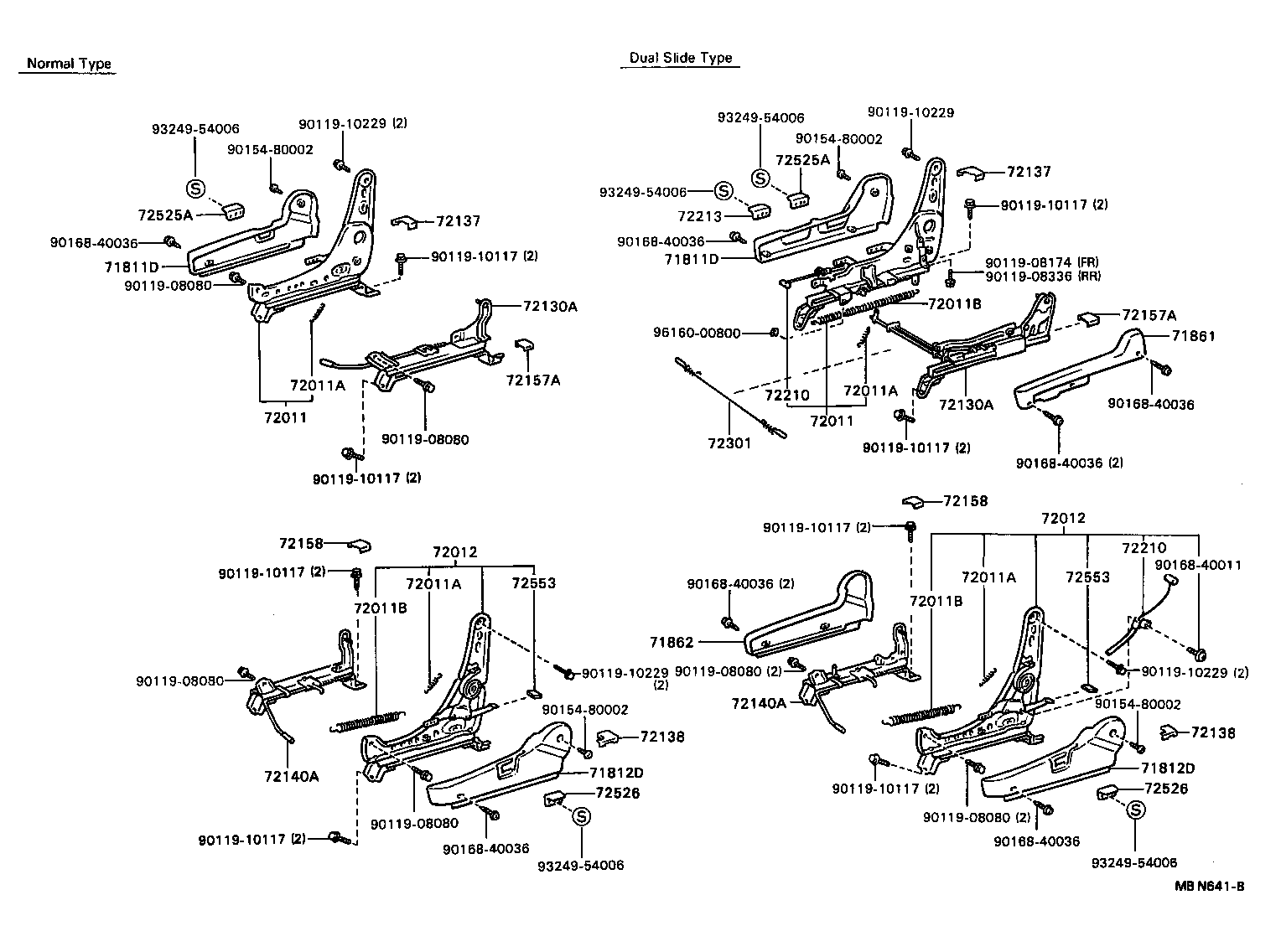

ILLUST NO. 2 OF 2(8805- )CBR,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1608004 |
EL3#,NL30..GX,TX,UX,VC,VL,VU BLUE,TRIM8# |
1 | ||
| 71811-1608001 |
EL3#,NL30..GX,TX,UX,VC,VL,VU BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1608004 |
EL3#,NL30..GX,TX,UX,VC,VL,VU BLUE,TRIM8# |
1 | ||
| 71811-1608001 |
EL3#,NL30..GX,TX,UX,VC,VL,VU BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1605001 |
NL30..5DS..(GX,VL);EL30,NL30..EX,TX,VC,VX;EL3#..5DS..(CUT,EX,GX,SOP,VL,VX) BLACK,TRIM2# |
1 | ||
| 71812-1605004 |
NL30..5DS..(GX,VL);EL30,NL30..EX,TX,VC,VX;EL3#..5DS..(CUT,EX,GX,SOP,VL,VX) BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1605001 |
NL30..5DS..(GX,VL);EL30,NL30..EX,TX,VC,VX;EL3#..5DS..(CUT,EX,GX,SOP,VL,VX) BLACK,TRIM2# |
1 | ||
| 71812-1605004 |
NL30..5DS..(GX,VL);EL30,NL30..EX,TX,VC,VX;EL3#..5DS..(CUT,EX,GX,SOP,VL,VX) BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16150 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16150 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CBR,TD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CBR,TD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CBR,TD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EL3#,NL30..CBR,TD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16140 |
NL30..5DS..(GX,VL);EL30,NL30..EX,TX,VC,VX;EL3#..5DS..(CUT,EX,GX,SOP,VL,VX) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16140 |
NL30..5DS..(GX,VL);EL30,NL30..EX,TX,VC,VX;EL3#..5DS..(CUT,EX,GX,SOP,VL,VX) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16100 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16100 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL3#,NL30 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL3#,NL30 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL3#,NL30 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL3#,NL30 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16090 |
EL30,NL30..TX,VC;EL3#,NL30..5DS..(GX,VL) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16090 |
EL30,NL30..TX,VC;EL3#,NL30..5DS..(GX,VL) |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16030 |
EL3#,NL30 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16030 |
EL3#,NL30 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16030 |
EL3#,NL30 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16030 |
EL3#,NL30 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209024 |
EL3#,NL30 DEEP BLUE,TRIM8# |
1 | ||
| 72525-12090C0 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 72525-1209011 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209024 |
EL3#,NL30 DEEP BLUE,TRIM8# |
1 | ||
| 72525-12090C0 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 72525-1209011 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203024 |
EL3#,NL30 DEEP BLUE,TRIM8# |
1 | ||
| 72526-1203011 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203024 |
EL3#,NL30 DEEP BLUE,TRIM8# |
1 | ||
| 72526-1203011 |
EL3#,NL30 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08174 | ||||
| 90119-08336 | ||||
| 90119-10117 | ||||
| 90119-10229 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
