EL30-LHHFS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )

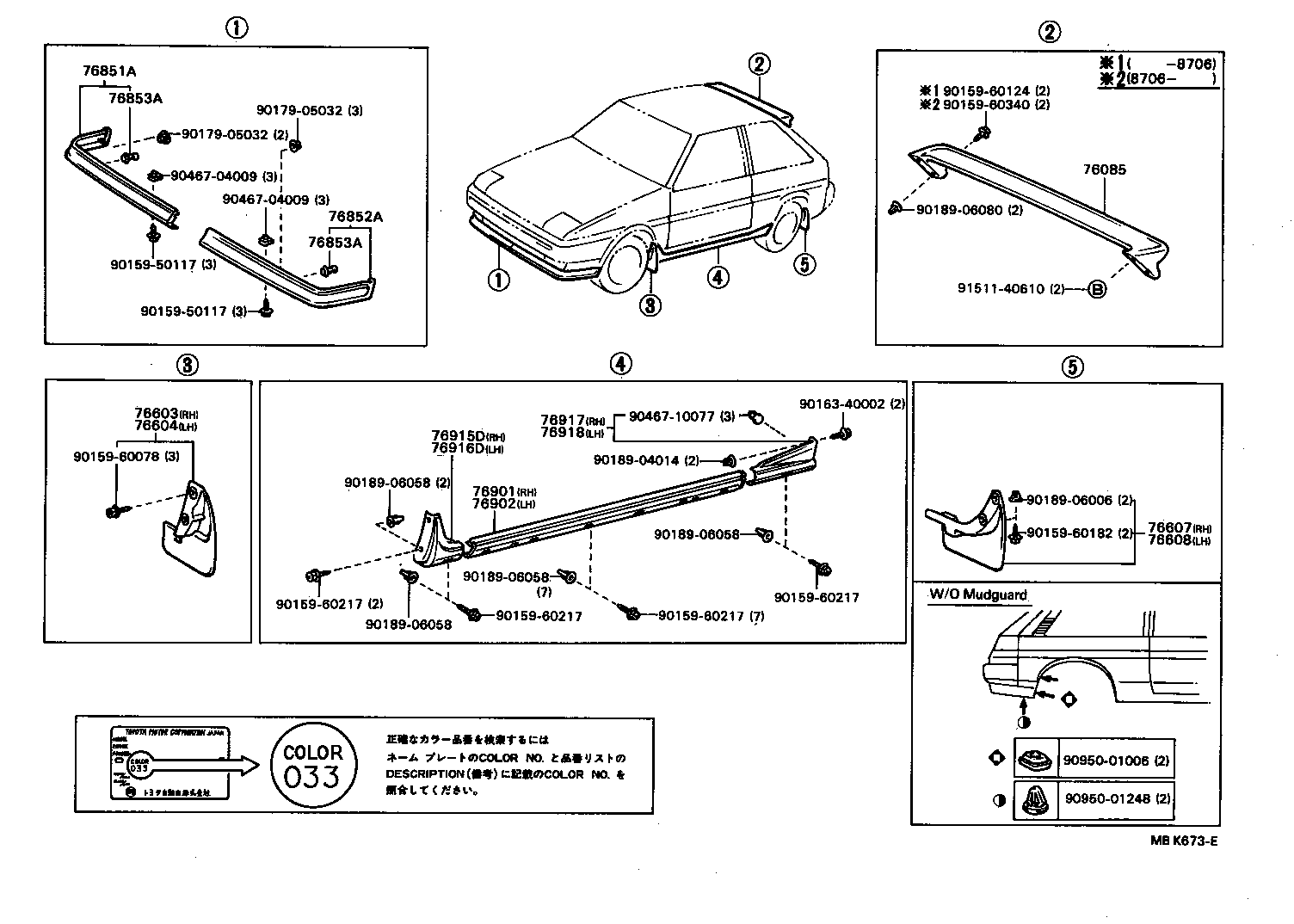

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-19095 |
EL3#..CUT,EX,SOP,SX,VS,VX BLACK |
1 | ||
| 76621-19095 |
EL3#,NL30 BLACK |
1 | ||
| 76621-19105 |
EL30..CUT,SOP *ACW,*SOS,WHITE(041) |
1 | ||
| 76621-19115 |
EL30..CUT,SOP *ACU,*SOS,RED(3E6) |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-19095 |
EL3#,NL30 BLACK |
1 | ||
| 76622-19105 |
EL30..CUT,SOP *ACU,*SOS,WHITE(041) |
1 | ||
| 76622-19095 |
EL3#..CUT,EX,SOP,SX,VS,VX BLACK |
1 | ||
| 76622-19115 |
EL30..CUT,SOP *ACU,*SOS,RED(3E6) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-19135 |
EL3#,NL30 BLACK |
1 | ||
| 76625-19145 |
EL30..CUT,SOP *ACU,*SOS,WHITE(041) |
1 | ||
| 76625-19155 |
EL30..CUT,SOP *ACU,*SOS,RED(3E6) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-19165 |
EL30..CUT,SOP *ACU,*SOS,RED(3E6) |
1 | ||
| 76626-19145 |
EL3#,NL30 BLACK |
1 | ||
| 76626-19155 |
EL30..CUT,SOP *ACU,*SOS,WHITE(041) |
1 | ||
| Common parts | ||||
| 90159-50117 | ||||
| 90159-60078 | ||||
| 90159-60124 | ||||
| 90159-60182 | ||||
| 90159-60217 | ||||
| 90159-60340 | ||||
| 90163-40002 | ||||
| 90179-05032 | ||||
| 90189-04014 | ||||
| 90189-06006 | ||||
| 90189-06058 | ||||
| 90189-06080 | ||||
| 90467-04009 | ||||
| 90467-10077 | ||||
| 90950-01006 | ||||
| 90950-01248 | ||||
| 91511-40610 | ||||
