Toyota Corsa/tercel EL30 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12060	EL3#,NL30	05/1986 - 05/1988	1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	EL3#,NL30	05/1986 - 05/1988	2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	EL3#,NL30	05/1986 - 05/1988	2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-16160	EL3#,NL30	05/1986 - 05/1988	1
68830 - HINGE ASSY, BACK DOOR, RH
68801-16030	EL3#,NL30	05/1986 - 05/1988	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10010	EL3#,NL30	05/1986 - 09/1986	2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10010	EL3#,NL30	05/1986 - 09/1986	2
68840 - HINGE ASSY, BACK DOOR, LH
68801-16030	EL3#,NL30	05/1986 - 05/1988	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-16010	EL3#,NL30	05/1986 - 05/1988	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-16010	EL3#,NL30	05/1986 - 05/1988	1
68970 - STAY ASSY, BACK DOOR, RH
68950-16180	EL3#,NL30..5DS W/REAR WIPER	05/1986 - 05/1988	1
68980 - STAY ASSY, BACK DOOR
68960-16080	EL3#,NL30..5DS W/REAR WIPER	05/1986 - 05/1988	1
69350 - LOCK ASSY, BACK DOOR
69350-16090	EL3#,NL30	05/1986 - 05/1988	1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-16120	EL3#,NL30 W/BACK DOOR OPENER	05/1986 - 05/1988	1
69430-16130	EL3#,NL30..CUT,GX,SOP,TX,VC,VL	05/1986 - 05/1988	1
Common parts
90119-06029
90119-06316
90159-80019
90179-08096
90467-09043
90467-10073
91651-40612
91651-40816

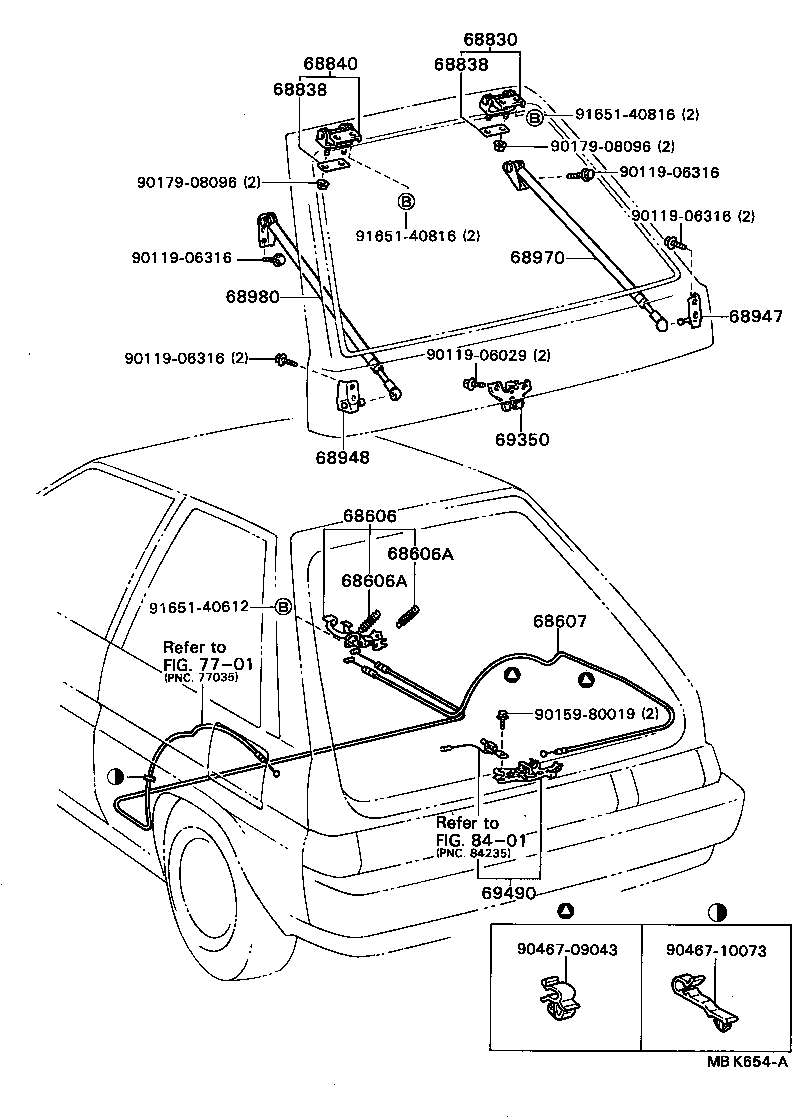

Linked diagrams
7701
8401

EL30-LHHFS (1986)
