EL30-LHHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

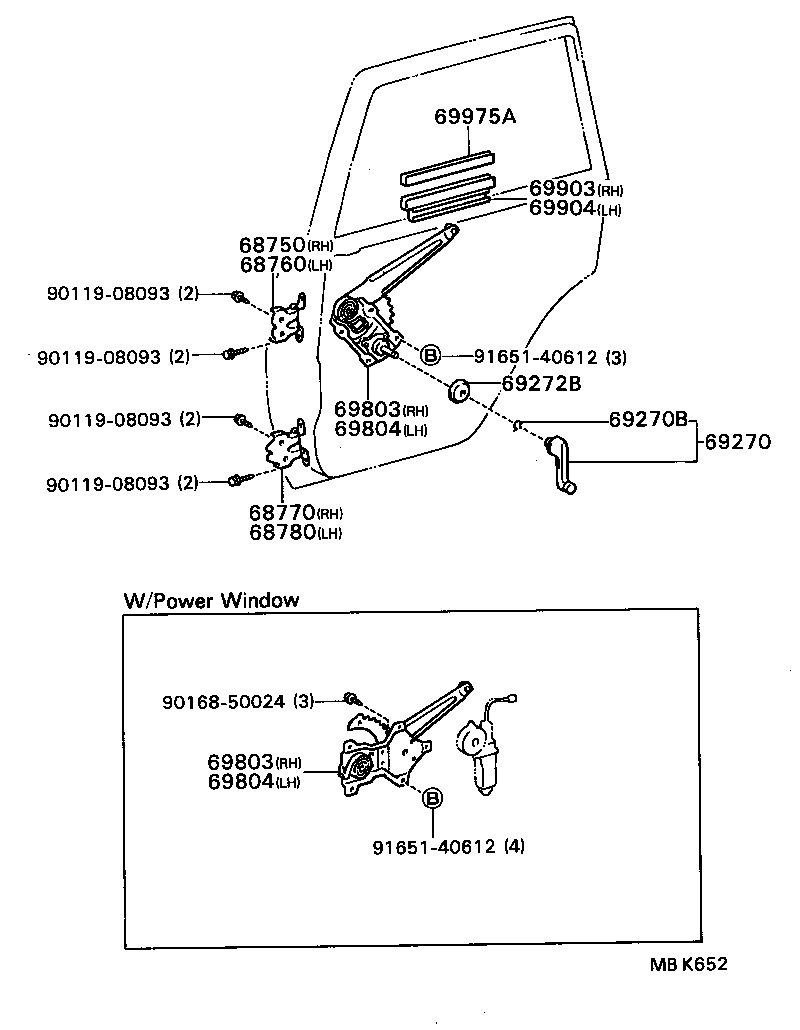

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 69903 69904 69975A 9011908093 9011908093 9011908093 9011908093 9016850024 9165140612 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-16010

EL3#,NL30..5DS

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-16010

EL3#,NL30..5DS

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-16010

EL3#,NL30..5DS

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-16010

EL3#,NL30..5DS

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1004050

EL3#,NL30..5DS

BLUE,BLUE,TRIM8#

 2
69260-1004011

EL3#,NL30..5DS

BLACK,NEW BLACK,TRIM2#

 2
69260-1004055

EL3#,NL30..5DS

BEIGE,DARK BEIGE,TRIM4#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

EL3#,NL30..5DS

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-16010

EL3#,NL30..5DS

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-16030

EL3#,NL30..5DS

 1
69803-16010

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-16030

EL3#,NL30..5DS

 1
69803-16010

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-16030

EL3#,NL30..5DS

 1
69804-16010

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-16030

EL3#,NL30..5DS

 1
69804-16010

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-16030

EL3#,NL30..5DS

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-16030

EL3#,NL30..5DS

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-16010

EL3#,NL30..5DS

 2
Common parts
90119-08093
90168-50024
91651-40612
