EL30-LHHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

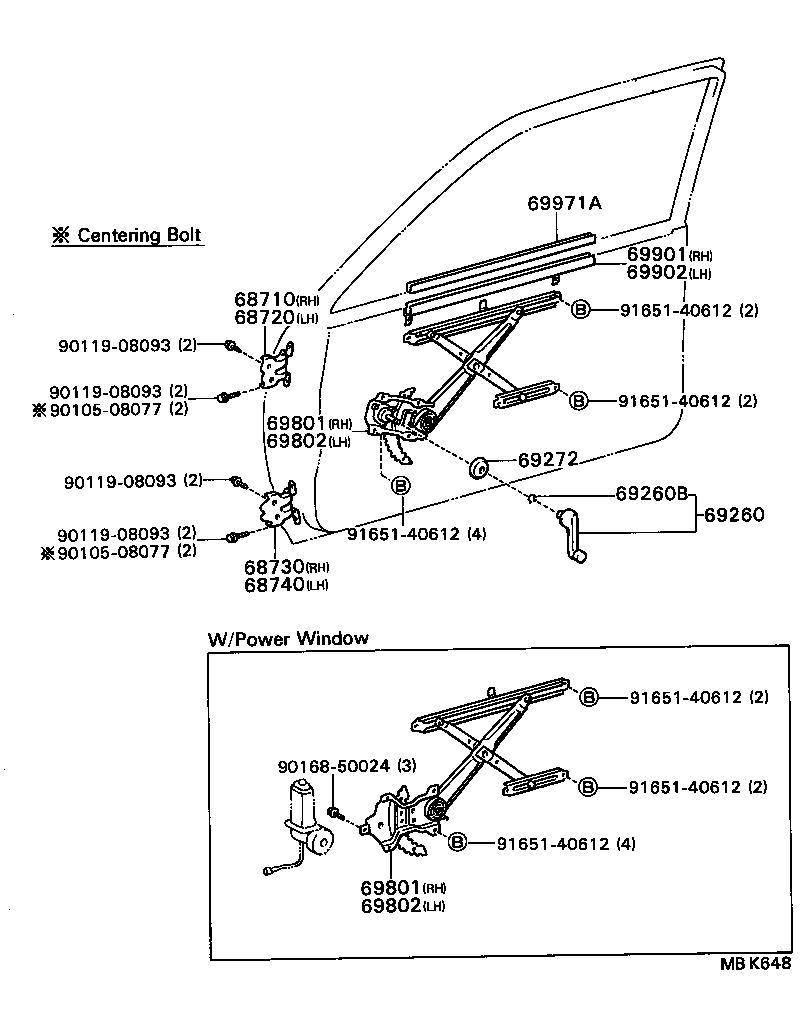

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 9010508077 9010508077 9011908093 9011908093 9011908093 9011908093 9016850024 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-16010

EL3#,NL30

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-16010

EL3#,NL30

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-16010

EL3#,NL30

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-16010

EL3#,NL30

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004011

EL3#,NL30

BLACK,NEW BLACK,TRIM2#

 2
69260-1004050

EL3#,NL30

BLUE,BLUE,TRIM8#

 2
69260-1004055

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

BEIGE,DARK BEIGE,TRIM4#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

EL3#,NL30

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-16010

EL3#,NL30

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-16020

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69810-16050

EL3#,NL30..5DS

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-16020

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69810-16050

EL3#,NL30..5DS

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-16050

EL3#,NL30..5DS

 1
69802-16020

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-16050

EL3#,NL30..5DS

 1
69802-16020

EL30..5DS..(CUT,SOP)

*SOM,*CE,*ACU,*SOS,W/*PW

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-16030

EL3#,NL30..5DS

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-16030

EL3#,NL30..5DS

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-22010

EL3#,NL30..5DS

 2
Common parts
90105-08077
90119-08093
90168-50024
91651-40612
