EL30-LHHFS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )ATM

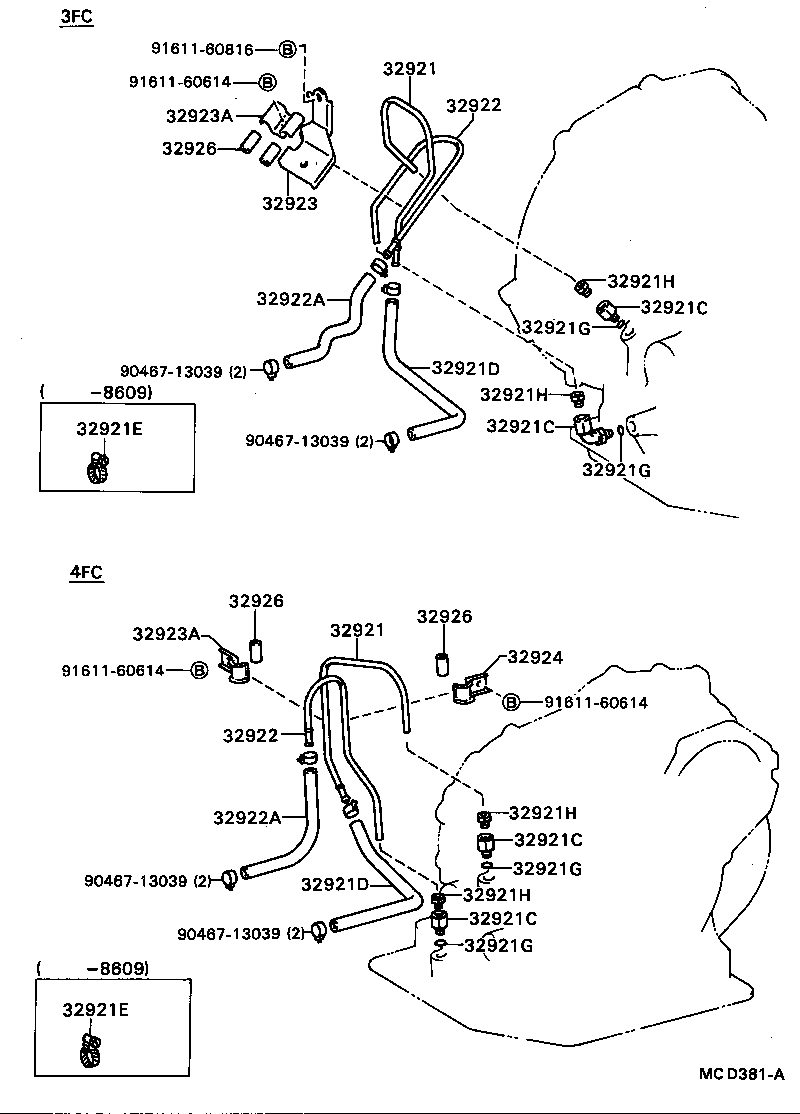

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-10041 |
EL3#..3FC |
1 | ||
| 32921-10040 |
EL3#..3FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-10041 |
EL3#..3FC |
1 | ||
| 32921-10040 |
EL3#..3FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
EL3#..3FC INLET |
1 | ||
| 90407-14003 |
EL3#..3FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
EL3#..3FC INLET |
1 | ||
| 90407-14003 |
EL3#..3FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
EL3#..3FC INLET |
1 | ||
| 90407-14003 |
EL3#..3FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
EL3#..3FC INLET |
1 | ||
| 90407-14003 |
EL3#..3FC OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15014 |
EL3#..3FC |
1 | ||
| 90445-16019 |
EL3#..3FC |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15014 |
EL3#..3FC |
1 | ||
| 90445-16019 |
EL3#..3FC |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-18002 |
EL3#..ATM |
4 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-18002 |
EL3#..ATM |
4 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
EL3#,NL30..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
EL3#,NL30..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
EL3#,NL30..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
EL3#,NL30..ATM |
2 | ||
| 32921H - NUT, FLARE(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
EL3#..3FC |
2 | ||
| 32921H - NUT, FLARE(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
EL3#..3FC |
2 | ||
| 32921H - NUT, FLARE(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
EL3#..3FC |
2 | ||
| 32921H - NUT, FLARE(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
EL3#..3FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-16030 |
EL3#..3FC |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-16030 |
EL3#..3FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-16017 |
EL3#..3FC |
1 | ||
| 90445-15032 |
EL3#..3FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-16017 |
EL3#..3FC |
1 | ||
| 90445-15032 |
EL3#..3FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-10040 |
EL3#..3FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12085 |
EL3#..3FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12085 |
EL3#..3FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
EL3#,NL30..ATM 長さ=25,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
EL3#,NL30..ATM 長さ=25,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
EL3#,NL30..ATM 長さ=25,内径=8 |
2 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
