EL30-LHHFS (1986)
Toyota Corsa/Tercel

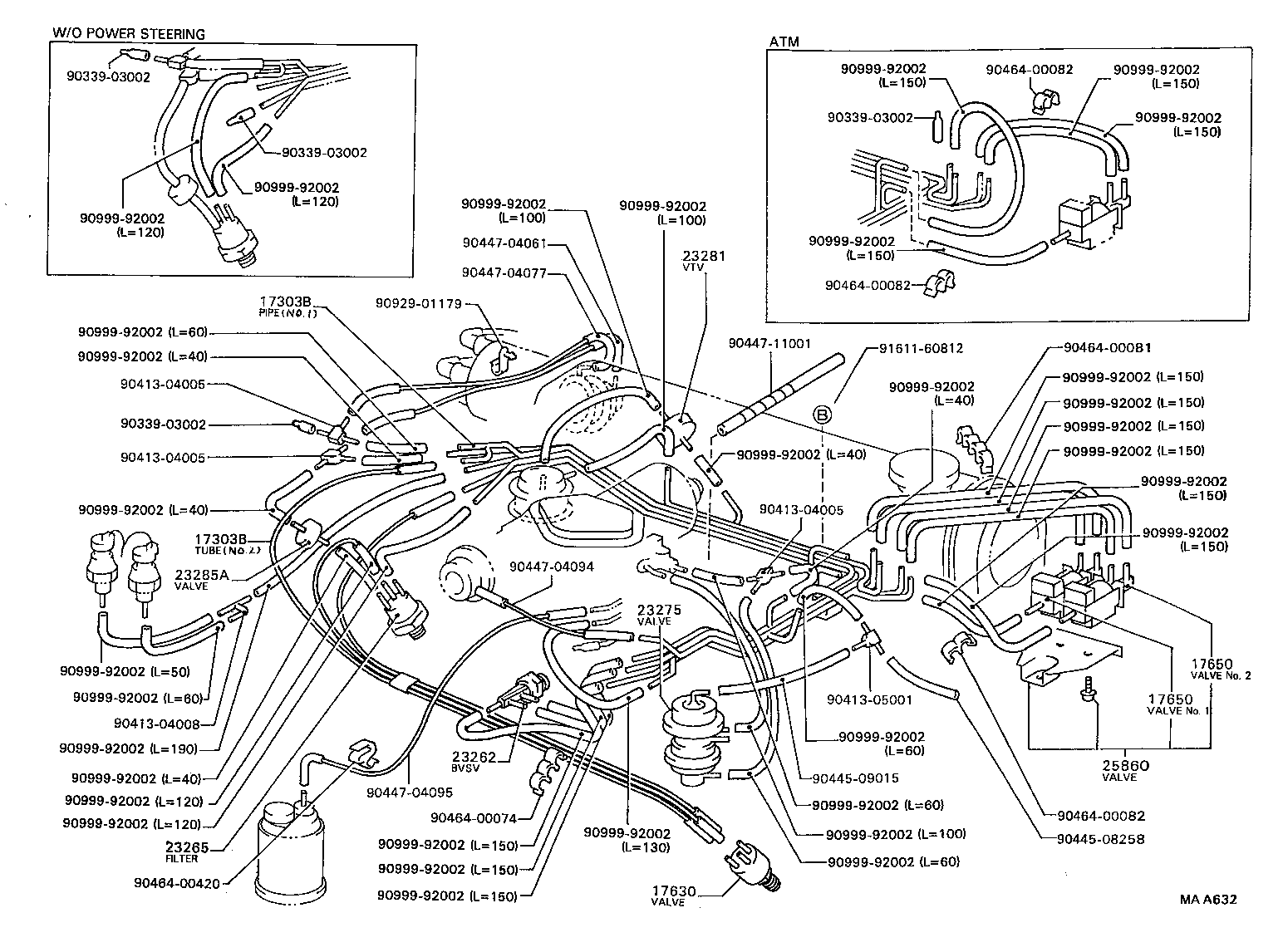

ILLUST NO. 1 OF 2(8605-8706)2E,3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11170 |
2E..EL30 NO.2(W/POWER STEERING) |
1 | ||
| 17303-11140 |
2E,3E..EL3# NO.1 |
1 | ||
| 17303-11240 |
2E,3E..EL3# NO.2 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
2E..EL30..CUT,SOP |
1 | ||
| 17630-15021 |
2E..EL30..CUT,SOP |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12042 |
2E,3E..EL3#..ATM DENSO |
1 | ||
| 90910-12009 |
2E,3E..EL3#..ATM AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12042 |
2E,3E..EL3#..ATM DENSO |
1 | ||
| 90910-12009 |
2E,3E..EL3#..ATM AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-24010 |
2E..EL30 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EL30 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03171 |
2E,3E..EL3# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01099 |
2E,3E..EL3# |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
2E..EL30..3FC W/POWER STEERING |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E,3E..EL3# |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11060 |
2E,3E..EL3#..ATM |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90413-05001 | ||||
| 90445-08251 | ||||
| 90445-08258 | ||||
| 90445-09015 | ||||
| 90447-04061 | ||||
| 90447-04077 | ||||
| 90447-04094 | ||||
| 90447-04095 | ||||
| 90447-11001 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00420 | ||||
| 90929-01086 | ||||
| 90929-01179 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 95413-49936 | ||||

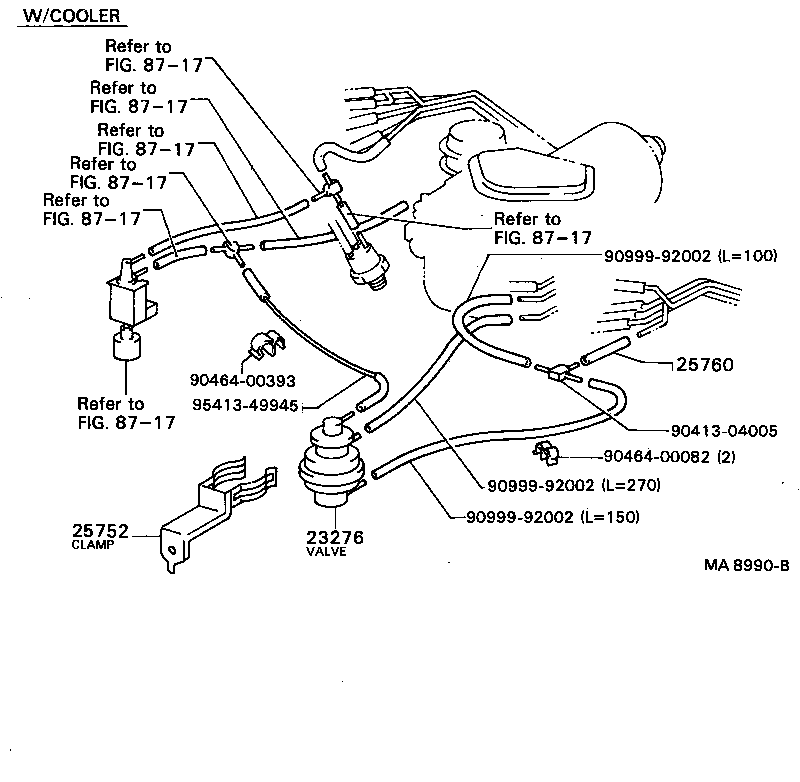

ILLUST NO. 2 OF 2(8605- )2E,3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03173 |
2E,3E..EL3#..ATM W/COOLER |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-11030 |
2E,3E..EL3# W/COOLER |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 90999-92002 |
2E,3E..EL3# W/COOLER |
1 | ||
| 90445-08243 |
2E,3E..EL3# W/COOLER |
1 | ||
| 95411-19930 |
2E,3E..EL3# W/COOLER |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00393 | ||||
| 90999-92002 | ||||
| 95413-49945 | ||||
| Linked diagrams | ||||
| 8717 | ||||
(8605- )2E,3E#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

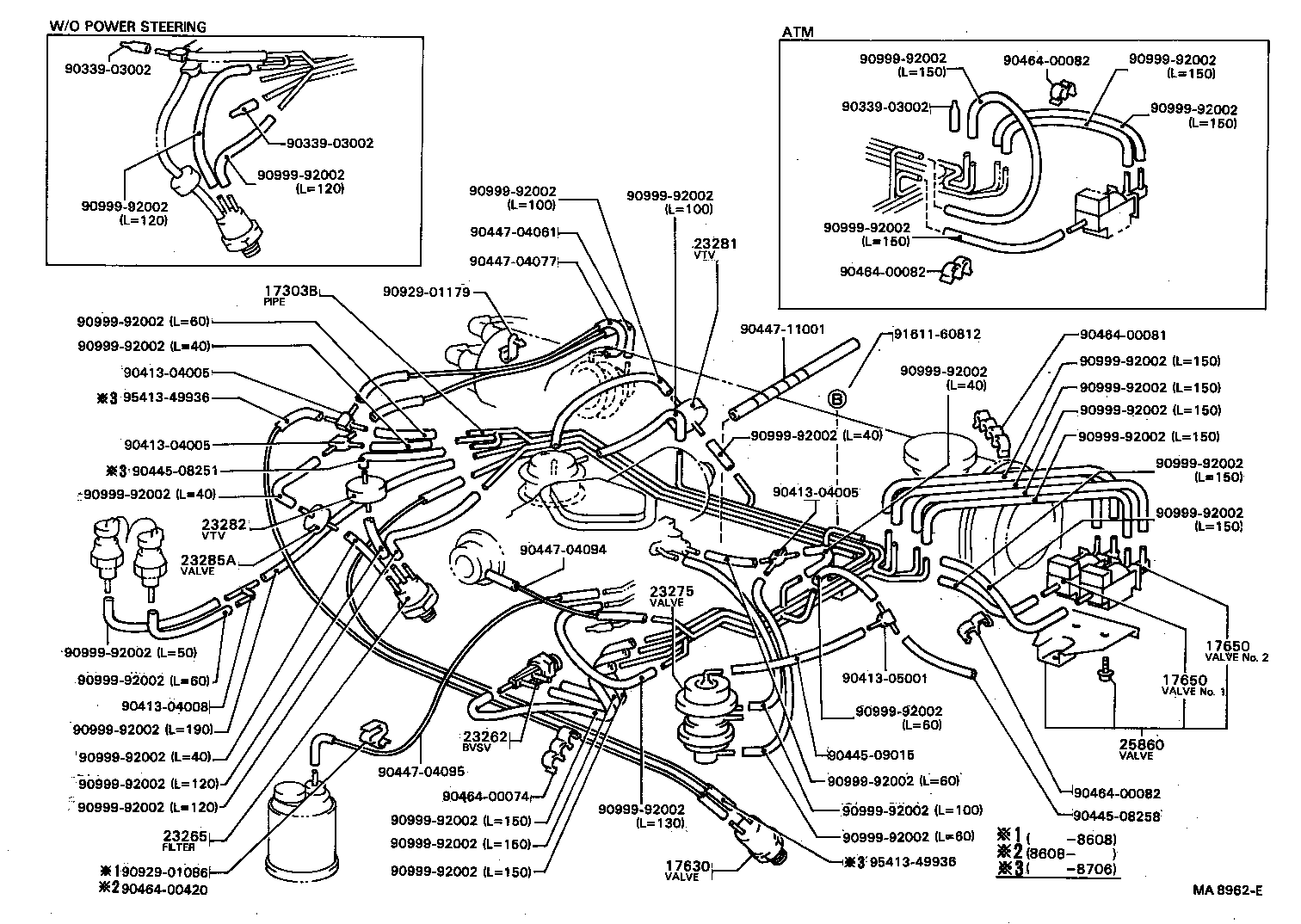

ILLUST NO. 1 OF 2(8706- )2E,3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11170 |
2E..EL30 NO.2(W/POWER STEERING) |
1 | ||
| 17303-11140 |
2E,3E..EL3# NO.1 |
1 | ||
| 17303-11240 |
2E,3E..EL3# NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11170 |
2E..EL30 NO.2(W/POWER STEERING) |
1 | ||
| 17303-11140 |
2E,3E..EL3# NO.1 |
1 | ||
| 17303-11240 |
2E,3E..EL3# NO.2 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
2E..EL30..CUT,SOP |
1 | ||
| 17630-15021 |
2E..EL30..CUT,SOP |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12042 |
2E,3E..EL3#..ATM DENSO |
1 | ||
| 90910-12009 |
2E,3E..EL3#..ATM AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12042 |
2E,3E..EL3#..ATM DENSO |
1 | ||
| 90910-12009 |
2E,3E..EL3#..ATM AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-24010 |
2E..EL30 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EL30 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03171 |
2E,3E..EL3# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01099 |
2E,3E..EL3# |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E,3E..EL3# |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11060 |
2E,3E..EL3#..ATM |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90413-05001 | ||||
| 90445-08258 | ||||
| 90445-09015 | ||||
| 90447-04061 | ||||
| 90447-04077 | ||||
| 90447-04094 | ||||
| 90447-04095 | ||||
| 90447-11001 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00420 | ||||
| 90929-01179 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
