EL30-LHHDS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

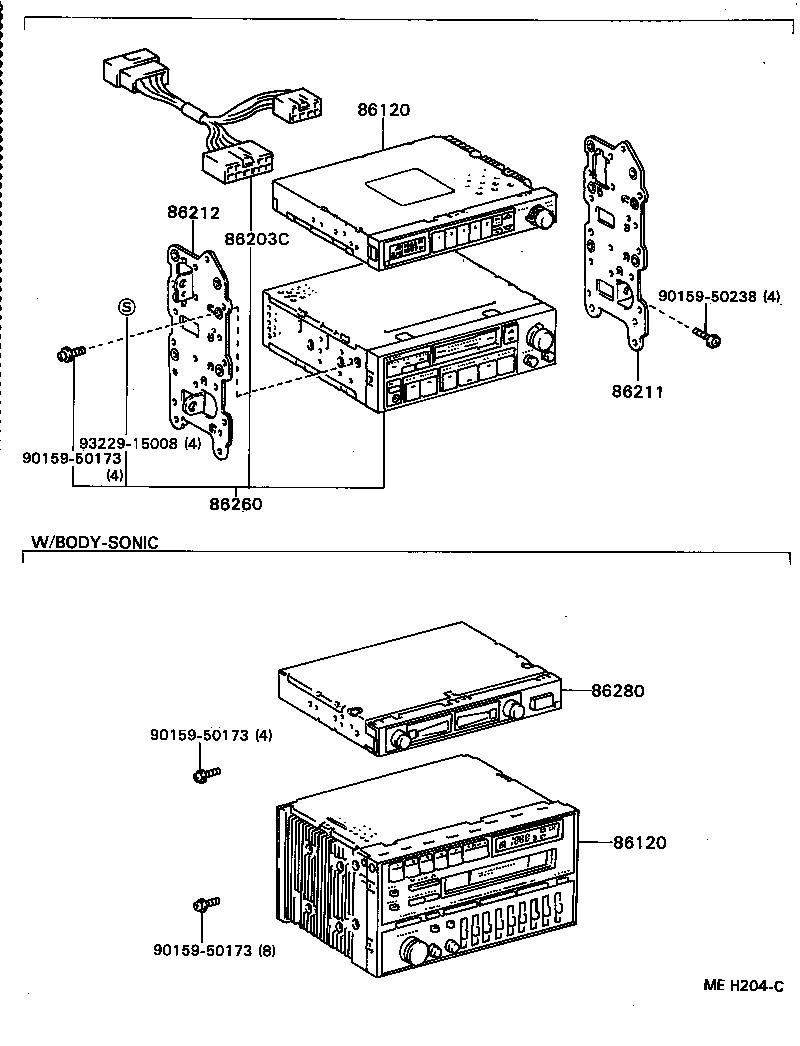

ILLUST NO. 1 OF 2(8605- )

Click highlighted areas on diagram

diagram 86120 86120 86203C 86211 86212 86260 86280 9015950173 9015950173 9015950173 9015950238 9322915008
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-16290

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

FUJITSU TEN,ID=10201,AM/FM

 1
86120-16230

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

FUJITSU TEN,AM

 1
86120 - RECEIVER ASSY, RADIO
86120-16290

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

FUJITSU TEN,ID=10201,AM/FM

 1
86120-16230

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

FUJITSU TEN,AM

 1
86203C - WIRE, TAPE PLAYER
86203-16110

EL3#,NL30

HIGH POWER

 1
86211 - BRACKET, RADIO, NO.1
86211-16180

EL3#,NL30

 1
86212 - BRACKET, RADIO, NO.2
86212-16180

EL3#,NL30

 1
86260 - TAPE PLAYER ASSY
86260-19165

EL3#,NL30

MATSUSHITA,HIGH W/EQUALIZER

 1
86260-19135

EL3#,NL30

TEN,HIGH POWER W/EQUALIZER

 1
86260-19125

EL3#,NL30

TEN,HIGH POWER

 1
86260-19155

EL3#,NL30

MATSUSHITA,HIGH POWER

 1
86260-19175

EL3#,NL30

MATSUSHITA,AUTO REVERSE,W/FM

 1
86260-19145

EL3#,NL30

MATSUSHITA,AUTO REVERSE

 1
86260-19105

EL3#,NL30

TEN,AUTO REVERSE

 1
86260-19115

EL3#,NL30

TEN,AUTO REVERSE W/FM

 1
Common parts
90159-50173
90159-50238
93229-15008

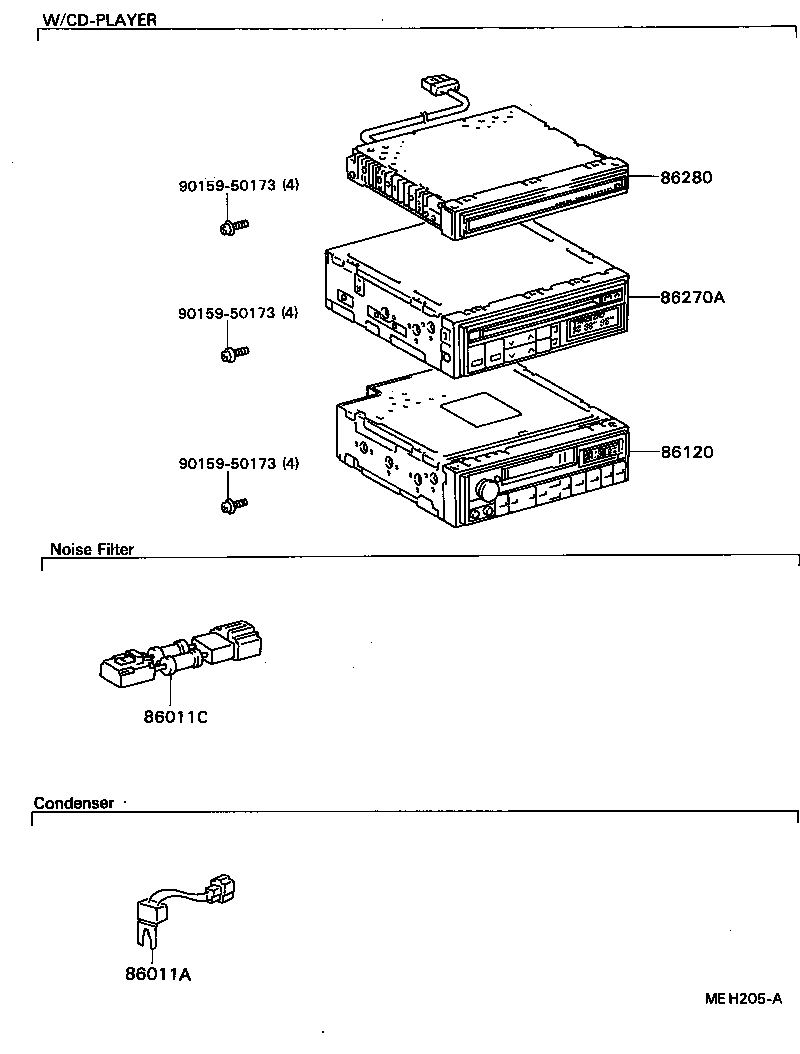

ILLUST NO. 2 OF 2(8605- )

Click highlighted areas on diagram

diagram 86011A 86011C 86120 86270A 86280 9015950173 9015950173 9015950173
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05049

EL3#,NL30

 1
86120 - RECEIVER ASSY, RADIO
86120-16290

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

FUJITSU TEN,ID=10201,AM/FM

 1
86120-16230

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

FUJITSU TEN,AM

 1
Common parts
90159-50173
