EL30-LGKNS (1988)
Toyota Corsa/Tercel

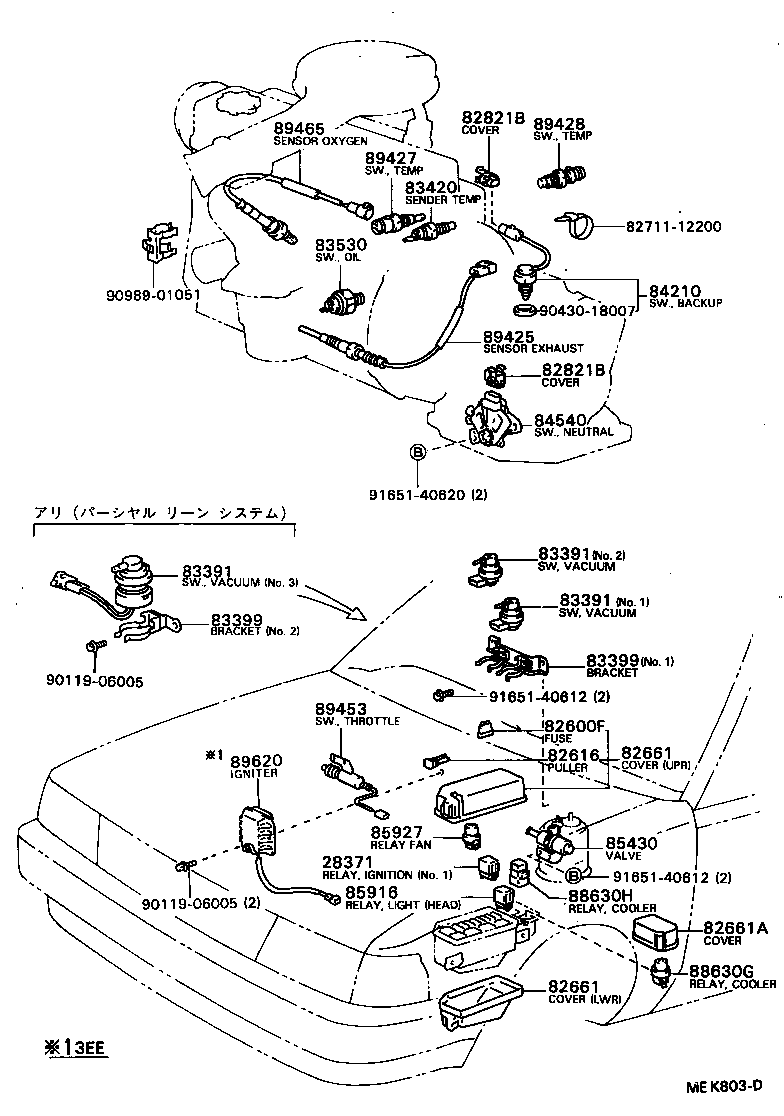

ILLUST NO. 1 OF 6(8805- )CBR,EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2E,3E#..EL3#;1NT..NL30..5F NO.1 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
EL3# 7.5A |
2 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
4 | ||
| 90982-09005 |
EL3#;NL30..4FC 7.5A |
2 | ||
| 90982-09003 |
EL3#,NL30 15A |
1 | ||
| 90982-09002 |
EL3#,NL30 10A |
1 | ||
| 90982-09004 |
EL3#,NL30 20A,黄 |
1 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
1 | ||
| 90982-09003 |
EL3#,NL30 15A |
4 | ||
| 90982-07011 |
EL3#,NL30 30A,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EL3#,NL30 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16140 |
EL3#..CBR 上側 |
1 | ||
| 82661-16200 |
EL3#,NL30 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16140 |
EL3#..CBR 上側 |
1 | ||
| 82661-16200 |
EL3#,NL30 下側 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-16190 |
EL30..GX,TX,VC,VL |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-12250 |
EL3#,NL30..MTM BACK UP LAMP SW. |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-12250 |
EL3#,NL30..MTM BACK UP LAMP SW. |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-10070 |
EL3#..MTM..CBR NO.1 |
1 | ||
| 83391-12240 |
EL3#..CBR NO.2 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-10070 |
EL3#..MTM..CBR NO.1 |
1 | ||
| 83391-12240 |
EL3#..CBR NO.2 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-10070 |
EL3#..MTM..CBR NO.1 |
1 | ||
| 83391-12240 |
EL3#..CBR NO.2 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-16090 |
EL3#..MTM..CBR NO.1 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-16090 |
EL3#..MTM..CBR NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EL3#,NL30 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EL3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
EL3#,NL30..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09039 |
EL3#..CBR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EL3#,NL30 TAIL LAMP |
1 | ||
| 90987-02006 |
EL3#,NL30 HEAD LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EL3#..CBR,EFI;EL31..5F..TBO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EL30..GX,TX,VC,VL |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-16090 |
EL30..GX,TX,VC,VL |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12250 |
EL30 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EL3#..CBR,EFI AISIN |
1 | ||
| 89428-10110 |
EL3#..CBR,EFI NIPPONDENSO |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-16010 |
EL3#..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10010 |
EL3# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06005 | ||||
| 90430-18007 | ||||
| 90989-01051 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
ILLUST NO. 3 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19815 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-16070 |
EL3#,NL30 東海理化 |
1 | ||
| 84140-16090 |
EL3#,NL30 MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16350 |
EL30 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EL3#,NL30 MATSUSHITA |
1 | ||
| 84312-32010 |
EL3#,NL30 東海理化 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EL3#,NL30 |
1 | ||
| 84450-16060 |
EL3#,NL30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16230 |
EL30 東海理化 |
1 | ||
| 84652-16300 |
EL30 MATSUSHITA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12120 |
EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16061 |
EL30 |
1 | ||
| 84660-16062 |
EL30 1-BUTTON,ｱﾘ(*83) |
1 | ||
| 84660-16051 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16070 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EL3#,NL30 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16050 |
NL30;EL3#..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16100 |
EL3#,NL30..GX,TX,VC,VL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16100 |
EL3#,NL30..GX,TX,VC,VL |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-20060 |
EL30..GX,TX,VC,VL 14V 0.08A |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93319-15012 | ||||
ILLUST NO. 4 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
EL3#,NL30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
EL3# 7.5A |
2 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
4 | ||
| 90982-09005 |
EL3#;NL30..4FC 7.5A |
2 | ||
| 90982-09003 |
EL3#,NL30 15A |
1 | ||
| 90982-09002 |
EL3#,NL30 10A |
1 | ||
| 90982-09004 |
EL3#,NL30 20A,黄 |
1 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
1 | ||
| 90982-09003 |
EL3#,NL30 15A |
4 | ||
| 90982-07011 |
EL3#,NL30 30A,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
EL3# 7.5A |
2 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
4 | ||
| 90982-09005 |
EL3#;NL30..4FC 7.5A |
2 | ||
| 90982-09003 |
EL3#,NL30 15A |
1 | ||
| 90982-09002 |
EL3#,NL30 10A |
1 | ||
| 90982-09004 |
EL3#,NL30 20A,黄 |
1 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
1 | ||
| 90982-09003 |
EL3#,NL30 15A |
4 | ||
| 90982-07011 |
EL3#,NL30 30A,緑 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-16010 |
EL3#,NL30 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EL3#,NL30 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EL3#,NL30 30A |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
EL3#,NL30 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
EL3#,NL30 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
NL30;EL3#..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX MARUKO |
1 | ||
| 90987-02004 |
NL30;EL3#..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EL3#,NL30 TAIL LAMP |
1 | ||
| 90987-02006 |
EL3#,NL30 HEAD LAMP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
EL3#,NL30 MARUKO |
1 | ||
| 90987-02004 |
EL3#,NL30 NIPPONDENSO |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-16040 |
EL3#..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-16280 |
EL30..4F |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
ILLUST NO. 5 OF 6(8805- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80056 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
EL3#,NL30..3DS |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16040 |
EL3#,NL30 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
EL3#,NL30 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16030 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90119-06390 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
ILLUST NO. 6 OF 6(8805- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06002 | ||||
| Linked diagrams | ||||
| 8511 | ||||
