EL30-LGKNS (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

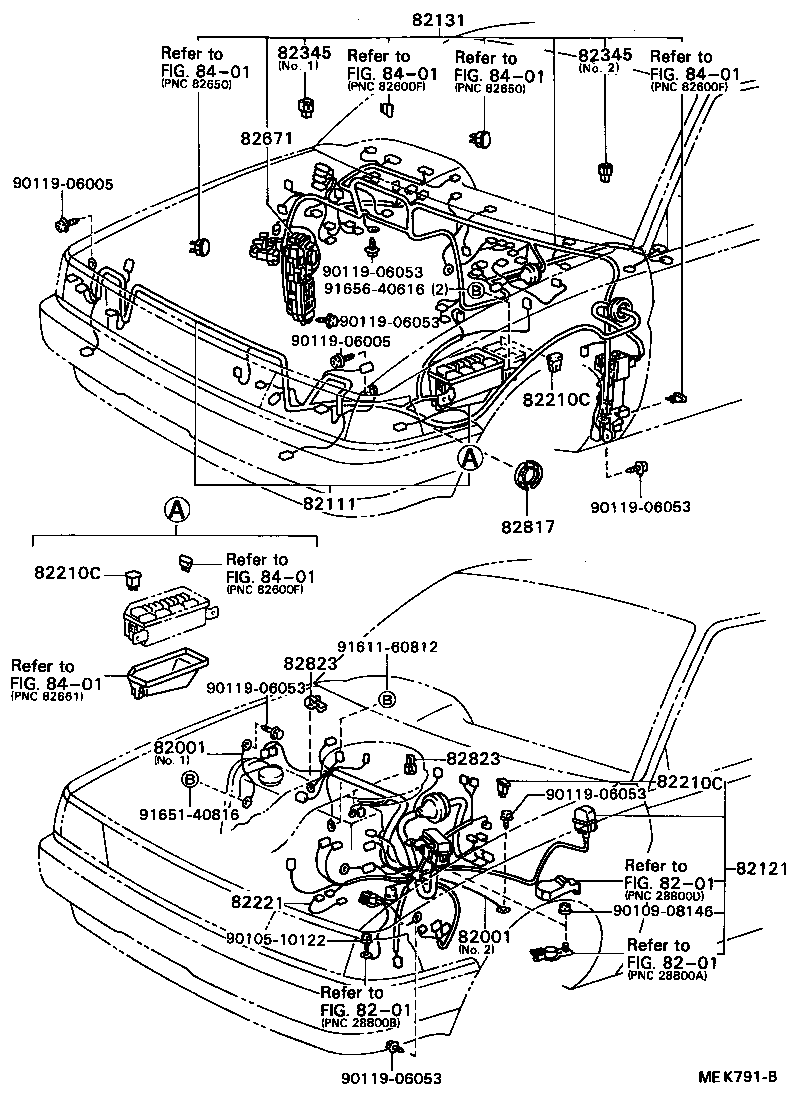

ILLUST NO. 1 OF 3(8805- )CBR,EFI

Click highlighted areas on diagram

diagram 82001 82001 8201 8201 8201 82111 82121 82131 82210C 82210C 82210C 82221 82345 82345 82671 82817 82823 82823 8401 8401 8401 8401 8401 8401 9010510122 9010908146 9011906005 9011906005 9011906053 9011906053 9011906053 9011906053 9011906053 9011906053 9161160812 9165140816 9165640616
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07242

EL3#

NO.2

 1
90980-07282

EL3#

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07242

EL3#

NO.2

 1
90980-07282

EL3#

NO.1

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-16650

EL3#..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
82111-16650

EL3#..CUT,EX,GX,SOP,VL,VX

 1
82121 - WIRE, ENGINE
82121-16340

EL3#..MTM..CBR

 1
82131 - WIRE, COWL
82131-1G190

EL3#..4F..(GX,TX,VC,VL)

 1
82210C - FUSIBLE LINK
90982-08190

EL3#

60A,ﾒｽ端子,黄

 1
90982-08188

EL3#,NL30

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08190

EL3#;NL30..4FC

60A,ﾒｽ端子,黄

 1
82210C - FUSIBLE LINK
90982-08190

EL3#

60A,ﾒｽ端子,黄

 1
90982-08188

EL3#,NL30

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08190

EL3#;NL30..4FC

60A,ﾒｽ端子,黄

 1
82210C - FUSIBLE LINK
90982-08190

EL3#

60A,ﾒｽ端子,黄

 1
90982-08188

EL3#,NL30

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08190

EL3#;NL30..4FC

60A,ﾒｽ端子,黄

 1
82221 - WIRE, OIL PRESSURE SWITCH
82221-16040

EL3#..MTM

 1
82345 - DIODE
82345-32020

EL3#..GX,TX,VC,VL;EL30..3FC..(CUT,SOP)

NO.1,3P CONNECTER

 2
82345-32020

EL3#..GX,TX,VC,VL

NO.1,3P CONNECTER

 2
82345 - DIODE
82345-32020

EL3#..GX,TX,VC,VL;EL30..3FC..(CUT,SOP)

NO.1,3P CONNECTER

 2
82345-32020

EL3#..GX,TX,VC,VL

NO.1,3P CONNECTER

 2
82671 - BLOCK, JUNCTION
82660-12130

EL3#,NL30

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22280

EL3#,NL30

 1
82823 - CAP, TERMINAL, NO.1
82823-20030

EL3#

STARTER

 1
82823-22050

EL3#,NL30

ALTERNATOR

 1
82823-20030

EL3#;NL30..5F

STARTER

 1
82823 - CAP, TERMINAL, NO.1
82823-20030

EL3#

STARTER

 1
82823-22050

EL3#,NL30

ALTERNATOR

 1
82823-20030

EL3#;NL30..5F

STARTER

 1
Common parts
90105-10122
90109-08146
90119-06005
90119-06053
91611-60812
91651-40816
91656-40616
Linked diagrams
8201
8401

(8805- )3DS

Click highlighted areas on diagram

diagram 82151 82152 82161 82167 82171 82184 82185 82187 82817A 82817B 8281916110 9011906049 9011906067 9011906067 9011906067
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-16120

EL30,NL30..3DS

 1
82171 - WIRE, ROOF, NO.1
82171-16060

EL3#,NL30

 1
82184 - WIRE, BACK DOOR, NO.1
82184-16120

EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL)

 1
82184-16120

EL30..3DS..(CUT,GX,SOP,VL);EL31,NL30..3DS..(CBR,EFI,TD)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-16120

EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL)

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-16040

EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL)

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

EL3#,NL30

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-16190

EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL)

 1
Common parts
82819-16110
90119-06049
90119-06067

ILLUST NO. 3 OF 3(8805- )
