EL30-LGKDS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

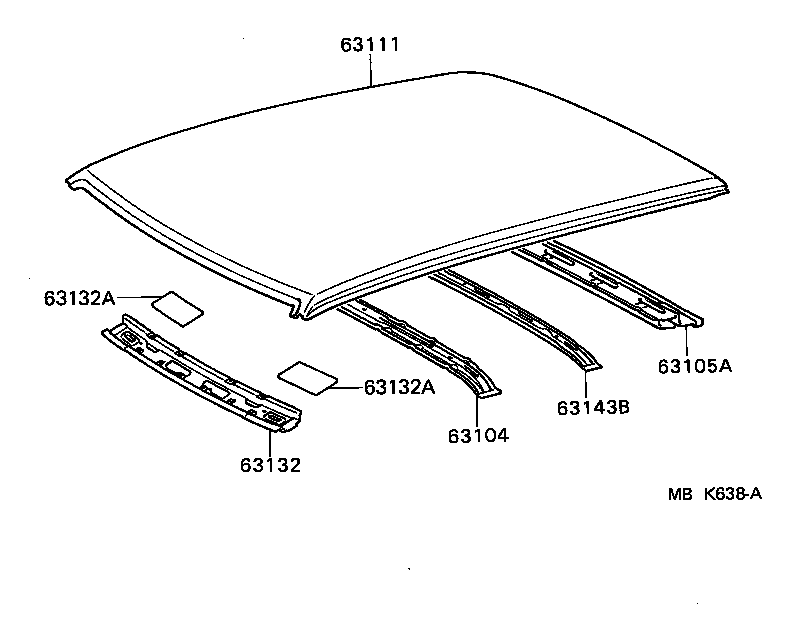

Click highlighted areas on diagram

diagram 63104 63105A 63111 63132 63132A 63132A 63143B
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-16040

EL3#..3DS

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-16030

EL3#..3DS

 1
63105-16060

EL3#..3DS

 1
63111 - PANEL, ROOF
63111-16130

EL3#..3DS

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-16020

EL3#,NL30

 1
63132A - DAMPER, WINDSHIELD HEADER PANEL
63126-16010

EL3#,NL30

 2
63132A - DAMPER, WINDSHIELD HEADER PANEL
63126-16010

EL3#,NL30

 2

(8605- )

Click highlighted areas on diagram

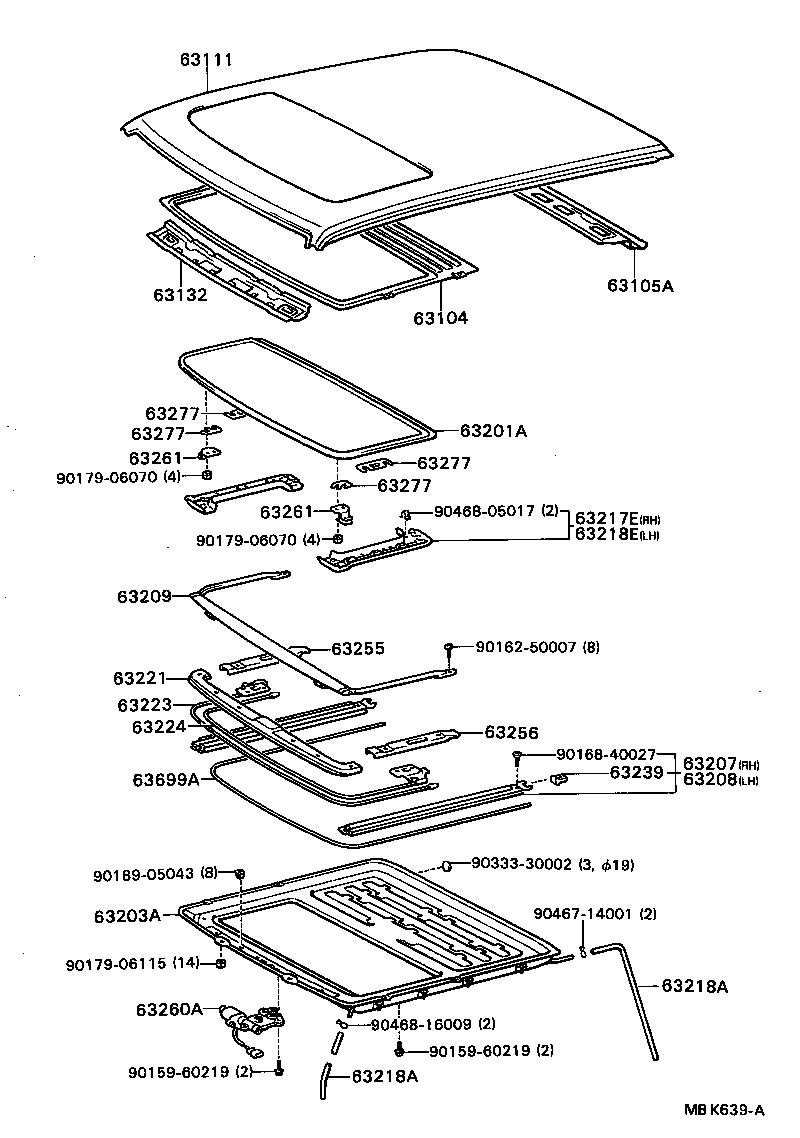

W/MOON ROOF

diagram 63104 63105A 63111 63132 63201A 63203A 63207 63208 63209 63217E 63218A 63218A 63218E 63221 63223 63224 63239 63255 63256 63260A 63261 63261 63277 63277 63277 63277 63699A 9015960219 9015960219 9016250007 9016840027 9017906070 9017906070 9017906115 9018905043 9033330002 9046714001 9046805017 9046816009
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-16040

EL3#..3DS

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-16030

EL3#..3DS

 1
63105-16060

EL3#..3DS

 1
63111 - PANEL, ROOF
63111-16130

EL3#..3DS

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-16020

EL3#,NL30

 1
Common parts
90159-60219
90162-50007
90168-40027
90179-06070
90179-06115
90189-05043
90333-30002
90467-14001
90468-05017
90468-16009
