EL30-LGHFS (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )3DS

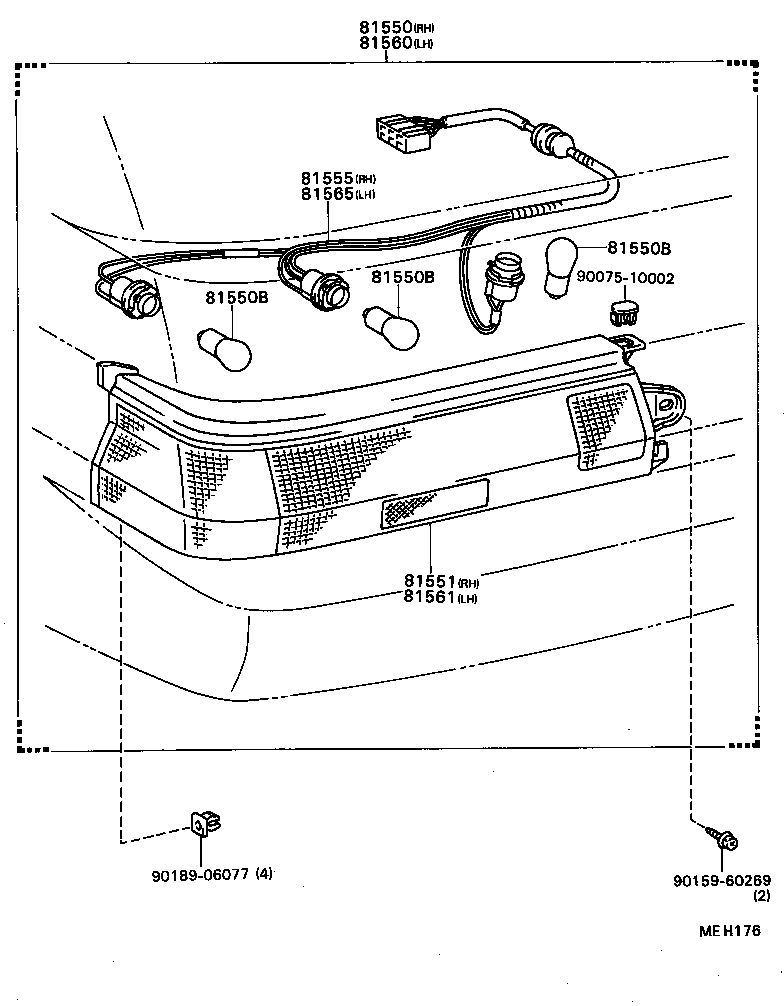

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-16340 |
EL3#..3DS |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
EL3#,NL30 12V 23W,12V 23W(TURN & BACK) |
4 | ||
| 99132-21210 |
EL3#,NL30 12V 21/5W,12V 21/5W(TAIL,STOP & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
EL3#,NL30 12V 23W,12V 23W(TURN & BACK) |
4 | ||
| 99132-21210 |
EL3#,NL30 12V 21/5W,12V 21/5W(TAIL,STOP & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
EL3#,NL30 12V 23W,12V 23W(TURN & BACK) |
4 | ||
| 99132-21210 |
EL3#,NL30 12V 21/5W,12V 21/5W(TAIL,STOP & PARKING) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-16340 |
EL3#..3DS |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-16340 |
EL3#,NL30 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-16360 |
EL3#..3DS |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-16360 |
EL3#..3DS |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-16340 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 90075-10002 | ||||
| 90159-60269 | ||||
| 90189-06077 | ||||
