EL30-LGHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

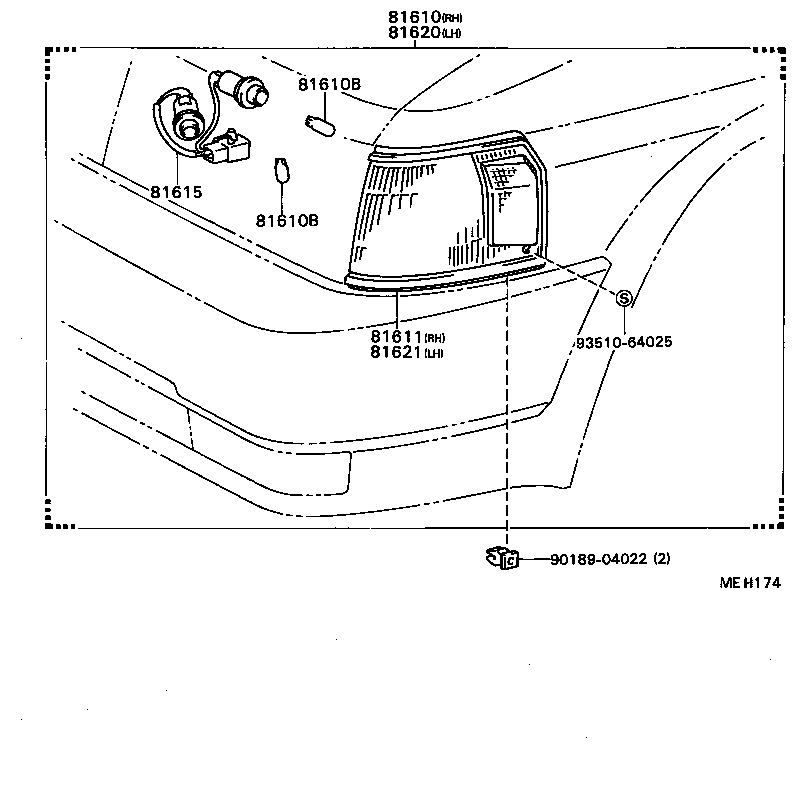

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81615 81620 81621 9018904022 9351064025
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-16120

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

12V 5W,12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

12V 5W,12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-16120

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-16120

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-16120

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-16120

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
Common parts
90189-04022
93510-64025
