EL30-LGHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

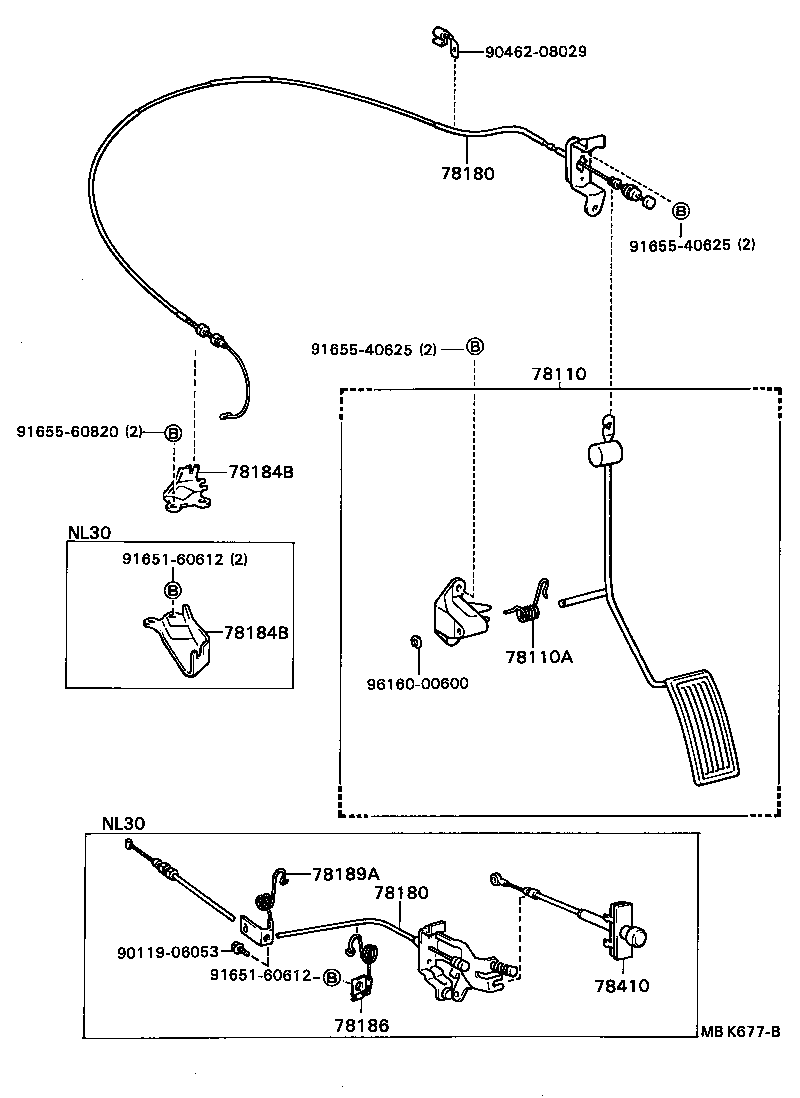

Click highlighted areas on diagram

diagram 78110 78110A 78180 78180 78184B 78184B 78186 78189A 78410 9011906053 9046208029 9165160612 9165160612 9165540625 9165540625 9165560820 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-16060

EL3#,NL30

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23098

EL3#,NL30

 1
78180 - WIRE ASSY, ACCELERATOR
78180-16140

EL3#..CBR

 1
78180 - WIRE ASSY, ACCELERATOR
78180-16140

EL3#..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-10070

EL3#..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-10070

EL3#..CBR

 1
Common parts
90119-06053
90462-08029
91651-60612
91655-40625
91655-60820
96160-00600
