EL30-LGHFS (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )2E,3E

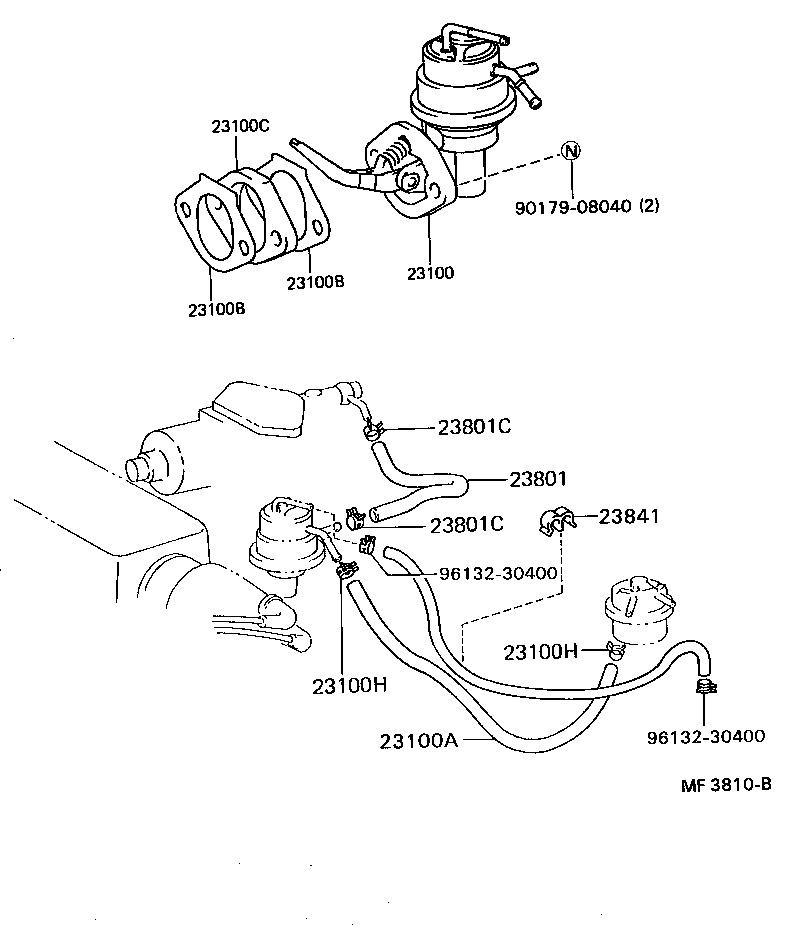

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23841 9017908040 9613230400 9613230400
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-11030

2E..EL30

 1
23100-11032

2E..EL30

 1
23100-11031

2E..EL30

 1
23100A - HOSE, FUEL
95333-06030

2E,3E..EL3#

 1
23100B - GASKET, FUEL PUMP
90923-05017

2E,3E..EL3#

 2
23100B - GASKET, FUEL PUMP
90923-05017

2E,3E..EL3#

 2
23100C - INSULATOR, FUEL PUMP
23915-10020

2E,3E..EL3#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E,3E..EL3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E,3E..EL3#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2E,3E..EL3#

*H,L=300

 1
95333-06030

2E,3E..EL3#

*H,L=300

 1
95333-06022

2E,3E..EL3#

*H,L=220

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2E,3E..EL3#

 2
90467-11009

2E,3E..EL3#

 2
90467-11049

2E,3E..EL3#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2E,3E..EL3#

 2
90467-11009

2E,3E..EL3#

 2
90467-11049

2E,3E..EL3#

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90464-00231

2E,3E..EL3#

 1
Common parts
90179-08040
96132-30400
