AL25-ZEHNS (1984)
Toyota Corsa/Tercel
(8408- )AL25..3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16003 |
AL25..3FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16003 |
AL25..3FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-16060 |
AL2#..3FC |
1 | ||
| 33502-16110 |
AL25..3FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06005 |
AL2#..3FC |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AL25..3FC |
2 | ||
| 90159-40109 |
AL2#..3FC |
2 | ||
| 90149-40004 |
AL2#..3FC..(GX,VL) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1601002 |
AL2#..3FC..(GX,VL) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33542-1601006 |
AL2#..3FC..(GX,VL) BROWN,BROWN,TRIM4# |
1 | ||
| 33542-1601003 |
AL2#..3FC..(GX,VL) GRAY,GRAY,TRIM1# |
1 | ||
| 33542-1602105 |
AL25..3FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33542-1602103 |
AL25..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33504-1602015 |
AL25..EX,GX,VE,VL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33542-1602101 |
AL25..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33542-1602115 |
AL25..3FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16020 |
AL2#..3FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-16110 |
AL25..3FC |
1 | ||
| 33503-16090 |
AL2#..3FC..(GX,VL) |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-11017 |
AL2#..3FC 12V 1.7W,12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
AL25..3FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-16020 |
AL2#..3FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-1601011 |
AL25..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33622-1601013 |
AL25..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33622-1601015 |
AL25..3FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33622-1601025 |
AL25..3FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1204002 |
AL2#..3FC..(GX,VL) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33623-1602015 |
AL25..3FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33623-1204003 |
AL2#..3FC..(GX,VL) GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602033 |
AL25..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602025 |
AL25..3FC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33623-1602011 |
AL25..3FC BLACK,NEW BLACK,TRIM2# |
1 | ||
| 33623-1602013 |
AL25..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1204026 |
AL2#..3FC..(GX,VL) BROWN,BROWN,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09009 |
AL2#..3FC..(GX,VL) |
1 | ||
| 90501-07009 |
AL2#..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AL25..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16020 |
AL25..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AL2#..3FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04001 |
AL2#..3FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-16010 |
AL25..3FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-16010 |
AL25..3FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
AL2#..3FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
AL2#..3FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
AL2#..3FC |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
AL2#..3FC |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
AL2#..3FC |
1 | ||
| 35519C - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-24010 |
AL20,25..3FC;AL21..3FC..VL;AL21..(3FC,4F)..(EX,GX,VE) |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33675-16020 |
AL2#..3FC |
1 | ||
| 33675-16030 |
AL25..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35030 |
AL25..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16070 |
AL25..3FC |
1 | ||
| 35921-16071 |
AL25..3FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-16030 |
AL25..3FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-16030 |
AL25..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16030 |
AL25..3FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-16010 |
AL2#..3FC |
2 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-16010 |
AL2#..3FC |
2 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08146 | ||||
| 90206-17001 | ||||
| 93315-15012 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

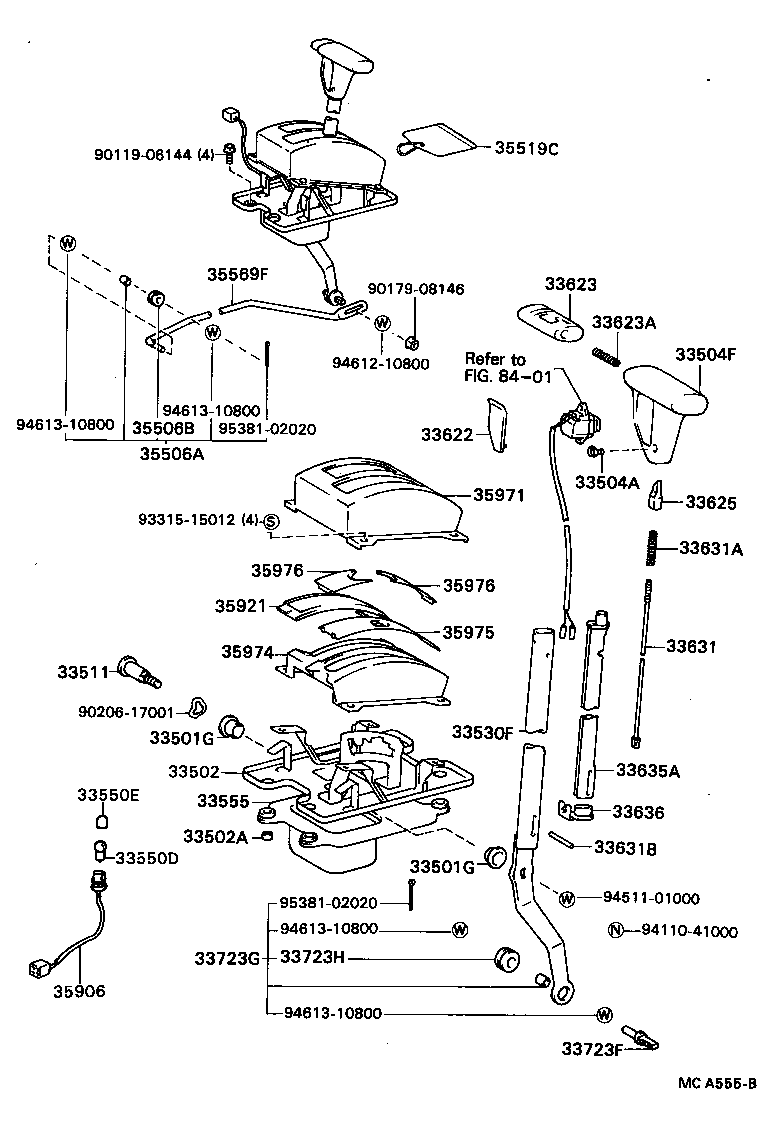

| Linked diagrams | ||||
| 8401 | ||||
