AL25-LEHNS (1984)

Toyota Corsa/Tercel

Production Aug 1984 - Oct 1989
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8605)CRS

Click highlighted areas on diagram

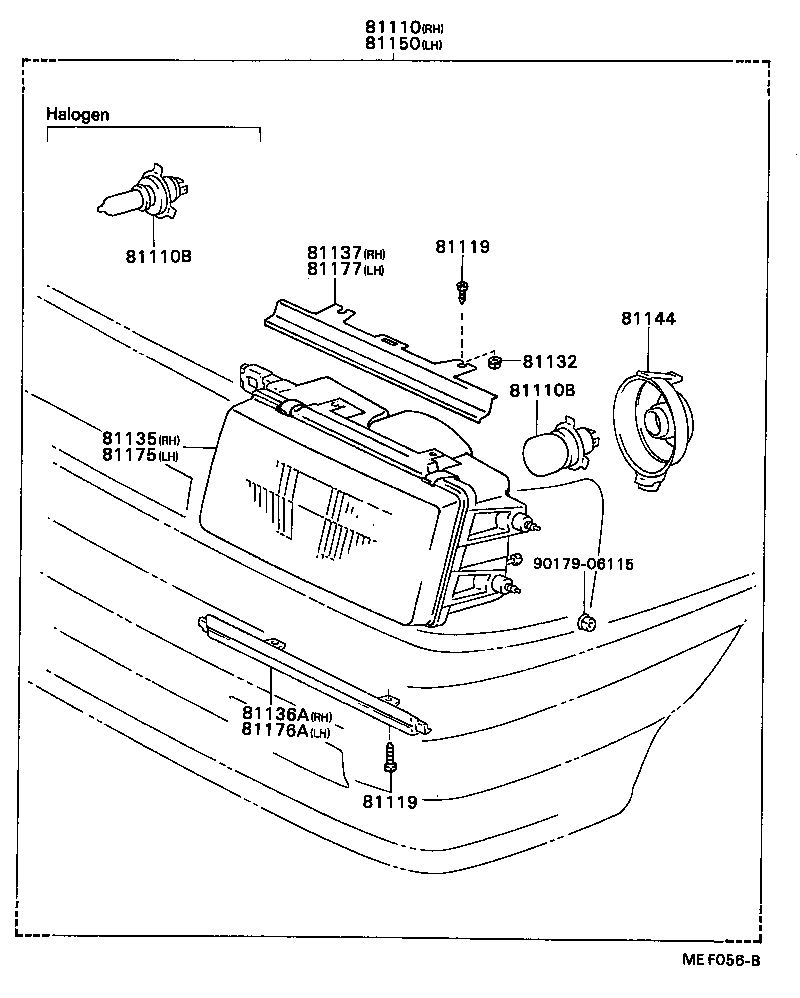

diagram 81110 81110B 81110B 81119 81119 81132 81135 81136A 81137 81144 81150 81175 81176A 81177 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80207

AL2#..DX,EX,GX

 1
81110-80424

AL2#..DX,EX,GX

 1
81110-80425

AL2#..CRS

HALOGEN

 1
81110-16162

AL2#

HALOGEN

 1
81110-80208

AL2#..CRS

HALOGEN

 1
81110-16152

AL25..GX,VL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

AL2#..DX,EX,GX,VC,VE,VL

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
90981-13015

AL2#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

AL25..GX,VL

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

AL2#..DX,EX,GX,VC,VE,VL

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
90981-13015

AL2#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

AL25..GX,VL

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81119 - SCREW, HEADLAMP
81119-14880

AL2#

 4
81119-16140

AL2#..CRS

 8
81119 - SCREW, HEADLAMP
81119-14880

AL2#

 4
81119-16140

AL2#..CRS

 8
81132 - NUT, HEADLAMP SELF LOCKING
81137-22530

AL2#..CRS

 1
81135 - UNIT ASSY, HEADLAMP, RH
81105-16151

AL25..GX,VL

 1
81135-16141

AL2#..CRS

HALOGEN

 1
81135-16131

AL2#..DX,EX,GX

 1
81105-16161

AL2#

HALOGEN

 1
81136A - RIM, HEADLAMP, RH
81137-16141

AL2#..CRS

 1
81116-16152

AL2#

 1
81137-16140

AL2#..CRS

 1
81137 - PROTECTOR, HEADLAMP, NO.2 RH
81136-16141

AL2#..CRS

 1
81136-16140

AL2#..CRS

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AL2#..CRS

 2
81139-30481

AL2#..CRS

 2
81139-14880

AL2#

 2
81150 - HEADLAMP ASSY, LH
81150-80205

AL2#..CRS

HALOGEN

 1
81150-80417

AL2#..CRS

HALOGEN

 1
81150-80204

AL2#..DX,EX,GX

 1
81150-80416

AL2#..DX,EX,GX

 1
81150-16162

AL2#

HALOGEN

 1
81150-16152

AL25..GX,VL

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-16141

AL2#..CRS

HALOGEN

 1
81106-16151

AL25..GX,VL

 1
81175-16131

AL2#..DX,EX,GX

 1
81106-16161

AL2#

HALOGEN

 1
81176A - RIM, HEADLAMP, LH
81156-16152

AL2#

 1
81177-16140

AL2#..CRS

 1
81177-16141

AL2#..CRS

 1
81177 - PROTECTOR, HEADLAMP, NO.2 LH
81176-16140

AL2#..CRS

 1
81176-16141

AL2#..CRS

 1
Common parts
90179-06115

(8605- )

Click highlighted areas on diagram

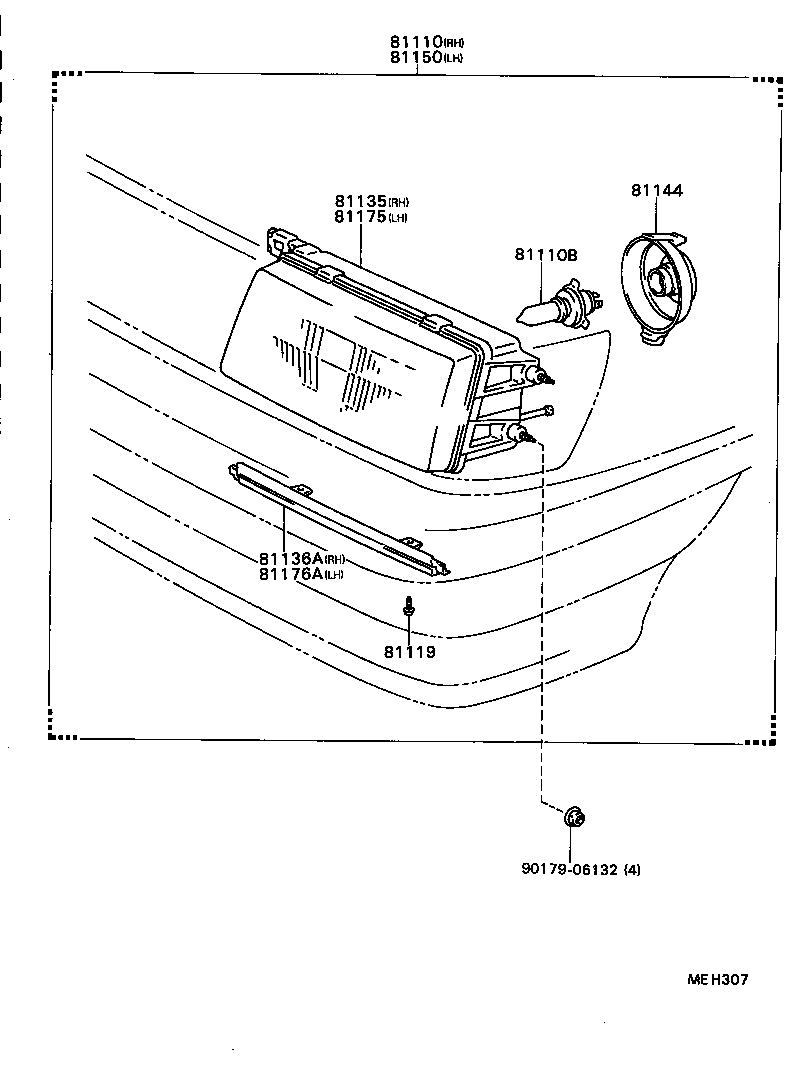

diagram 81110 81110B 81119 81135 81136A 81144 81150 81175 81176A 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80207

AL2#..DX,EX,GX

 1
81110-80424

AL2#..DX,EX,GX

 1
81110-80425

AL2#..CRS

HALOGEN

 1
81110-16162

AL2#

HALOGEN

 1
81110-80208

AL2#..CRS

HALOGEN

 1
81110-16152

AL25..GX,VL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

AL2#..DX,EX,GX,VC,VE,VL

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
90981-13015

AL2#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

AL25..GX,VL

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81119 - SCREW, HEADLAMP
81119-14880

AL2#

 4
81119-16140

AL2#..CRS

 8
81135 - UNIT ASSY, HEADLAMP, RH
81105-16151

AL25..GX,VL

 1
81135-16141

AL2#..CRS

HALOGEN

 1
81135-16131

AL2#..DX,EX,GX

 1
81105-16161

AL2#

HALOGEN

 1
81136A - RIM, HEADLAMP, RH
81137-16141

AL2#..CRS

 1
81116-16152

AL2#

 1
81137-16140

AL2#..CRS

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AL2#..CRS

 2
81139-30481

AL2#..CRS

 2
81139-14880

AL2#

 2
81150 - HEADLAMP ASSY, LH
81150-80205

AL2#..CRS

HALOGEN

 1
81150-80417

AL2#..CRS

HALOGEN

 1
81150-80204

AL2#..DX,EX,GX

 1
81150-80416

AL2#..DX,EX,GX

 1
81150-16162

AL2#

HALOGEN

 1
81150-16152

AL25..GX,VL

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-16141

AL2#..CRS

HALOGEN

 1
81106-16151

AL25..GX,VL

 1
81175-16131

AL2#..DX,EX,GX

 1
81106-16161

AL2#

HALOGEN

 1
81176A - RIM, HEADLAMP, LH
81156-16152

AL2#

 1
81177-16140

AL2#..CRS

 1
81177-16141

AL2#..CRS

 1
Common parts
90179-06132
