AL25-LEHNS (1984)
Toyota Corsa/Tercel
Production
Aug 1984
-
Oct 1989
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )4DS

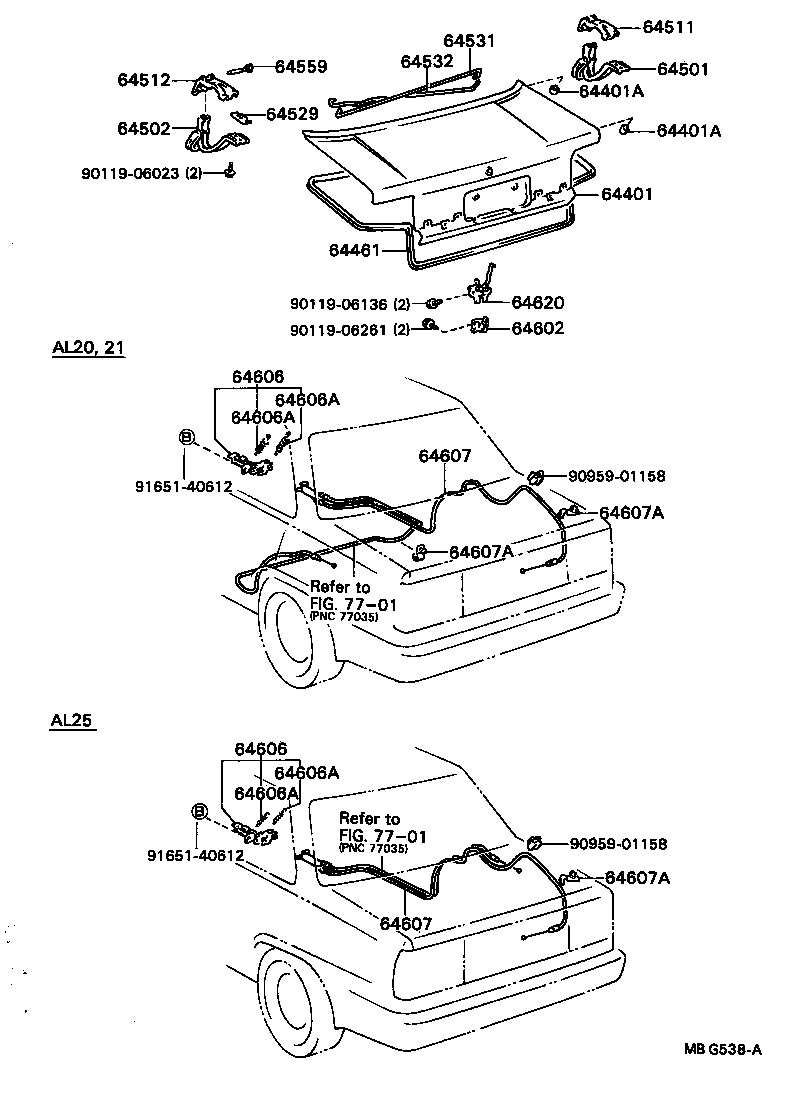

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-16080 |
AL2#..4DS |
1 | ||
| 64401-16060 |
AL2#..4DS |
1 | ||
| 64401-16090 |
AL2# |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-07003 |
AL2#..4DS FR |
2 | ||
| 90541-09041 |
AL2#..4DS RR,COLD SPEC |
2 | ||
| 90541-09025 |
AL2#..4DS RR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-07003 |
AL2#..4DS FR |
2 | ||
| 90541-09041 |
AL2#..4DS RR,COLD SPEC |
2 | ||
| 90541-09025 |
AL2#..4DS RR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-16040 |
AL2#..4DS NISHIKAWA GOM |
1 | ||
| 64461-16100 |
AL2#..4DS |
1 | ||
| 64461-16101 |
AL2# |
1 | ||
| 64461-16050 |
AL2#..4DS TOYOTA GOSEI |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-16020 |
AL2#..4DS |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-16020 |
AL2#..4DS |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-16020 |
AL2#..4DS |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-16020 |
AL2#..4DS |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-20010 |
AL2#..4DS |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-16030 |
AL2#..4DS |
1 | ||
| 64531-16020 |
AL2#..4DS |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-16020 |
AL2#..4DS |
1 | ||
| 64532-16030 |
AL2#..4DS |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-22010 |
AL2#..4DS |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-16030 |
AL2#..4DS |
1 | ||
| 64620-16020 |
AL2#..4DS |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-16030 |
AL2#..4DS |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-16030 |
AL2#..4DS |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AL2#..4DS |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AL2#..4DS |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AL2#..4DS |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AL2#..4DS |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-16090 |
AL2#..4DS |
1 | ||
| 64607-16130 |
AL2#..4DS |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-16090 |
AL2#..4DS |
1 | ||
| 64607-16130 |
AL2#..4DS |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AL25 |
4 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AL25 |
4 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AL25 |
4 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-16020 |
AL2#..4DS |
1 | ||
| 64610-16030 |
AL2#..4DS |
1 | ||
| Common parts | ||||
| 90119-06023 | ||||
| 90119-06136 | ||||
| 90119-06261 | ||||
| 90959-01158 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 7701 | ||||
