AL25-LEHNS (1984)

Toyota Corsa/Tercel

Production Aug 1984 - Oct 1989
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8511)

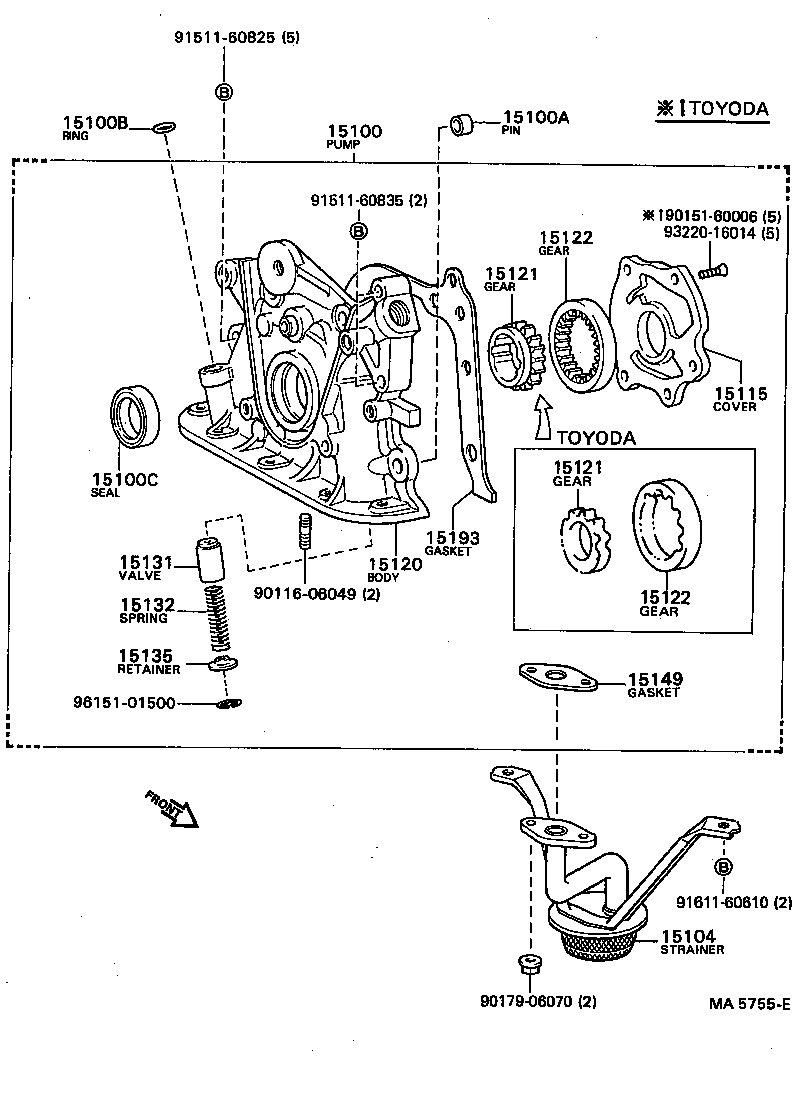

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15104 15115 15120 15121 15121 15122 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15020

2AU,3A#..AL2#

 1
15100-19015

2AU,3A#..AL2#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2AU,3A#..AL2#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2AU,3A#..AL2#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2AU,3A#..AL2#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15060

2AU,3A#..AL2#

 1
15115 - COVER, OIL PUMP
15115-15010

2AU,3A#..AL2#

AISIN

 1
15115-15020

2AU,3A#..AL2#

AISIN

 1
15115-15030

2AU,3A#..AL2#

TOYODA

 1
15120 - BODY SUB-ASSY, OIL PUMP
15101-15020

2AU,3A#..AL2#

AISIN

 1
15120-15011

2AU,3A#..AL2#

AISIN

 1
15101-15030

2AU,3A#..AL2#

TOYODA

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15030

2AU,3A#..AL2#

TOYODA

 1
15121-15010

2AU,3A#..AL2#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15030

2AU,3A#..AL2#

TOYODA

 1
15121-15010

2AU,3A#..AL2#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15030

2AU,3A#..AL2#

TOYODA

 1
15122-15010

2AU,3A#..AL2#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15030

2AU,3A#..AL2#

TOYODA

 1
15122-15010

2AU,3A#..AL2#

AISIN

 1
15131 - VALVE, OIL PUMP RELIEF
15131-15030

2AU,3A#..AL2#

TOYODA

 1
15131-24010

2AU,3A#..AL2#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2AU,3A#..AL2#

AISIN

 1
15132-15030

2AU,3A#..AL2#

TOYODA

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2AU,3A#..AL2#

AISIN

 1
15135-15030

2AU,3A#..AL2#

TOYODA

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2AU,3A#..AL2#

 1
15193 - GASKET, OIL PUMP
15197-15011

2AU,3A#..AL2#

 1
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500

(8511- )

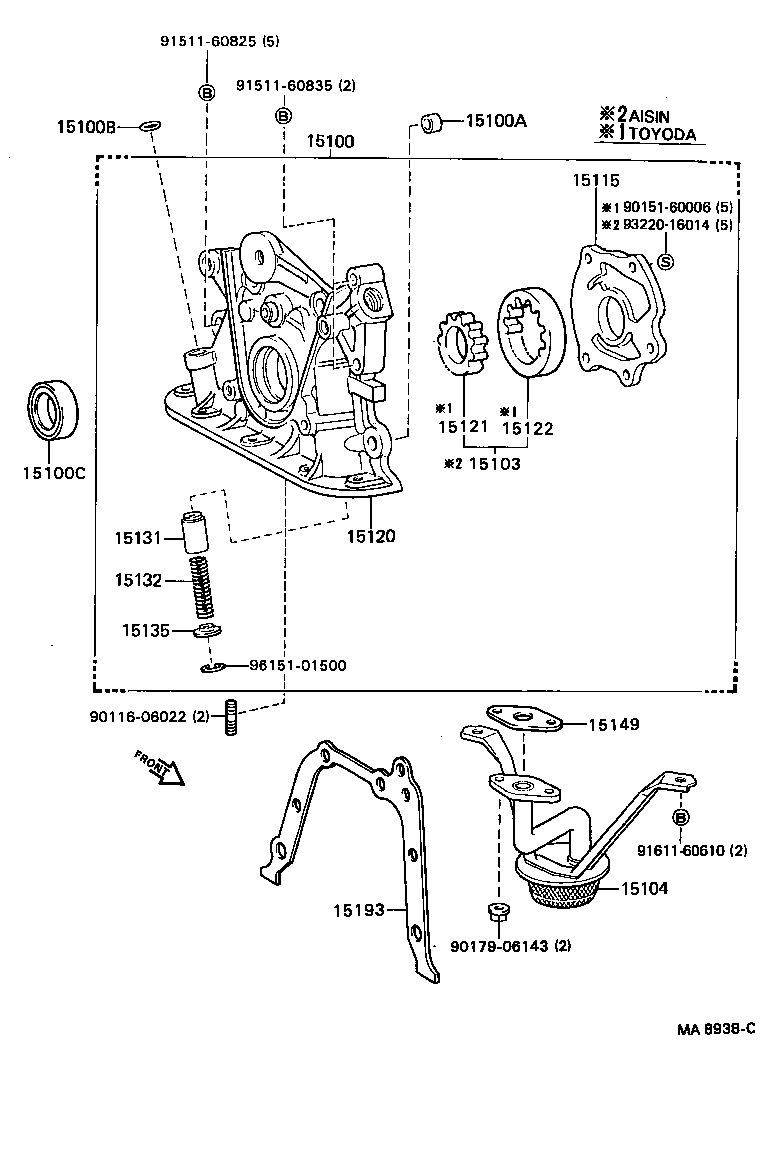

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15103 15104 15115 15120 15121 15122 15131 15132 15135 15149 15193 9011606022 9015160006 9017906143 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15020

2AU,3A#..AL2#

 1
15100-19015

2AU,3A#..AL2#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2AU,3A#..AL2#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2AU,3A#..AL2#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2AU,3A#..AL2#

 1
15103 - GEAR SET, OIL PUMP
15103-15020

2AU,3A#..AL2#

AISIN

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15060

2AU,3A#..AL2#

 1
15115 - COVER, OIL PUMP
15115-15010

2AU,3A#..AL2#

AISIN

 1
15115-15020

2AU,3A#..AL2#

AISIN

 1
15115-15030

2AU,3A#..AL2#

TOYODA

 1
15120 - BODY SUB-ASSY, OIL PUMP
15101-15020

2AU,3A#..AL2#

AISIN

 1
15120-15011

2AU,3A#..AL2#

AISIN

 1
15101-15030

2AU,3A#..AL2#

TOYODA

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15030

2AU,3A#..AL2#

TOYODA

 1
15121-15010

2AU,3A#..AL2#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15030

2AU,3A#..AL2#

TOYODA

 1
15122-15010

2AU,3A#..AL2#

AISIN

 1
15131 - VALVE, OIL PUMP RELIEF
15131-15030

2AU,3A#..AL2#

TOYODA

 1
15131-24010

2AU,3A#..AL2#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2AU,3A#..AL2#

AISIN

 1
15132-15030

2AU,3A#..AL2#

TOYODA

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2AU,3A#..AL2#

AISIN

 1
15135-15030

2AU,3A#..AL2#

TOYODA

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2AU,3A#..AL2#

 1
15193 - GASKET, OIL PUMP
15197-15011

2AU,3A#..AL2#

 1
Common parts
90116-06022
90151-60006
90179-06143
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500
