AL25-LEFSB (1986)
Toyota Corsa/Tercel

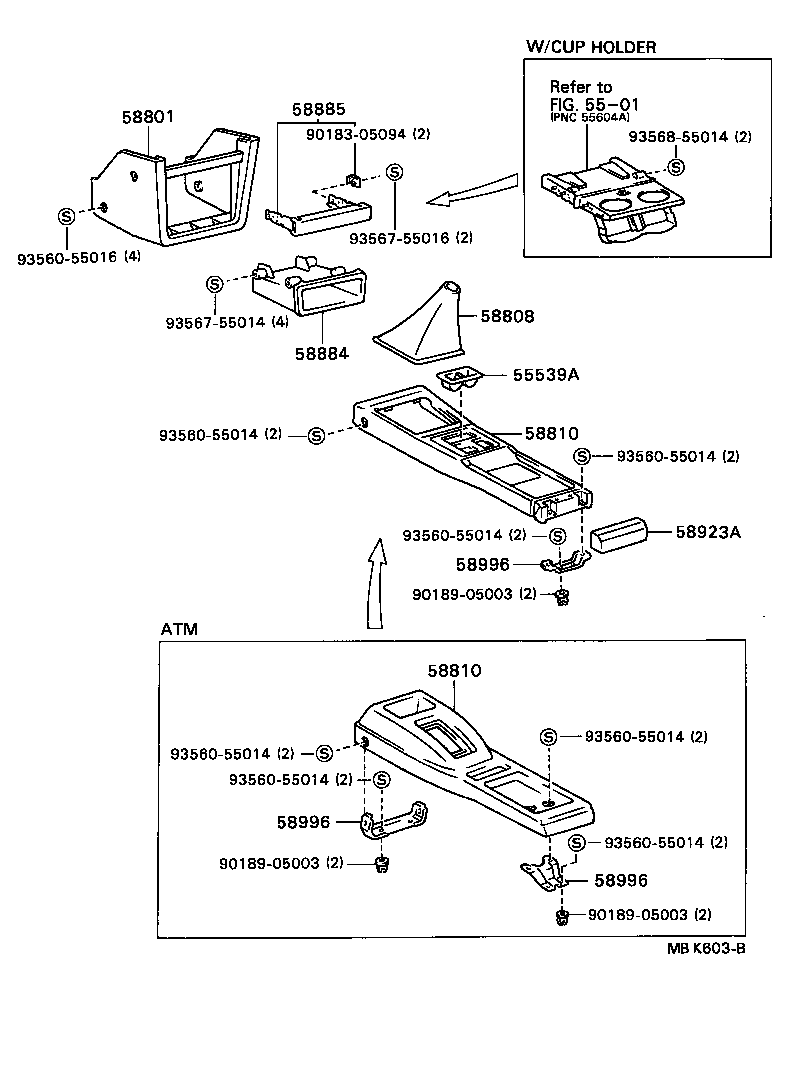

ILLUST NO. 1 OF 2(8605- )AL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55548-1602005 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55548-1602001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1602002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 58813-1604001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1602003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604015 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58813-1602006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1602003 |
AL2#..MTM..(EX,GX,SX,VE,VL,VS) GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1602002 |
AL2#..MTM..(EX,GX,SX,VE,VL,VS) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 58808-1602006 |
AL2#..MTM..(EX,GX,SX,VE,VL,VS) BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1606001 |
AL25..6F BLACK,BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1610001 |
AL25..6F BLACK,BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1610001 |
AL25..6F BLACK,BLACK,TRIM2# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AL2# |
1 | ||
| 55521-16030 |
AL25 |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-16030 |
AL2# |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58996-16070 |
AL25 RR |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58996-16070 |
AL25 RR |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58996-16070 |
AL25 RR |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90189-05003 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

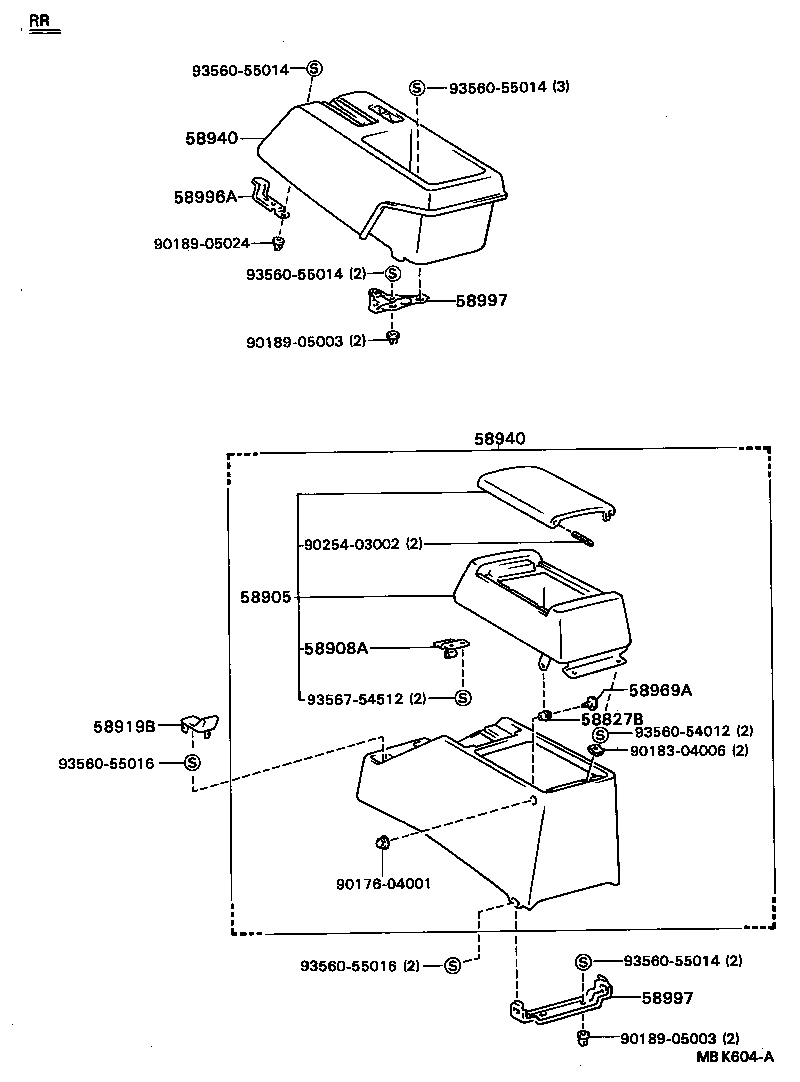

ILLUST NO. 2 OF 2(8605- )AL25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
AL21,25..EX,SX,VE,VS |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1602001 |
AL25..EX,SX,VE,VS BLACK,BLACK,TRIM2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58976-22020 |
AL25..EX,SX,VE,VS |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-1601001 |
AL25..EX,SX,VE,VS BLACK,BLACK,TRIM2# |
2 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1606001 |
AL25..EX,SX,VE,VS BLACK,BLACK,TRIM2# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1606001 |
AL25..EX,SX,VE,VS BLACK,BLACK,TRIM2# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
AL21,25..EX,SX,VE,VS |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL25;AL20,21..DX,GX,SX,VC,VL,VS |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16050 |
AL25;AL21..GX,SX,VL,VS |
1 | ||
| 58997-16090 |
AL25..EX,SX,VE,VS |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16050 |
AL25;AL21..GX,SX,VL,VS |
1 | ||
| 58997-16090 |
AL25..EX,SX,VE,VS |
1 | ||
| Common parts | ||||
| 90176-04001 | ||||
| 90183-04006 | ||||
| 90189-05003 | ||||
| 90189-05024 | ||||
| 90254-03002 | ||||
| 93560-54012 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93567-54512 | ||||
