AL25-LEFNS (1984)
Toyota Corsa/Tercel
Production
Aug 1984
-
Oct 1989
Engine
3AU
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )AL25

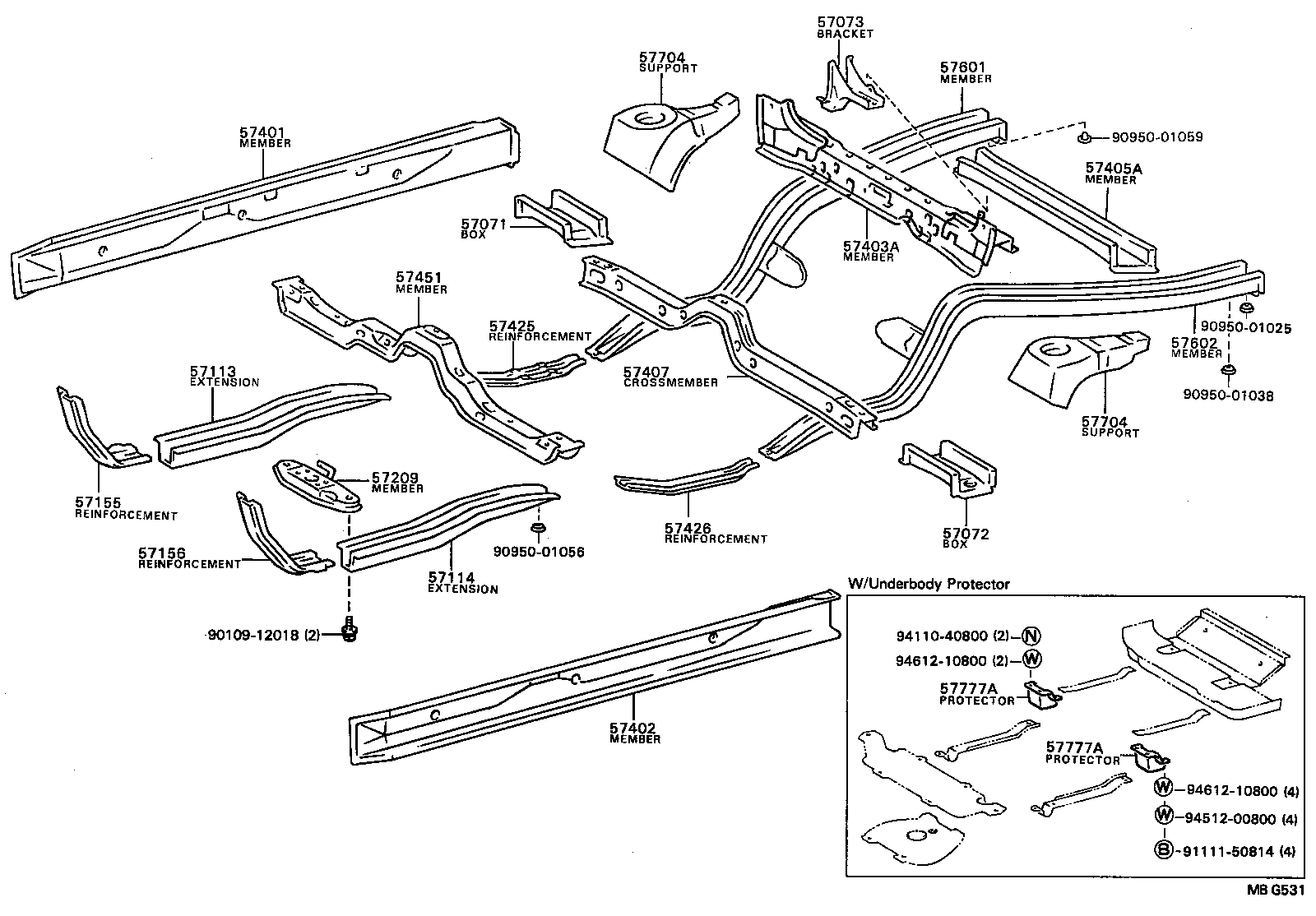

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57071 - BOX SUB-ASSY, TORQUE, REAR RH | ||||
| 57071-16030 |
AL25 |
1 | ||
| 57072 - BOX SUB-ASSY, TORQUE, REAR LH | ||||
| 57072-16030 |
AL25 |
1 | ||
| 57073 - BRACKET SUB-ASSY, LATERAL ROD | ||||
| 57073-16020 |
AL25 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-16030 |
AL2# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-16030 |
AL2# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-16010 |
AL2# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-16030 |
AL2# |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-16050 |
AL25 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-16100 |
AL25 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-16100 |
AL25 |
1 | ||
| 57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | ||||
| 57403-16020 |
AL25 |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-12040 |
AL25 |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-12010 |
AL25 |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-16020 |
AL2# |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-16020 |
AL2# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-16010 |
AL25 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-16140 |
AL25 |
1 | ||
| 57601-16141 |
AL25 |
1 | ||
| 57601-16100 |
AL2#..4DS |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-16141 |
AL25 |
1 | ||
| 57602-16100 |
AL2#..4DS |
1 | ||
| 57602-16140 |
AL25 |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57701-16010 |
AL25 RH |
1 | ||
| 57704-16010 |
AL25 LH |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57701-16010 |
AL25 RH |
1 | ||
| 57704-16010 |
AL25 LH |
1 | ||
| 57777A - PROTECTOR, LOWER CONTROL LINK | ||||
| 57778-16010 |
AL25 W/UNDER BODY PROTECTOR,LH |
1 | ||
| 57777-16010 |
AL25 W/UNDER BODY PROTECTOR,RH |
1 | ||
| 57777A - PROTECTOR, LOWER CONTROL LINK | ||||
| 57778-16010 |
AL25 W/UNDER BODY PROTECTOR,LH |
1 | ||
| 57777-16010 |
AL25 W/UNDER BODY PROTECTOR,RH |
1 | ||
| Common parts | ||||
| 90109-12018 | ||||
| 90950-01025 | ||||
| 90950-01038 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 91111-50814 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
