AL25-LEFES (1984)

Toyota Corsa/Tercel

Production Aug 1984 - Oct 1989
Engine 3AU
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )AL25

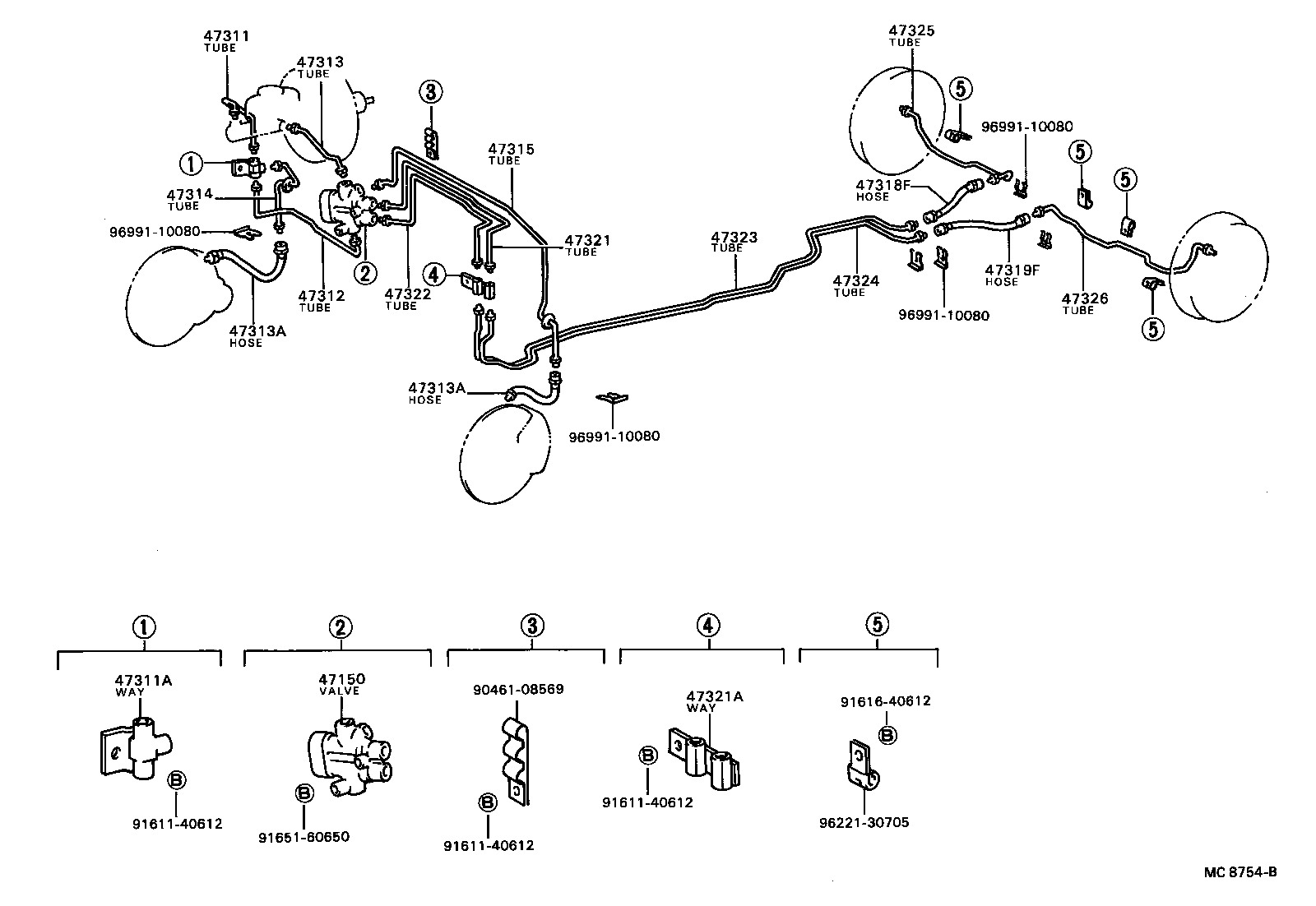

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47314 47315 47318F 47319F 47321 47321A 47322 47323 47324 47325 47326 9046108569 9161140612 9161140612 9161140612 9161640612 9165160650 9622130705 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16030

AL2#

 1
47150-16050

AL25

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-16040

AL2#

 1
47311-16041

AL2#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

AL2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-16041

AL2#

 1
47312-16040

AL2#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-16051

AL2#

 1
47313-16050

AL2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02437

AL2#

 2
90947-02437

AL25

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02437

AL2#

 2
90947-02437

AL25

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-16041

AL2#

 1
47314-16040

AL2#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-16020

AL2#

 1
47315-16021

AL2#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96950-33005

AL25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96950-32605

AL25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-16030

AL2#

 1
47321-16031

AL2#

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90412-10096

AL2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-16020

AL2#

 1
47322-16021

AL2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-16051

AL25

 1
47323-16030

AL2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-16020

AL2#

 1
47324-16041

AL25

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-16041

AL25

 1
47325-16030

AL2#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-16021

AL25

 1
47326-16010

AL2#

 1
Common parts
90461-08569
91611-40612
91616-40612
91651-60650
96221-30705
96991-10080
