AL25-LEFES (1984)

Toyota Corsa/Tercel

Production Aug 1984 - Oct 1989
Engine 3AU
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2AU,3AU

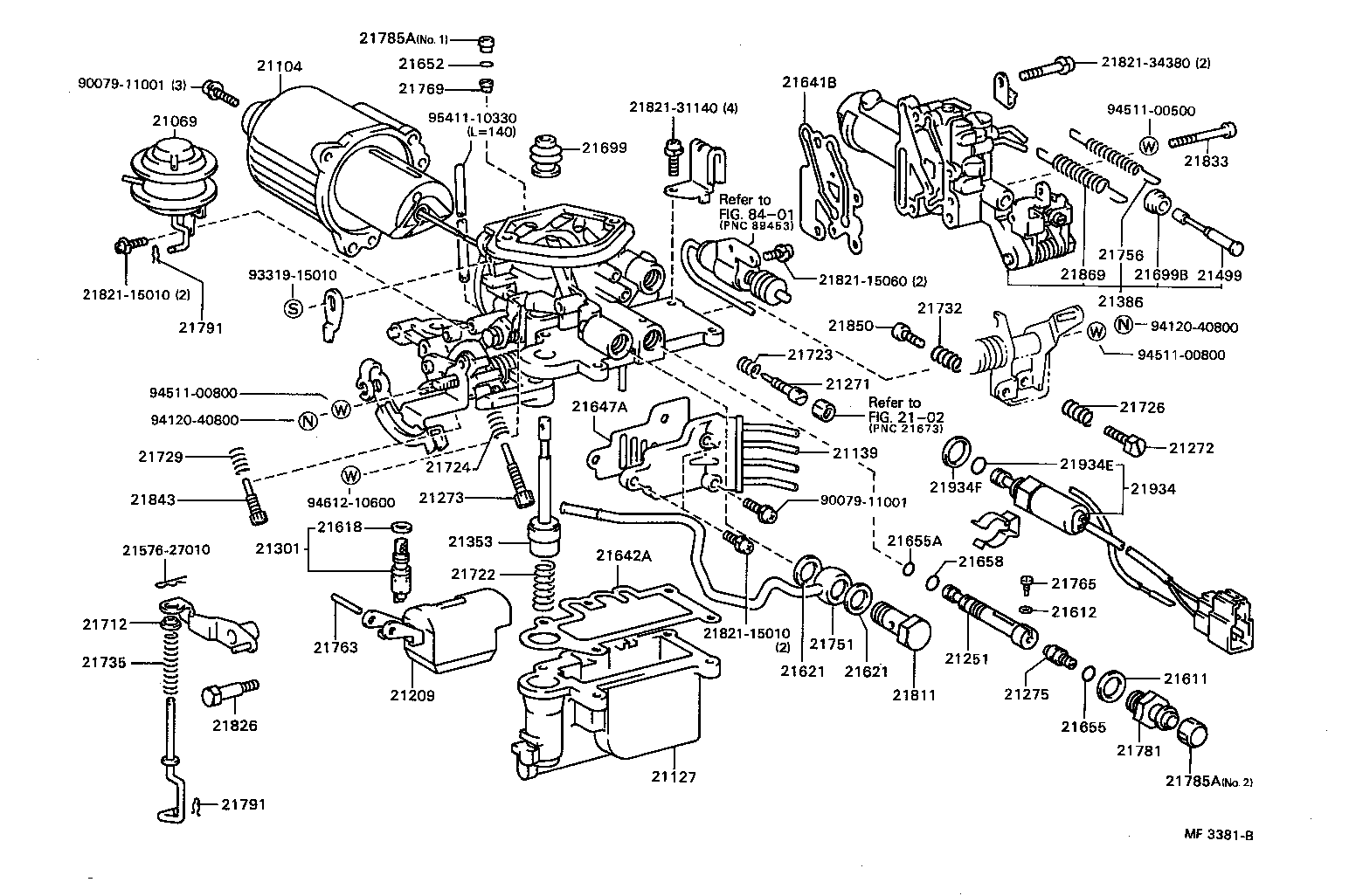

Click highlighted areas on diagram

diagram 2102 21069 21104 21127 21139 21209 21251 21271 21272 21273 21275 21301 21353 21386 21499 2157627010 21611 21612 21618 21621 21621 21641B 21642A 21647A 21652 21655 21655A 21658 21699 21699B 21712 21722 21723 21724 21726 21729 21732 21735 21751 21756 21763 21765 21769 21781 21785A 21785A 21791 21791 21811 2182115010 2182115010 2182115060 2182131140 2182134380 21826 21833 21843 21850 21869 21934 21934E 21934F 8401 9007911001 9007911001 9331915010 9412040800 9412040800 9451100500 9451100800 9451100800 9461210600 9541110330
Part # Description Qty Price
21069 - DASH POT SUB-ASSY
21679-15370

2AU,3AU..AL2#

 1
21104 - CHAMBER SUB-ASSY, SUCTION
21014-15370

2AU,3AU..AL2#

 1
21014-15371

2AU,3AU..AL2#

 1
21127 - BOWL, FLOAT
21127-15370

2AU,3AU..AL2#

 1
21127-15371

2AU,3AU..AL2#

 1
21127-15401

2AU,3AU..AL2#

 1
21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE)
21139-11090

2AU,3A#..AL2#

 1
21209 - FLOAT SUB-ASSY
21209-15020

2AU,3AU..AL2#

 1
21209-11090

2AU,3A#..AL2#

 2
21251 - JET, 1ST MAIN
21251-11090

2AU,3A#..AL2#

 2
90999-41103

2AU,3AU..AL2#

ID=1.03

 1
21251-15460

2AU,3A#..AL2#

 2
21251-15461

2AU,3A#..AL2#

 2
21271 - SCREW, IDLE ADJUSTING
21271-25201

2AU,3AU..AL2#

 1
21271-15370

2AU,3AU..AL2#

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21828-25180

2AU,3AU..AL2#

 1
21273-40122

2AU,3A#..AL2#

 1
21273 - SCREW, THROTTLE ADJUSTING
21844-33010

2AU,3AU..AL2#

 1
21273-11090

2AU,3AU..AL2#

 1
21275 - SCREW, ADJUSTING
21844-26030

2AU,3AU..AL2#

 1
21275-15460

2AU,3A#..AL2#

 2
21275-11090

2AU,3A#..AL2#

 2
21301 - VALVE SUB-ASSY, NEEDLE
21301-15020

2AU,3AU..AL2#

 1
21301-15250

2AU,3A#..AL2#

 2
21353 - PLUNGER, PUMP
21353-44101

2AU,3A#..AL2#

 1
21353-15380

2AU,3AU..AL2#

 1
21353-44101

2AU,3AU..AL2#

 1
21353-15371

2AU,3AU..AL2#

 1
21353-33010

2AU,3AU..AL2#

 1
21386 - COMPENSATOR
21386-15370

2AU,3AU..AL2#

 1
21386-15371

2AU,3AU..AL2#

 1
21499 - ROD, PUSH(FOR CARBURETOR)
21499-15370

2AU,3AU..AL2#

 1
21611 - GASKET, MAIN JET
21611-15250

2AU,3A#..AL2#

 2
21611-22010

2AU,3AU..AL2#

 2
21612 - GASKET, POWER VALVE
21612-15250

2AU,3A#..AL2#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

2AU,3A#..AL2#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2AU,3A#..AL2#

 4
21621 - GASKET, UNION NIPPLE
21633-24030

2AU,3A#..AL2#

 4
21641B - GASKET, COMPENSATOR
21641-11090

2AU,3AU..AL2#

 1
21641-11090

2AU,3A#..AL2#

 2
21642A - GASKET, FLOAT BOWL
21642-11090

2AU,3A#..AL2#

 2
21642-11090

2AU,3AU..AL2#

 1
21647A - GASKET, ADAPTER
21647-11090

2AU,3A#..AL2#

 1
21652 - RING, O(FOR SUCTION CHANBER ADJUSTING)
21652-15250

2AU,3A#..AL2#

 2
21655 - RING, O(FOR LIFTER ROD)
21655-60010

2AU,3A#..AL2#

 2
21655A - RING, O(FOR SLOW JET)
21655-15250

2AU,3A#..AL2#

 2
21658 - RING, O(FOR MAIN GUIDE UPPER)
21658-15250

2AU,3A#..AL2#

 2
21699 - BOOT(FOR PUMP PLUNGER)
21699-28150

2AU,3A#..AL2#

 1
21699B - BOOT(FOR COMPENSATOR)
21699-11090

2AU,3A#..AL2#

 2
21712 - BUSH, SLIDING ROD
21712-38010

2AU,3A#..AL2#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

2AU,3A#..AL2#

 1
21723 - SPRING, IDLE ADJUSTING
21724-51011

2AU,3A#..AL2#

 2
21723-21030

2AU,3AU..AL2#

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-38010

2AU,3AU..AL2#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21723-21030

2AU,3AU..AL2#

 1
21726-15251

2AU,3A#..AL2#

 1
21729 - SPRING, 1ST THROTTLE BACK
21723-21030

2AU,3AU..AL2#

 1
21732 - SPRING, THROTTLE ADJUSTING
21723-60010

2AU,3A#..AL2#

 1
21723-21030

2AU,3AU..AL2#

 1
21735 - SPRING, PUMP ARM
21735-11340

2AU,3A#..AL2#

 1
21735-11150

2AU,3A#..AL2#

 1
21735-15250

2AU,3A#..AL2#

 1
21735-15270

2AU,3AU..AL2#

 1
21751 - UNION, NIPPLE
21894-15011

2AU,3AU..AL2#

 1
21894-15371

2AU,3AU..AL2#

 1
21894-15370

2AU,3AU..AL2#

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21756-15010

2AU,3AU..AL2#..MTM

 1
21756-15250

2AU,3A#..AL2#

 2
21763 - PIN, FLOAT LEVER
21763-38010

2AU,3A#..AL2#

 2
21763-26350

2AU,3AU..AL2#

 1
21765 - PIN(FOR PUMP PLUNGER)
21765-15250

2AU,3A#..AL2#

 2
21769 - PIN(FOR SUCTION CHANBER ADJUSTING)
21769-15250

2AU,3A#..AL2#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-11090

2AU,3A#..AL2#

 2
21781-15461

2AU,3A#..AL2#

 1
21781-15460

2AU,3A#..AL2#

 2
21781-15230

2AU,3AU..AL2#

 2
21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21672-15250

2AU,3A#..AL2#

NO.2

 2
21785-11090

2AU,3A#..AL2#

NO.1

 2
21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21672-15250

2AU,3A#..AL2#

NO.2

 2
21785-11090

2AU,3A#..AL2#

NO.1

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2AU,3A#..AL2#

TYPE 1

 10
21791-60010

2AU,3A#..AL2#

 3
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2AU,3A#..AL2#

TYPE 1

 10
21791-60010

2AU,3A#..AL2#

 3
21811 - BOLT, UNION NIPPLE
21811-11060

2AU,3A#..AL2#

 2
21826 - SCREW, PUMP ARM SET
21826-31012

2AU,3AU..AL2#

 1
21826-24470

2AU,3A#..AL2#

 1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-31012

2AU,3A#..AL2#

 2
21833-33010

2AU,3A#..AL2#

 2
21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21273-60151

2AU,3AU..AL2#

 1
21844-33010

2AU,3AU..AL2#

 1
21850 - SCREW, THROTTLE SWITCH ADJUSTING
21276-11090

2AU,3A#..AL2#

 1
21844-15230

2AU,3AU..AL2#

 1
21869 - SPRING(FOR MAIN JET)
21869-15250

2AU,3A#..AL2#

 2
21934 - SOLENOID, THROTTLE VALVE
21072-15230

2AU,3AU..AL2#

2ND

 1
21062-15230

2AU,3AU..AL2#

1ST

 1
21062-15370

2AU,3AU..AL2#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21656-15250

2AU,3A#..AL2#

 2
21655-44101

2AU,3AU..AL2#

 2
21934F - GASKET
21649-38010

2AU,3AU..AL2#

 2
21633-15250

2AU,3A#..AL2#

 2
Common parts
21576-27010
21821-15010
21821-15060
21821-31140
21821-34380
90079-11001
93319-15010
94120-40800
94511-00500
94511-00800
94612-10600
95411-10330
Linked diagrams
2102
8401
