AL21-ZHMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8605)3DS,5DS

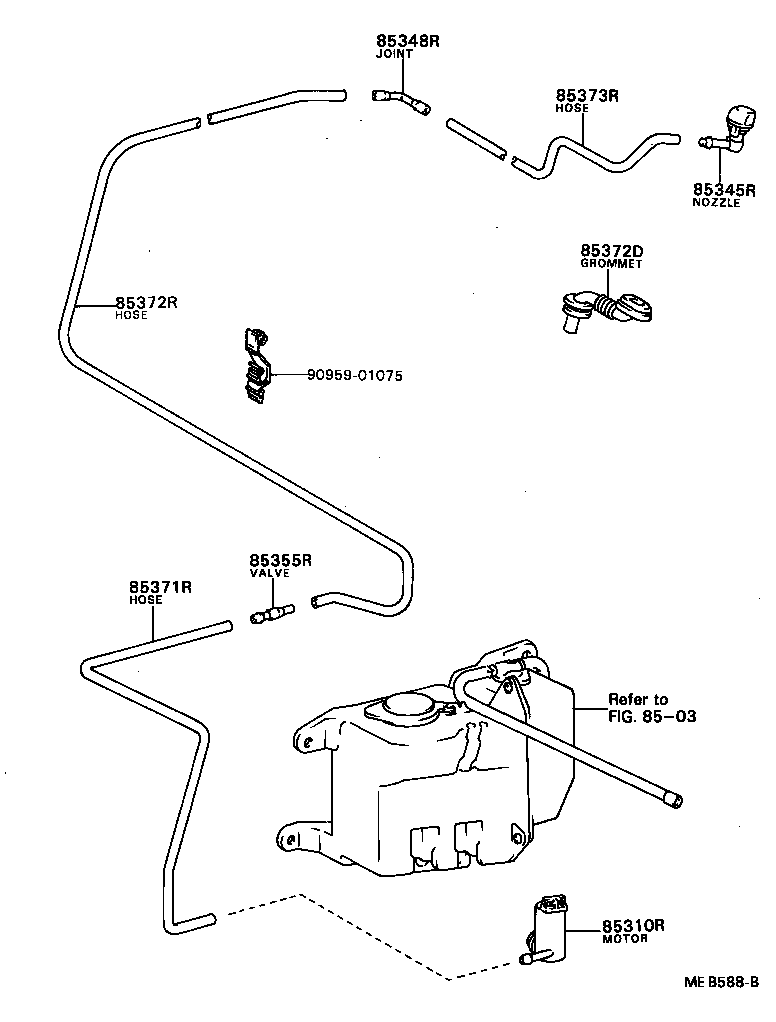

Click highlighted areas on diagram

diagram 8503 85310R 85345R 85348R 85355R 85371R 85372D 85372R 85373R 9095901075
Part # Description Qty Price
85310R - MOTOR ASSY, REAR WASHER
85310-16030

AL2#..3DS,5DS

 1
85310-22080

AL20,21..3DS,5DS

 1
85345R - NOZZLE, REAR WASHER
85035-16040

AL2#..5DS

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-20080

AL20,21..3DS,5DS

 1
85355R - VALVE, REAR WASHER HOSE
85031-12250

AL20,21..3DS,5DS

 1
85031-14080

AL20,21..3DS,5DS

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AL21..3ASU

*H,L=480

 1
90099-33299

AL2#..5DS

*H,L=400

 1
90446-06013

AL21..3ASU

*H,L=480

 1
85372D - GROMMET, REAR WASHER HOSE
85372-14020

AL20,21..3DS,5DS

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33391

AL2#..3DS,5DS

L=3200

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AL20,21..3DS,5DS

*H,L=400

 1
Common parts
90959-01075
Linked diagrams
8503
