AL21-ZHKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

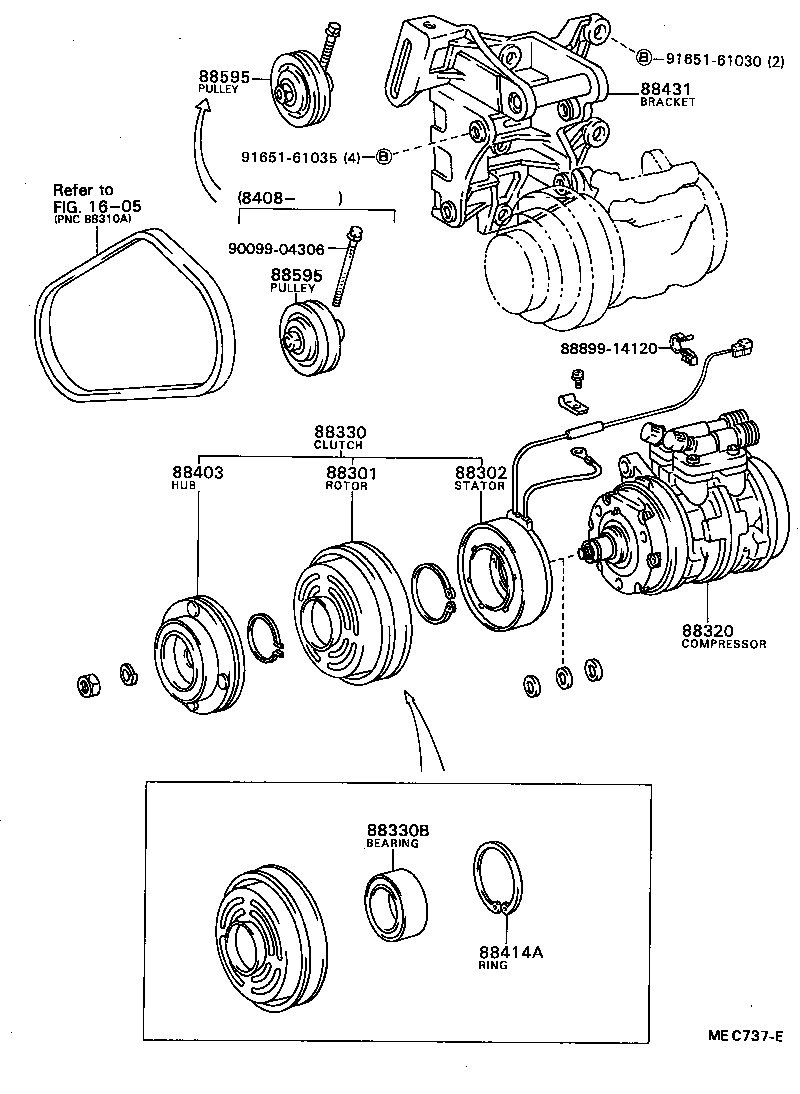

Click highlighted areas on diagram

diagram 1605 88301 88302 88320 88330 88330B 88403 88414A 88431 88595 88595 8889914120 9009904306 9165161030 9165161035
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030

AL2#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16010

AL2#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-16040

AL2#

 1
88330 - CLUTCH ASSY, MAGNET
88410-16010

AL2#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10135

AL2#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14040

AL2#

 1
88414A - RING, SHIELD SNAP
90099-07114

AL2#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16020

AL2#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16020

AL2#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16020

AL2#

 1
Common parts
88899-14120
90099-04306
91651-61030
91651-61035
Linked diagrams
1605
