AL21-ZHKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

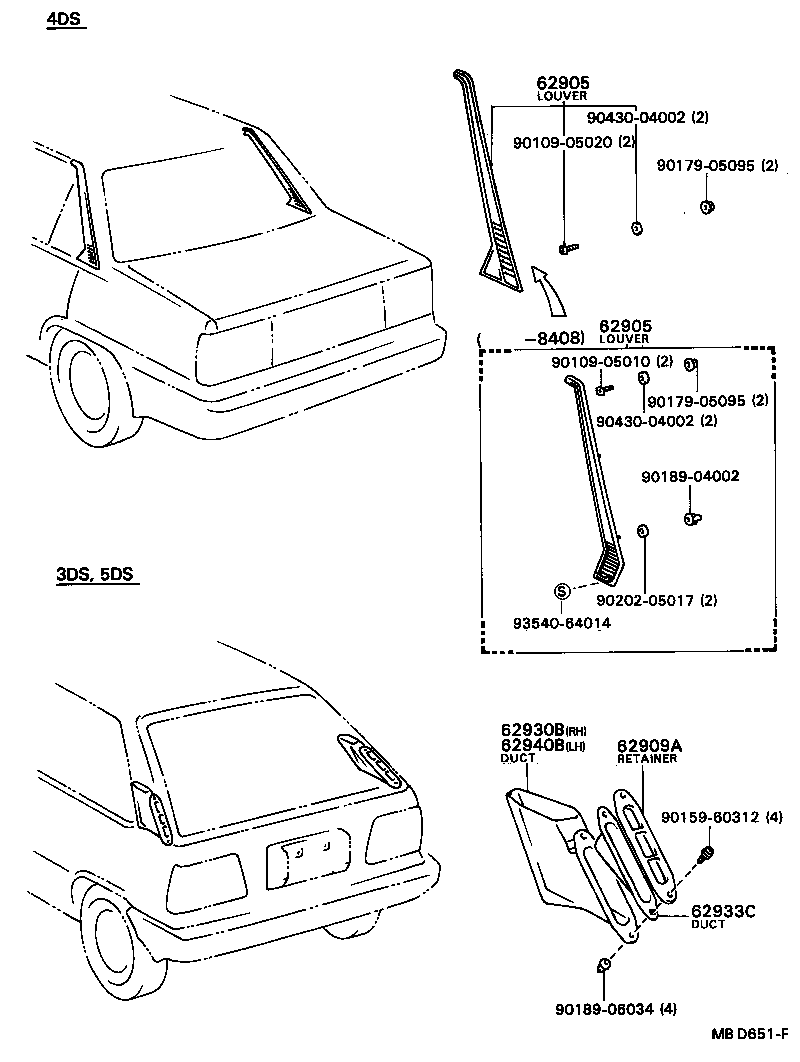

Click highlighted areas on diagram

diagram 62905 62905 62909A 62930B 62933C 62940B 9010905010 9010905020 9015960312 9017905095 9017905095 9018904002 9018906034 9020205017 9043004002 9043004002 9354064014
Part # Description Qty Price
62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER
62955-16030

AL20,21..3DS,5DS

 2
62930B - DUCT ASSY, QUARTER VENT, RH
62931-16010

AL20,21..3DS,5DS

 1
62933C - DUCT, QUARTER VENT, INNER
62933-16020

AL20,21..3DS,5DS

 2
62940B - DUCT ASSY, QUARTER VENT, LH
62932-16010

AL20,21..3DS,5DS

 1
Common parts
90109-05010
90109-05020
90159-60312
90179-05095
90189-04002
90189-06034
90202-05017
90430-04002
93540-64014
