AL21-ZHHNS (1982)
Toyota Corsa/Tercel
ILLUST NO. 1 OF 2(8205-8408)DX,EX,GX,VC,VE,VL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71011-16010 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16010 |
AL2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1627003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1627002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1627016 |
AL2#..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71071-1627006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1627103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1652008 |
AL20,21..(3DS,5DS)..(GX,VL) FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1627003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1627002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1627006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1627016 |
AL2#..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71071-1627103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1652008 |
AL20,21..(3DS,5DS)..VL FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1653016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71073-1654108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1653016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71073-1654108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL2#..DX,EX,GX,VC,VE,VL L=390 |
2 | ||
| 90580-16060 |
AL2#..DX,EX,GX,VC,VE,VL L=490 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL2#..DX,EX,GX,VC,VE,VL L=390 |
2 | ||
| 90580-16060 |
AL2#..DX,EX,GX,VC,VE,VL L=490 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL2#..DX,EX,GX,VC,VE,VL L=390 |
2 | ||
| 90580-16060 |
AL2#..DX,EX,GX,VC,VE,VL L=490 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1624002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1653016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71074-1624003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1624006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1624103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1638108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1624002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1653016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71074-1624003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1624006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1624103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1638108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1639016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71410-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1655008 |
AL20,21..(3DS,5DS)..(GX,VL) FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-1639016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71420-1654008 |
AL20,21..(3DS,5DS)..(GX,VL) FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71420-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1631006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1631002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1631003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1655016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71430-1631103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1658108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1631006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1631002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1631003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1655016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71430-1631103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1658108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1637006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1650016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71440-1637003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1637103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1653108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71440-1637002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1637006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1650016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71440-1637003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1637103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1653108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71440-1637002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16040 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16040 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-16050 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71551-16100 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-16050 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71551-16100 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-16050 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71551-16100 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-16050 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71551-16100 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10051 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630-16060 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10051 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630-16060 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10051 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71640-12270 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630-16060 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10051 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71640-12270 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630-16060 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71753-1602001 |
AL20,21..(3DS,5DS)..(GX,VL) BLACK,BLACK |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1603103 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1603102 |
AL20,21..(3DS,5DS)..(GX,VL) DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71910-1606006 |
AL2#..5DS..VL CUTIE,BROWN,BROWN,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001013 |
AL2# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006002 |
AL20,21..(3DS,5DS)..(GX,VL) ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
AL2# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
AL20,21 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AL2# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006013 |
AL2# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001025 |
AL2# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL2# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001013 |
AL2# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006002 |
AL20,21..(3DS,5DS)..(GX,VL) ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
AL2# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
AL20,21 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AL2# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006013 |
AL2# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001025 |
AL2# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL2# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73516-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 73508-16010 |
AL21..5DS..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73515-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 73507-16010 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90468-04137 | ||||
| 90523-08001 | ||||
| 93316-16014 | ||||
| 93560-14008 | ||||

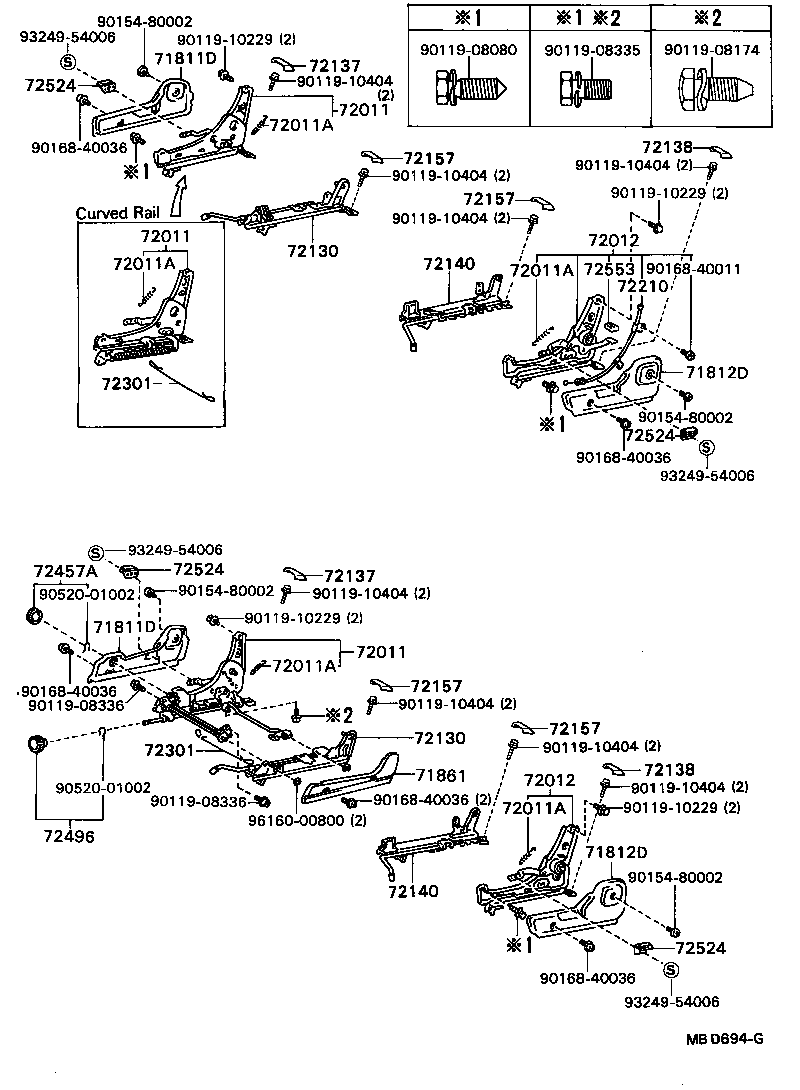

ILLUST NO. 1 OF 2(8408- )DX,EX,GX,VC,VE,VL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71011-16010 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16010 |
AL2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1627003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1627002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1627016 |
AL2#..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71071-1627006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1627103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1652008 |
AL20,21..(3DS,5DS)..(GX,VL) FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1627003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1627002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1627006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1627016 |
AL2#..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71071-1627103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1652008 |
AL20,21..(3DS,5DS)..VL FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1653016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71073-1654108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL2#..DX,EX,GX,VC,VE,VL L=390 |
2 | ||
| 90580-16060 |
AL2#..DX,EX,GX,VC,VE,VL L=490 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL2#..DX,EX,GX,VC,VE,VL L=390 |
2 | ||
| 90580-16060 |
AL2#..DX,EX,GX,VC,VE,VL L=490 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1624002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1653016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71074-1624003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1624006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1624103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1638108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1639016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71410-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1655008 |
AL20,21..(3DS,5DS)..(GX,VL) FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1629006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1629002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-1639016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71420-1654008 |
AL20,21..(3DS,5DS)..(GX,VL) FB,SOPHIA OR CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71420-1629003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1629103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1631006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1631002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1631003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1655016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71430-1631103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1658108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1637006 |
AL2#..GX,VL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1650016 |
AL2#..5DS..VL FB,CUTIE,BROWN,BROWN,TRIM3# |
1 | ||
| 71440-1637003 |
AL2#..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1637103 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1653108 |
AL20,21..(3DS,5DS)..VL FB,CUTIE,IVORY,IVORY,TRIM3# |
1 | ||
| 71440-1637002 |
AL2#..GX,VL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16040 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16040 |
AL2#..DX,EX,GX,VC,VE,VL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-16050 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71551-16100 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-16050 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71551-16100 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10051 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630-16060 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10051 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71640-12270 |
AL2#..DX,GX,VC,VL |
1 | ||
| 71630-16060 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 71753-1602001 |
AL20,21..(3DS,5DS)..(GX,VL) BLACK,BLACK |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1603103 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1603102 |
AL20,21..(3DS,5DS)..(GX,VL) DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71910-1606006 |
AL2#..5DS..VL CUTIE,BROWN,BROWN,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001013 |
AL2# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006002 |
AL20,21..(3DS,5DS)..(GX,VL) ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
AL2# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
AL20,21 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AL2# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006013 |
AL2# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001025 |
AL2# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL2# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001013 |
AL2# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006002 |
AL20,21..(3DS,5DS)..(GX,VL) ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
AL2# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
AL20,21 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AL2# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006013 |
AL2# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001025 |
AL2# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL2# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73516-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 73508-16010 |
AL21..5DS..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73515-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 73507-16010 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-40616 | ||||
| 93560-14008 | ||||

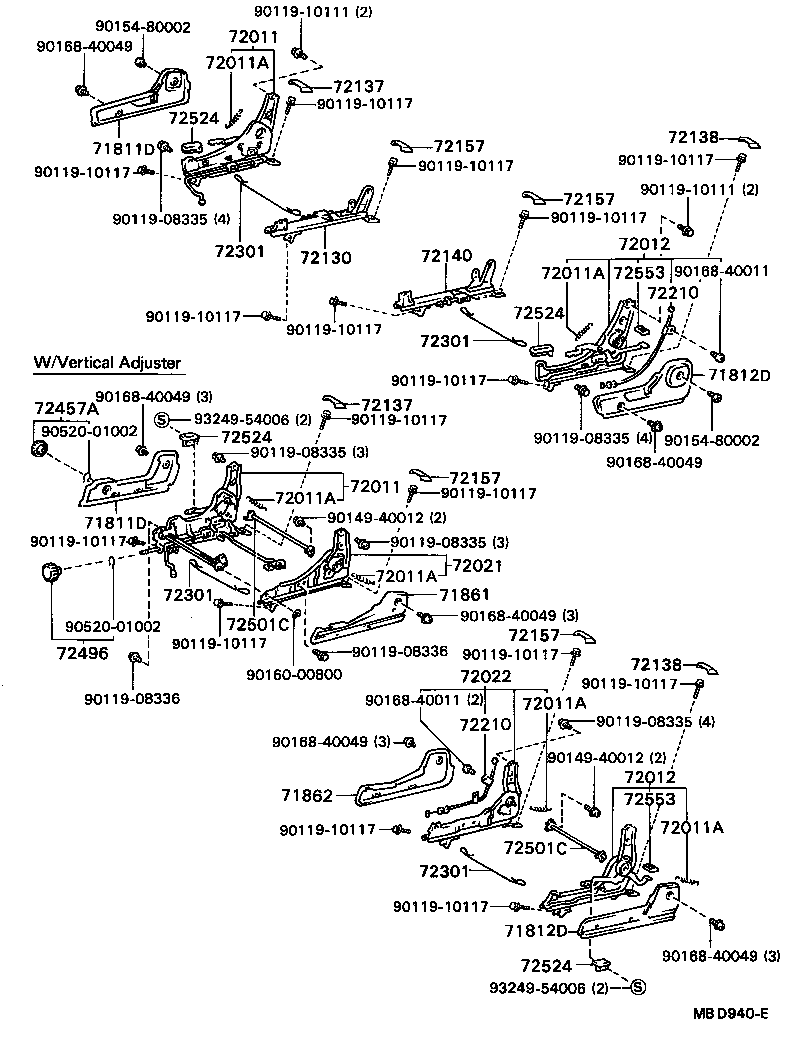

ILLUST NO. 2 OF 2(8408- )DX,EX,GX,VC,VE,VL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603013 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1602002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1604002 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603013 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1602002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1604002 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1603013 |
AL2#..DX,EX,GX,VC,VE,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603002 |
AL20,21..(3DS,5DS)..VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1603013 |
AL2#..DX,EX,GX,VC,VE,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603002 |
AL20,21..(3DS,5DS)..VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16080 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72010-16130 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16080 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72010-16130 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16080 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72010-16130 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72020-16080 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72020-16080 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-16030 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-16030 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-16030 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-16030 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16050 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72301-16010 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301-16030 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16050 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72301-16010 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301-16030 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403012 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72496-3201002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08174 | ||||
| 90119-08335 | ||||
| 90119-08336 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
ILLUST NO. 2 OF 2(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603013 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1602002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1604002 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603013 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1602002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1604002 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1603013 |
AL2#..DX,EX,GX,VC,VE,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603002 |
AL20,21..(3DS,5DS)..VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1603003 |
AL2#..DX,GX,VC,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603006 |
AL2#..DX,GX,VC,VL BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1603002 |
AL2#..DX,GX,VC,VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1603013 |
AL2#..DX,EX,GX,VC,VE,VL GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603002 |
AL20,21..(3DS,5DS)..VL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1601002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16080 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72010-16130 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16080 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72010-16130 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72011-16020 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2#..5DS..VL CUTIE |
4 | ||
| 90506-20046 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,RH |
1 | ||
| 90506-18015 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE,LH |
1 | ||
| 90506-18015 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72020-16080 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72020-16080 |
AL2#..(4DS,5DS)..(DX,GX,VC,VL) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16010 |
AL2#..5DS..VL CUTIE |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-16030 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-16030 |
AL2#..DX,GX,VC,VL |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16050 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72301-16010 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301-16030 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16050 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72301-16010 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301-16030 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16050 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72301-16010 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301-16030 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16050 |
AL20,21..(3DS,5DS)..(GX,VL) SOPHIA OR CUTIE |
1 | ||
| 72301-16010 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72301-16030 |
AL2#..DX,GX,VC,VL |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403012 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72496-3201002 |
AL2#..5DS..VL CUTIE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
AL2#..5DS..VL CUTIE |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
AL2#..5DS..VL CUTIE |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401002 |
AL2#..DX,GX,VC,VL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401036 |
AL2#..DX,GX,VC,VL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401036 |
AL2#..DX,GX,VC,VL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401003 |
AL2#..DX,GX,VC,VL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209022 |
AL20,21..(3DS,5DS)..(GX,VL) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005002 |
AL2#..5DS..VL CUTIE,RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401002 |
AL2#..DX,GX,VC,VL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401003 |
AL2#..DX,GX,VC,VL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203022 |
AL20,21..(3DS,5DS)..(GX,VL) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-2004002 |
AL2#..5DS..VL CUTIE,LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08336 | ||||
| 90119-10111 | ||||
| 90119-10117 | ||||
| 90149-40012 | ||||
| 90154-80002 | ||||
| 90160-00800 | ||||
| 90168-40011 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
