AL21-ZHHNS (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

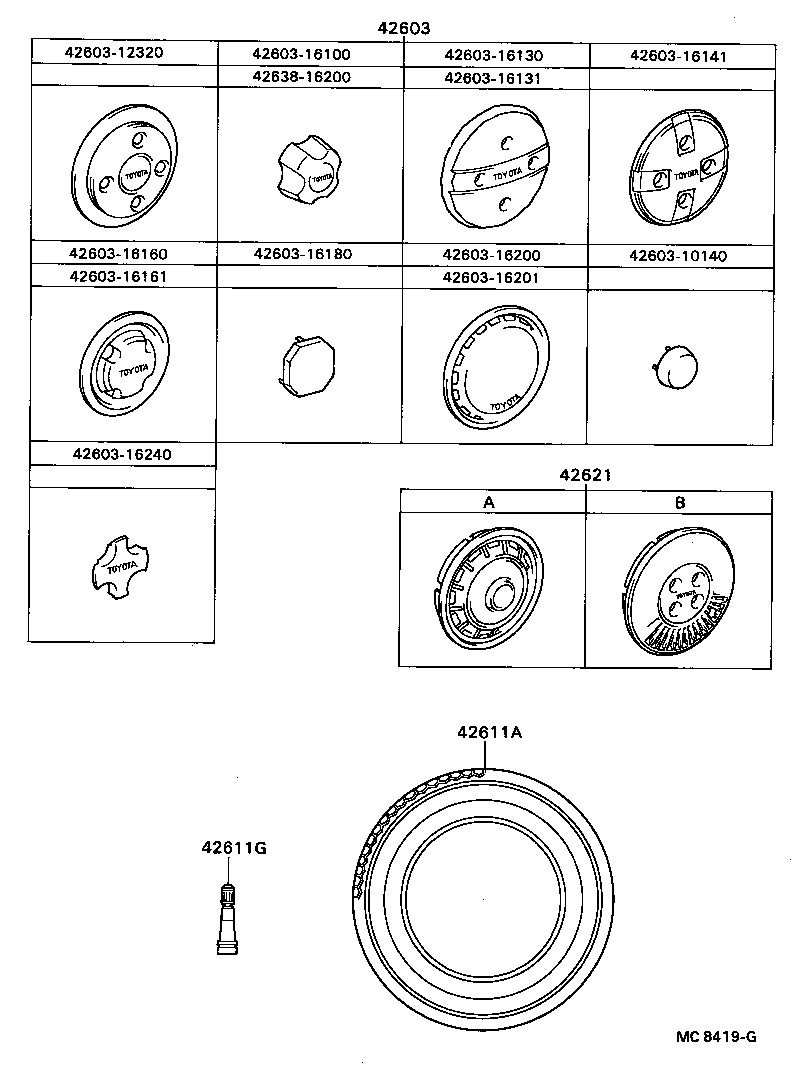

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 42603 4260310140 4260312320 4260316100 4260316130 4260316131 4260316141 4260316160 4260316161 4260316180 4260316200 4260316201 4260316240 42611A 42611G 42621 4263816200
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-16100

AL2#..DX,GX,VC,VL

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-16120

AL20,21..DX,EX,GX,VC,VE,VL

145SR13,T/L

 5
42652-16220

AL20,21

T115/70D14,SPARE TIRE

 1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AL2#

 5
Common parts
42603-10140
42603-12320
42603-16100
42603-16130
42603-16131
42603-16141
42603-16160
42603-16161
42603-16180
42603-16200
42603-16201
42603-16240
42638-16200

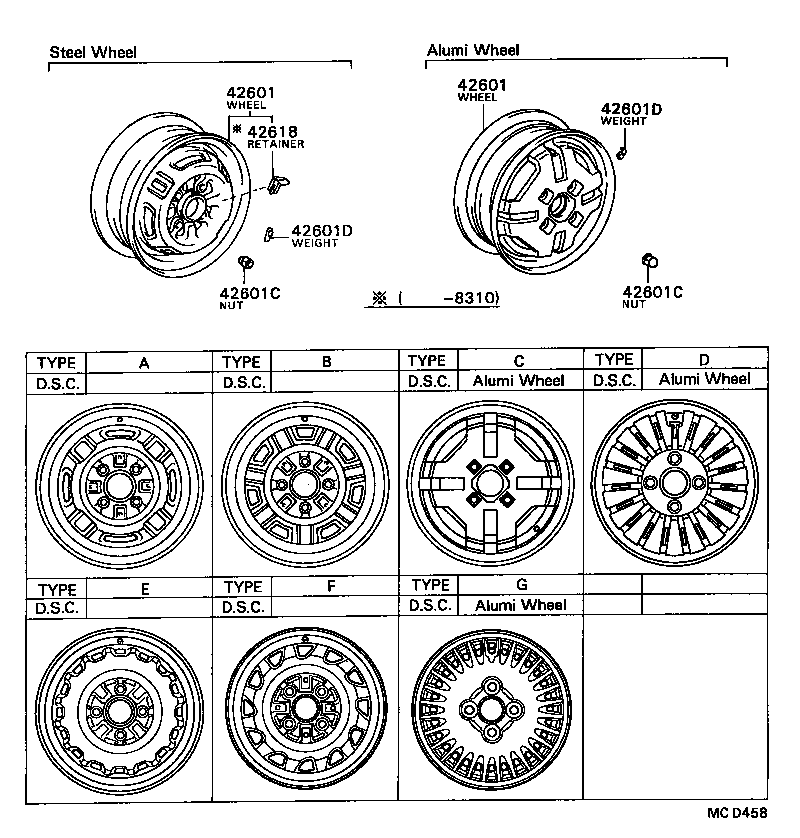

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

diagram 42601 42601 42601C 42601C 42601D 42601D 42618
Part # Description Qty Price
42601 - WHEEL, DISC
42611-16110

AL2#..DX,GX,VC,VL

4.5J-13,TYPE A

 5
42611-16110

AL20,21..DX,EX,GX,VC,VE,VL

4.5J-13,TYPE A

 5
42611-16200

AL20,21

14X4T,4T-14,SPARE TIRE

 1
42601 - WHEEL, DISC
42611-16110

AL2#..DX,GX,VC,VL

4.5J-13,TYPE A

 5
42611-16110

AL20,21..DX,EX,GX,VC,VE,VL

4.5J-13,TYPE A

 5
42611-16200

AL20,21

14X4T,4T-14,SPARE TIRE

 1
42601C - NUT, HUB (FOR AXLE)
90942-01027

AL2#..TER

W/WHEEL HUB ORNAMENT

 16
42601C - NUT, HUB (FOR AXLE)
90942-01027

AL2#..TER

W/WHEEL HUB ORNAMENT

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

AL2#

20G,厚さ=8,20G

 1
90942-03020

AL2#

30G,厚さ=10,30G

 1
90942-03022

AL2#

40G,厚さ=9.5,40G

 1
90942-03025

AL2#

50G,厚さ=9.5,50G

 1
90942-03031

AL2#

80G,厚さ=9.5,80G

 1
90942-03027

AL2#

60G,厚さ=9.5,60G

 1
90942-03029

AL2#

70G,厚さ=9.5,70G

 1
90942-03101

AL2#

45G,45G

 1
90942-03099

AL2#

25G,25G

 1
90942-03100

AL2#

35G,35G

 1
90942-03041

AL2#

10G,厚さ=7.5,10G

 1
90942-03108

AL2#

65G,65G

 1
90942-03098

AL2#

15G,15G

 1
90942-03102

AL2#

55G,55G

 1
90942-03109

AL2#

75G,75G

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

AL2#

20G,厚さ=8,20G

 1
90942-03020

AL2#

30G,厚さ=10,30G

 1
90942-03022

AL2#

40G,厚さ=9.5,40G

 1
90942-03025

AL2#

50G,厚さ=9.5,50G

 1
90942-03031

AL2#

80G,厚さ=9.5,80G

 1
90942-03027

AL2#

60G,厚さ=9.5,60G

 1
90942-03029

AL2#

70G,厚さ=9.5,70G

 1
90942-03101

AL2#

45G,45G

 1
90942-03099

AL2#

25G,25G

 1
90942-03100

AL2#

35G,35G

 1
90942-03041

AL2#

10G,厚さ=7.5,10G

 1
90942-03108

AL2#

65G,65G

 1
90942-03098

AL2#

15G,15G

 1
90942-03102

AL2#

55G,55G

 1
90942-03109

AL2#

75G,75G

 1
