AL21-ZHHES (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8306)3FC

Click highlighted areas on diagram

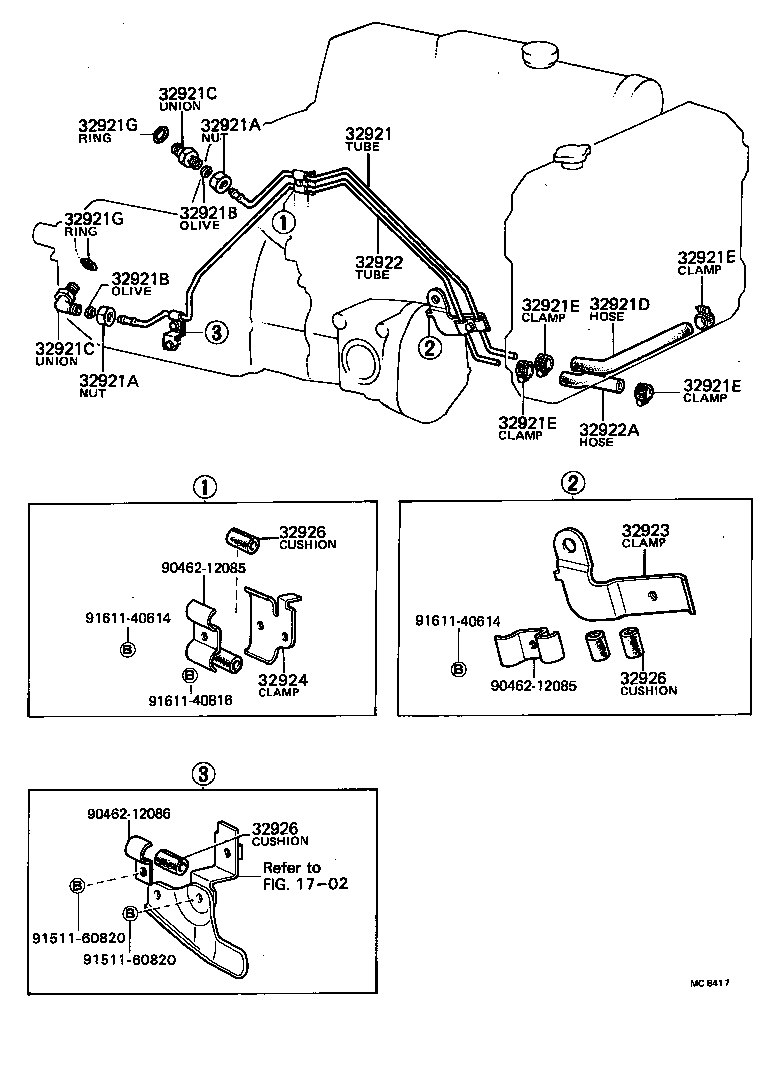

diagram 1702 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923 32924 32926 32926 32926 9046212085 9046212085 9046212086 9151160820 9151160820 9161140614 9161140614 9161140816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-16020

AL2#..3FC

 1
32904-16022

AL2#..3FC

 1
32904-16023

AL2#..3FC

 1
32904-16021

AL2#..3FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AL2#..3FC

 2
90402-14004

AL2#..3FC

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AL2#..3FC

 2
90402-14004

AL2#..3FC

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

AL2#..3FC

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

AL2#..3FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13003

AL2#..3FC

INLET

 1
90407-14003

AL2#..3FC

OUTLET

 1
90407-13005

AL2#..3FC

OUTLET

 1
90404-14007

AL2#..3FC

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13003

AL2#..3FC

INLET

 1
90407-14003

AL2#..3FC

OUTLET

 1
90407-13005

AL2#..3FC

OUTLET

 1
90404-14007

AL2#..3FC

INLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-16010

AL2#..3FC

L=340

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AL2#..3FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AL2#..3FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-16020

AL2#..3FC

 1
32905-16032

AL2#..3FC

 1
32905-16031

AL2#..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-16010

AL2#..3FC

L=340

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-16010

AL2#..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-16010

AL2#..3FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL2#..3FC

長さ=25,内径=8

 5
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL2#..3FC

長さ=25,内径=8

 5
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL2#..3FC

長さ=25,内径=8

 5
Common parts
90462-12085
90462-12086
91511-60820
91611-40614
91611-40816
Linked diagrams
1702

(8306- )3FC

Click highlighted areas on diagram

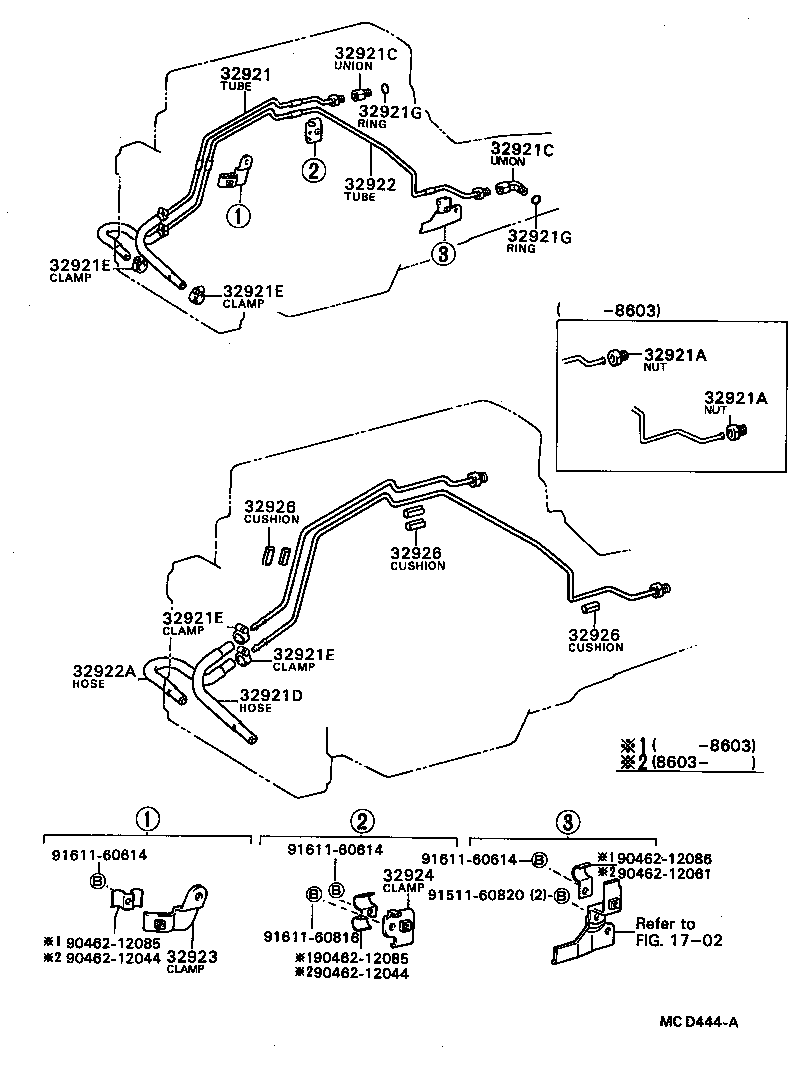

diagram 1702 32921 32921A 32921A 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923 32924 32926 32926 32926 9046212044 9046212044 9046212061 9046212085 9046212085 9046212086 9151160820 9161160614 9161160614 9161160614 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-16020

AL2#..3FC

 1
32904-16022

AL2#..3FC

 1
32904-16023

AL2#..3FC

 1
32904-16021

AL2#..3FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AL2#..3FC

 2
90402-14004

AL2#..3FC

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AL2#..3FC

 2
90402-14004

AL2#..3FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13003

AL2#..3FC

INLET

 1
90407-14003

AL2#..3FC

OUTLET

 1
90407-13005

AL2#..3FC

OUTLET

 1
90404-14007

AL2#..3FC

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13003

AL2#..3FC

INLET

 1
90407-14003

AL2#..3FC

OUTLET

 1
90407-13005

AL2#..3FC

OUTLET

 1
90404-14007

AL2#..3FC

INLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-16010

AL2#..3FC

L=340

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AL2#..3FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AL2#..3FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AL2#..3FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-16020

AL2#..3FC

 1
32905-16032

AL2#..3FC

 1
32905-16031

AL2#..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-16010

AL2#..3FC

L=340

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-16010

AL2#..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-16010

AL2#..3FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL2#..3FC

長さ=25,内径=8

 5
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL2#..3FC

長さ=25,内径=8

 5
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL2#..3FC

長さ=25,内径=8

 5
Common parts
90462-12044
90462-12061
90462-12085
90462-12086
91511-60820
91611-60614
91611-60816
Linked diagrams
1702
