AL21-ZGMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

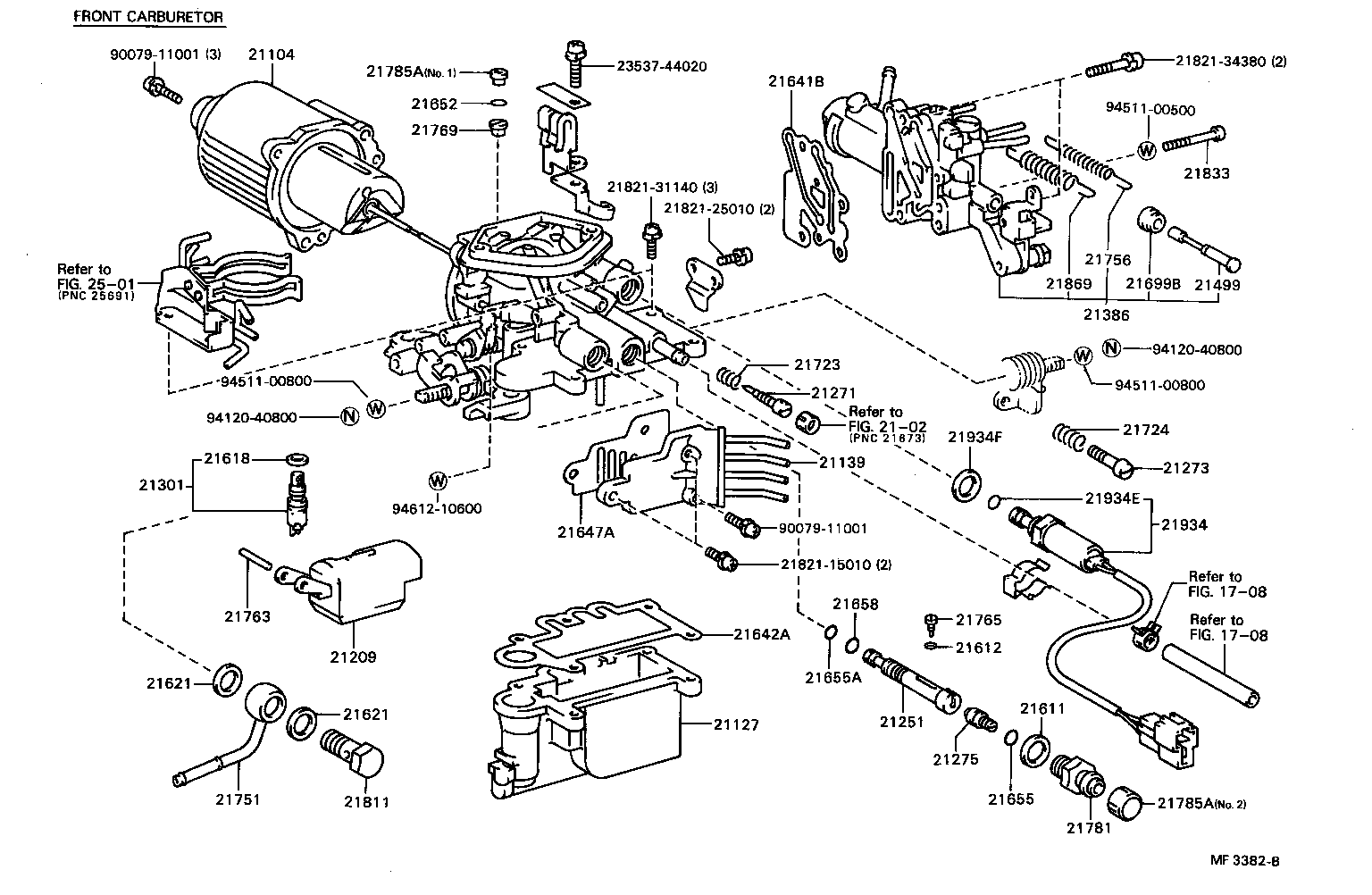

ILLUST NO. 1 OF 2(8408- )3ASU

Click highlighted areas on diagram

diagram 1708 1708 2102 21104 21127 21139 21209 21251 21271 21273 21275 21301 21386 21499 21611 21612 21618 21621 21621 21641B 21642A 21647A 21652 21655 21655A 21658 21699B 21723 21724 21751 21756 21763 21765 21769 21781 21785A 21785A 21811 2182115010 2182125010 2182131140 2182134380 21833 21869 21934 21934E 21934F 2353744020 2501 9007911001 9007911001 9412040800 9412040800 9451100500 9451100800 9451100800 9461210600
Part # Description Qty Price
21104 - CHAMBER SUB-ASSY, SUCTION
21014-15390

3ASU..AL21

FR CABURETOR

 1
21014-15400

3ASU..AL21

RR CABURETOR

 1
21127 - BOWL, FLOAT
21127-15370

3ASU..AL21

RR CARBURETOR

 1
21251 - JET, 1ST MAIN
21251-11090

2AU,3A#..AL2#

 2
21251-15460

2AU,3A#..AL2#

 2
21275 - SCREW, ADJUSTING
21275-11090

2AU,3A#..AL2#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

2AU,3A#..AL2#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2AU,3A#..AL2#

 4
21621 - GASKET, UNION NIPPLE
21633-24030

2AU,3A#..AL2#

 4
21641B - GASKET, COMPENSATOR
21641-11090

2AU,3A#..AL2#

 2
21642A - GASKET, FLOAT BOWL
21642-11090

2AU,3A#..AL2#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-11090

2AU,3A#..AL2#

 2
21781-15460

2AU,3A#..AL2#

 2
21811 - BOLT, UNION NIPPLE
21811-11060

2AU,3A#..AL2#

 2
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-33010

2AU,3A#..AL2#

 2
Common parts
21821-15010
21821-25010
21821-31140
21821-34380
23537-44020
90079-11001
94120-40800
94511-00500
94511-00800
94612-10600
Linked diagrams
1708
2102
2501

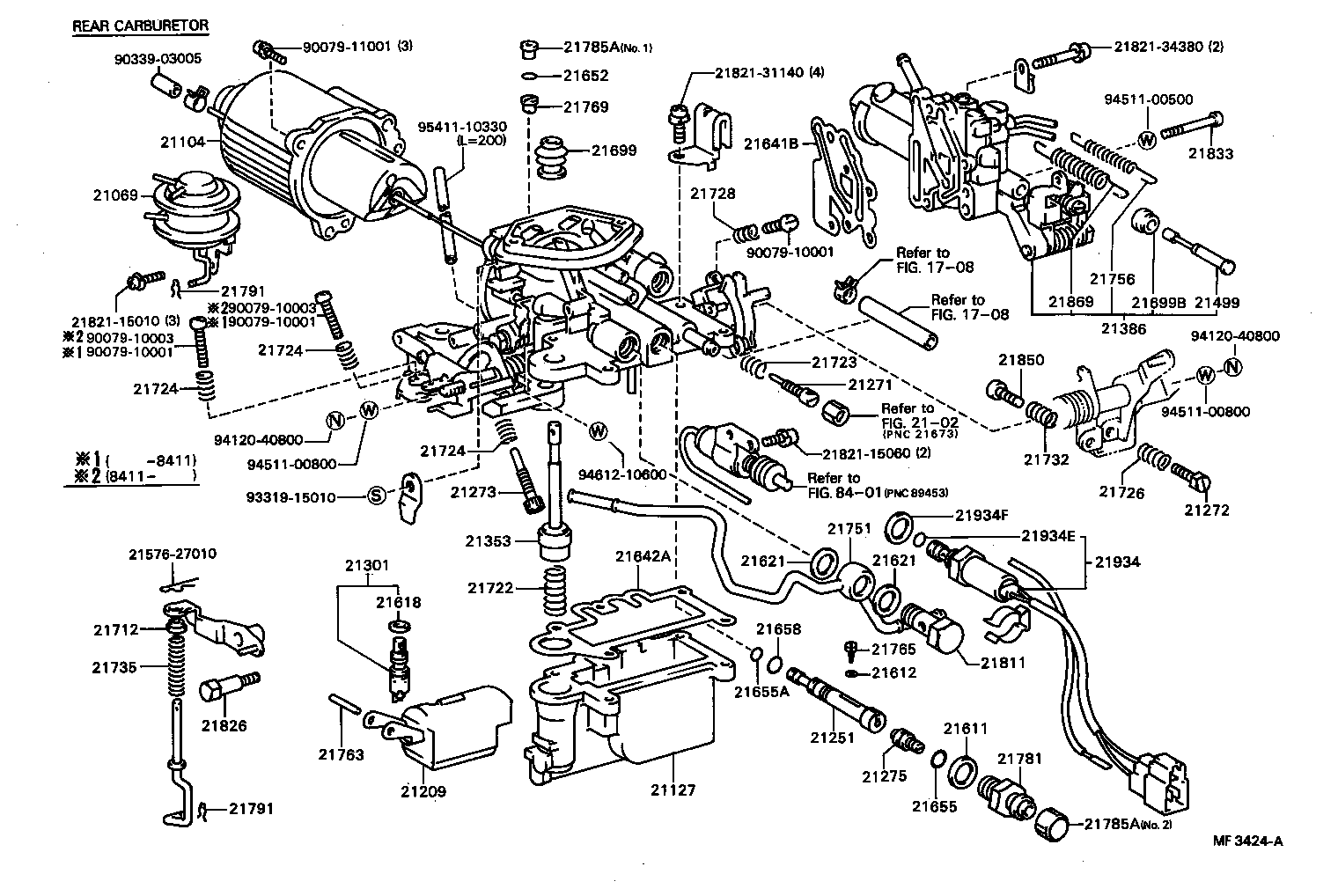

ILLUST NO. 2 OF 2(8408- )3ASU

Click highlighted areas on diagram

diagram 1708 1708 2102 21069 21104 21127 21209 21251 21271 21272 21273 21275 21301 21353 21386 21499 2157627010 21611 21612 21618 21621 21621 21641B 21642A 21652 21655 21655A 21658 21699 21699B 21712 21722 21723 21724 21724 21724 21726 21728 21732 21735 21751 21756 21763 21765 21769 21781 21785A 21785A 21791 21791 21811 2182115010 2182115060 2182131140 2182134380 21826 21833 21850 21869 21934 21934E 21934F 8401 9007910001 9007910001 9007910001 9007910003 9007910003 9007911001 9033903005 9331915010 9412040800 9412040800 9451100500 9451100800 9451100800 9461210600 9541110330
Part # Description Qty Price
21104 - CHAMBER SUB-ASSY, SUCTION
21014-15390

3ASU..AL21

FR CABURETOR

 1
21014-15400

3ASU..AL21

RR CABURETOR

 1
21127 - BOWL, FLOAT
21127-15370

3ASU..AL21

RR CARBURETOR

 1
21251 - JET, 1ST MAIN
21251-11090

2AU,3A#..AL2#

 2
21251-15460

2AU,3A#..AL2#

 2
21275 - SCREW, ADJUSTING
21275-11090

2AU,3A#..AL2#

 2
21353 - PLUNGER, PUMP
21353-44101

2AU,3A#..AL2#

 1
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

2AU,3A#..AL2#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2AU,3A#..AL2#

 4
21621 - GASKET, UNION NIPPLE
21633-24030

2AU,3A#..AL2#

 4
21641B - GASKET, COMPENSATOR
21641-11090

2AU,3A#..AL2#

 2
21642A - GASKET, FLOAT BOWL
21642-11090

2AU,3A#..AL2#

 2
21699 - BOOT(FOR PUMP PLUNGER)
21699-28150

2AU,3A#..AL2#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

2AU,3A#..AL2#

 1
21735 - SPRING, PUMP ARM
21735-15250

2AU,3A#..AL2#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-11090

2AU,3A#..AL2#

 2
21781-15460

2AU,3A#..AL2#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2AU,3A#..AL2#

TYPE 1

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

2AU,3A#..AL2#

TYPE 1

 10
21811 - BOLT, UNION NIPPLE
21811-11060

2AU,3A#..AL2#

 2
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-33010

2AU,3A#..AL2#

 2
Common parts
21576-27010
21821-15010
21821-15060
21821-31140
21821-34380
90079-10001
90079-10003
90079-11001
90339-03005
93319-15010
94120-40800
94511-00500
94511-00800
94612-10600
95411-10330
