AL21-ZGMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )3ASU

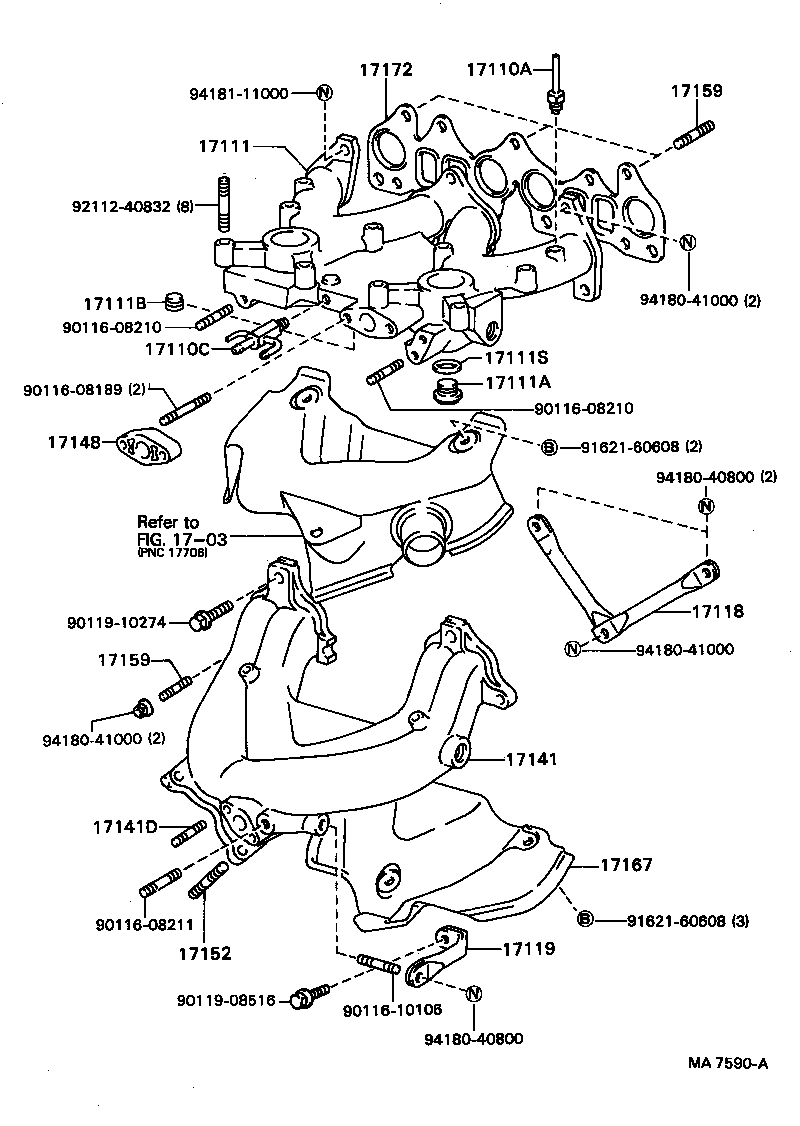

Click highlighted areas on diagram

diagram 1703 17110A 17110C 17111 17111A 17111B 17111S 17118 17119 17141 17141D 17148 17152 17159 17159 17167 17172 9011608189 9011608210 9011608210 9011608211 9011610106 9011908516 9011910274 9162160608 9162160608 9211240832 9418040800 9418040800 9418041000 9418041000 9418041000 9418111000
Part # Description Qty Price
17118 - STAY, MANIFOLD
17118-15040

2AU,3A#..AL2#

 1
17141 - MANIFOLD, EXHAUST
17140-15070

2AU,3A#..AL2#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2AU,3A#..AL2#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2AU,3A#..AL2#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

2AU,3A#..AL2#

L=44,S=12&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

2AU,3A#..AL2#

L=44,S=12&20

 3
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-15010

2AU,3A#..AL2#

 1
Common parts
90116-08189
90116-08210
90116-08211
90116-10106
90119-08516
90119-10274
91621-60608
92112-40832
94180-40800
94180-41000
94181-11000
Linked diagrams
1703
