AL21-ZEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

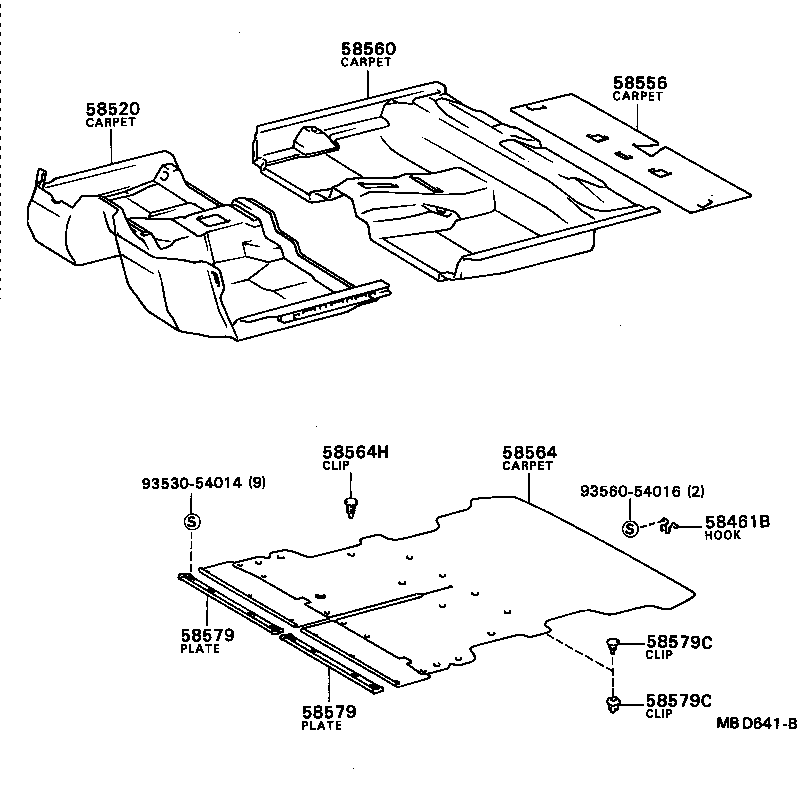

Click highlighted areas on diagram

diagram 58461B 58520 58556 58560 58564 58564H 58579 58579 58579C 58579C 9353054014 9356054016
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1626003

AL21..3FC..(EX,VE);AL2#..(3FC,5F)..(GX,SX,VL,VS)

GRAY,GRAY,TRIM1#

 1
58510-1626002

AL21..3FC..(EX,VE);AL2#..(3FC,5F)..(GX,SX,VL,VS)

DARK WINE,RED/MAROON,TRIM3#

 1
58510-1629006

AL21..3FC..(EX,VE);AL2#..(3FC,5F)..(GX,SX,VL,VS)

COLD SPEC,BROWN,BROWN,TRIM4#

 1
58510-1629003

AL21..3FC..(EX,VE);AL2#..(3FC,5F)..(GX,SX,VL,VS)

COLD SPEC,GRAY,GRAY,TRIM1#

 1
58510-1626006

AL21..3FC..(EX,VE);AL2#..(3FC,5F)..(GX,SX,VL,VS)

BROWN,BROWN,TRIM4#

 1
58510-1629002

AL21..3FC..(EX,VE);AL2#..(3FC,5F)..(GX,SX,VL,VS)

COLD SPEC,DARK WINE,RED/MAROON,TRIM3#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-1635002

AL21..4DS

DARK WINE,RED/MAROON,TRIM3#

 1
58540-1635006

AL21..4DS

BROWN,BROWN,TRIM4#

 1
58540-1635003

AL21..4DS

GRAY,GRAY,TRIM1#

 1
Common parts
93530-54014
93560-54016
