AL21-ZEMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

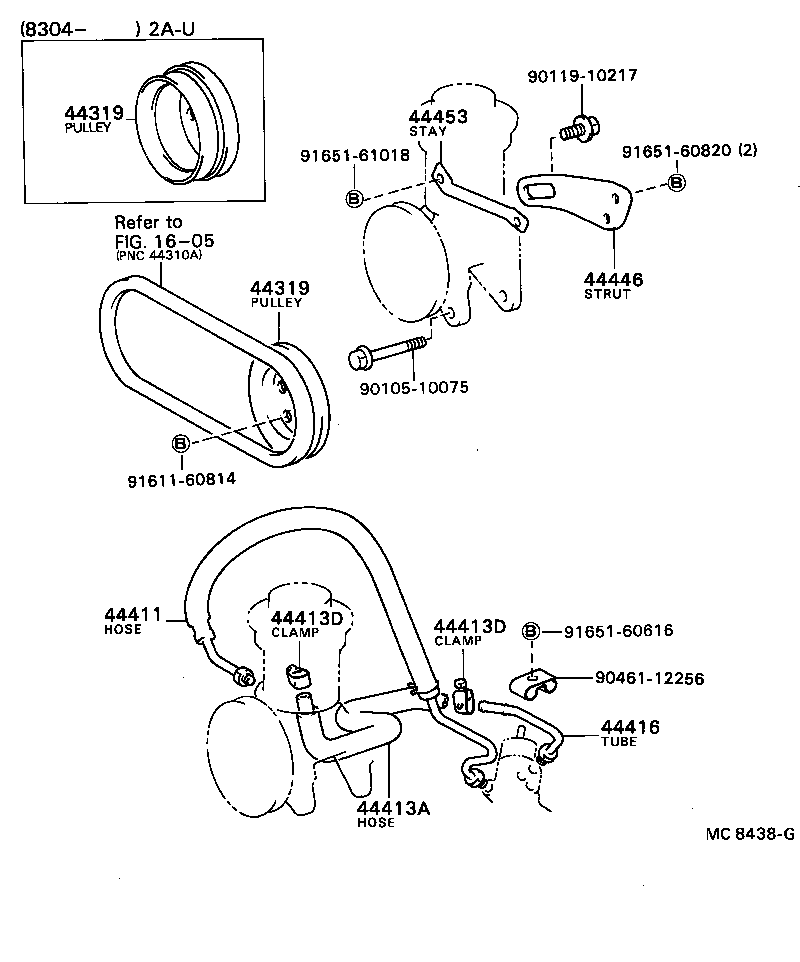

Click highlighted areas on diagram

diagram 1605 44319 44319 44411 44413A 44413D 44413D 44416 44446 44453 9010510075 9011910217 9046112256 9161160814 9165160616 9165160820 9165161018
Part # Description Qty Price
Common parts
90105-10075
90119-10217
90461-12256
91611-60814
91651-60616
91651-60820
91651-61018
Linked diagrams
1605
