AL21-ZEKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)TER

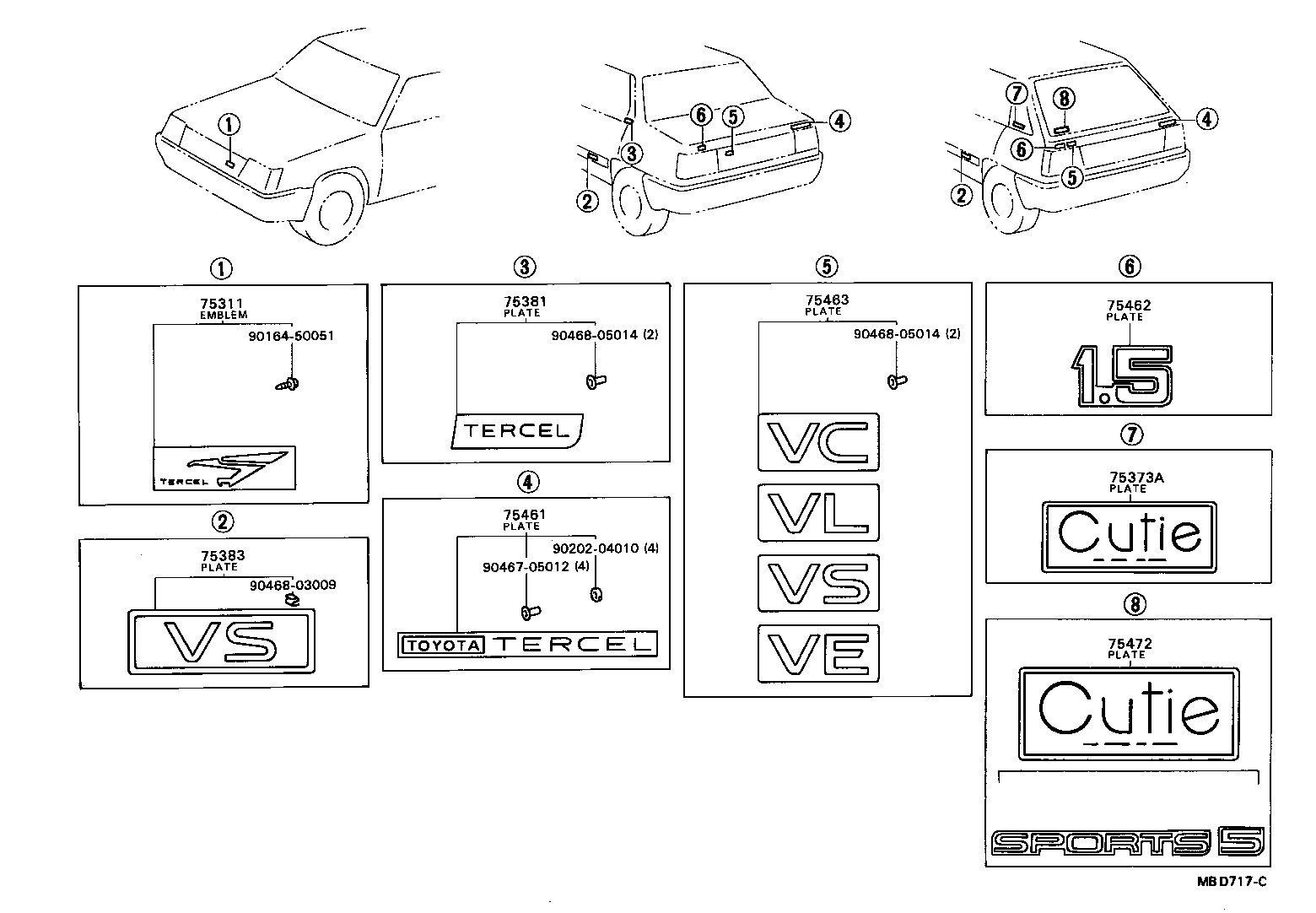

Click highlighted areas on diagram

diagram 75311 75373A 75381 75383 75461 75462 75463 75472 9016450051 9020204010 9046705012 9046803009 9046805014 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16170

AL20,21..TER

 1
75301-19245

AL2#..TER

 1
75311-16320

AL20,21..TER

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-16060

AL2#..TER..4DS

RH,TERCEL

 1
75382-16060

AL2#..TER..4DS

LH,TERCEL

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16080

AL2#..TER..4DS

TOYOTA TERCEL

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75443-16020

AL21

1.5

 1
75444-12160

AL21

1.5,1.5

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-16080

AL2#..VL

VL

 1
Common parts
90164-50051
90202-04010
90467-05012
90468-03009
90468-05014

(8408- )TER

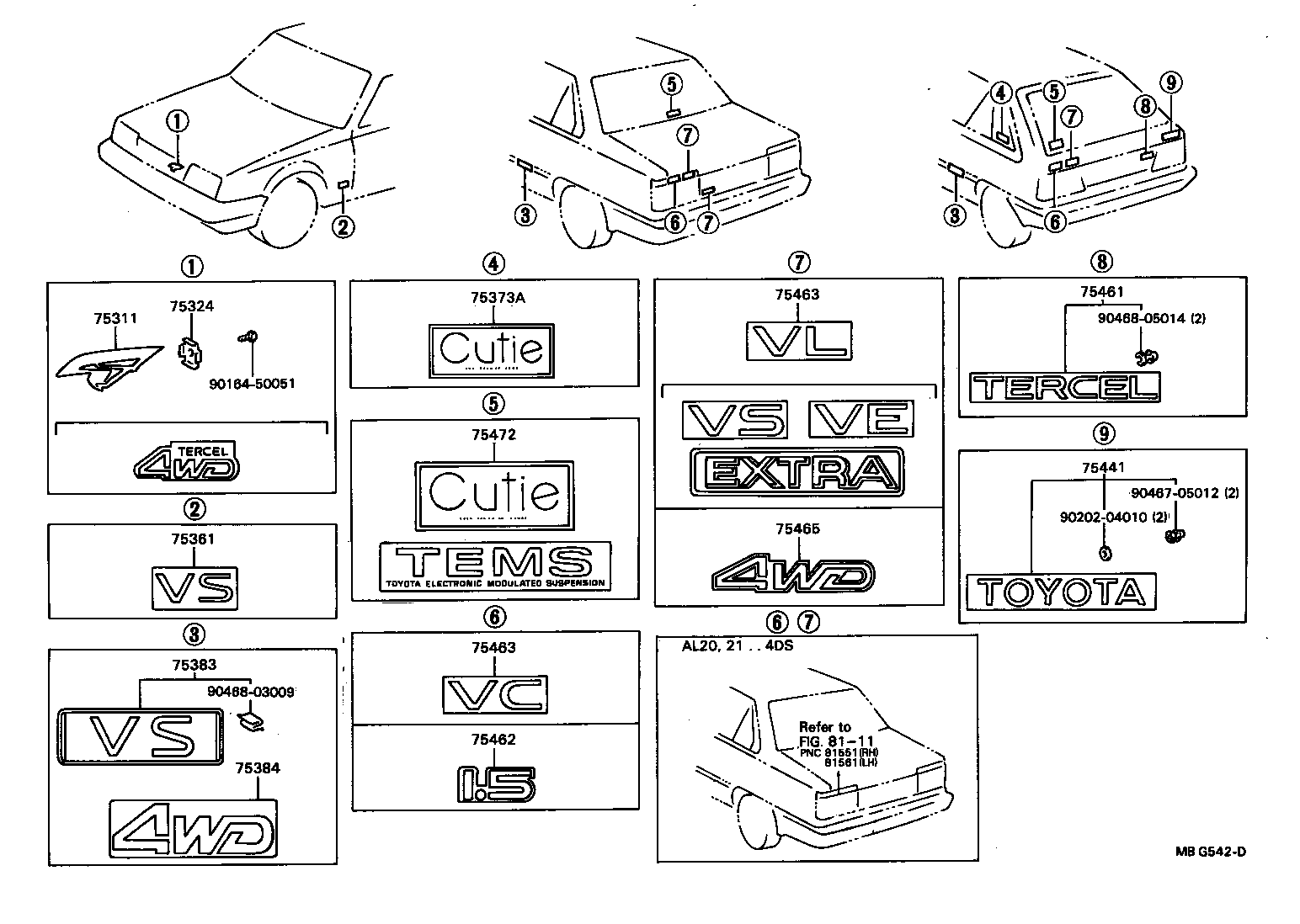

Click highlighted areas on diagram

diagram 75311 75324 75361 75373A 75383 75384 75441 75461 75462 75463 75463 75465 75472 8111 9016450051 9020204010 9046705012 9046803009 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16170

AL20,21..TER

 1
75301-19245

AL2#..TER

 1
75311-16320

AL20,21..TER

 1
75324 - RETAINER, FRONT BUMPER EMBLEM
75324-16050

AL2#..TER

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16080

AL2#..TER..4DS

TOYOTA TERCEL

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75443-16020

AL21

1.5

 1
75444-12160

AL21

1.5,1.5

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-16080

AL2#..VL

VL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-16080

AL2#..VL

VL

 1
Common parts
90164-50051
90202-04010
90467-05012
90468-03009
90468-05014
Linked diagrams
8111
