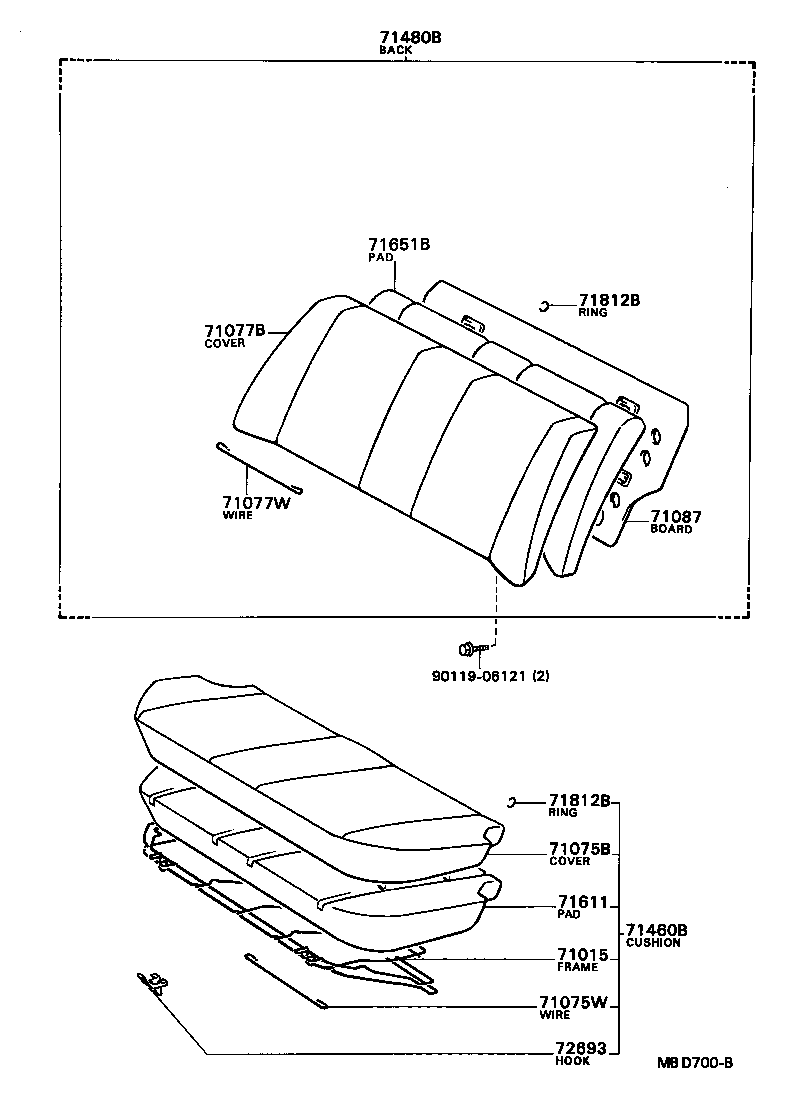

AL21-ZEKNS (1982)
Toyota Corsa/Tercel
(8205- )AL20,21..4DS..DX,GX,VC,VL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12250 |
AL20,21..4DS |
1 | ||
| 71015-16040 |
AL2#..4DS |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1676003 |
AL2#..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1676002 |
AL2#..4DS..(GX,VL) FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1676006 |
AL2#..4DS..(GX,VL) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1676105 |
AL20,21..4DS..(GX,VL) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-1676103 |
AL20,21..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1676203 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1676205 |
AL20,21..GX,VL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20015 |
AL20,21 L=900 |
3 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1658006 |
AL2#..4DS..(GX,VL) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1658003 |
AL2#..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1658105 |
AL20,21..4DS..(GX,VL) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1658002 |
AL2#..4DS..(GX,VL) FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1658103 |
AL20,21..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1658205 |
AL20,21..GX,VL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1658203 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AL2#..EX,GX,SX,VE,VL,VS L=320 |
2 | ||
| 90580-20109 |
AL2#..EX,GX,SX,VE,VL,VS L=330 |
2 | ||
| 90580-20165 |
AL2#..EX,GX,SX,VE,VL,VS L=470 |
2 | ||
| 90580-20133 |
AL20,21..4DS..(DX,GX,VC,VL) L=1240 |
1 | ||
| 90580-20051 |
AL20,21..4DS..(DX,GX,VC,VL) L=520 |
1 | ||
| 90580-20111 |
AL20,21..4DS..(DX,GX,VC,VL) L=1040 |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-16020 |
AL20,21..4DS..(DX,GX,VC,VL) |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1674002 |
AL2#..4DS..(GX,VL) FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1674006 |
AL2#..4DS..(GX,VL) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1674003 |
AL2#..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1674103 |
AL20,21..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1674105 |
AL20,21..4DS..(GX,VL) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-1674203 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1674205 |
AL20,21..GX,VL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1659006 |
AL2#..4DS..(GX,VL) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1659003 |
AL2#..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1659002 |
AL2#..4DS..(GX,VL) FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1659103 |
AL20,21..4DS..(GX,VL) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1659105 |
AL20,21..4DS..(GX,VL) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1659205 |
AL20,21..GX,VL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1659203 |
AL20,21..GX,VL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16050 |
AL20,21 |
1 | ||
| 71611-16100 |
AL20,21 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-16180 |
AL20,21..4DS..(DX,GX,VC,VL) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AL20,21..4DS |
2 | ||
| Common parts | ||||
| 90119-06121 | ||||
