AL21-ZEKNS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)

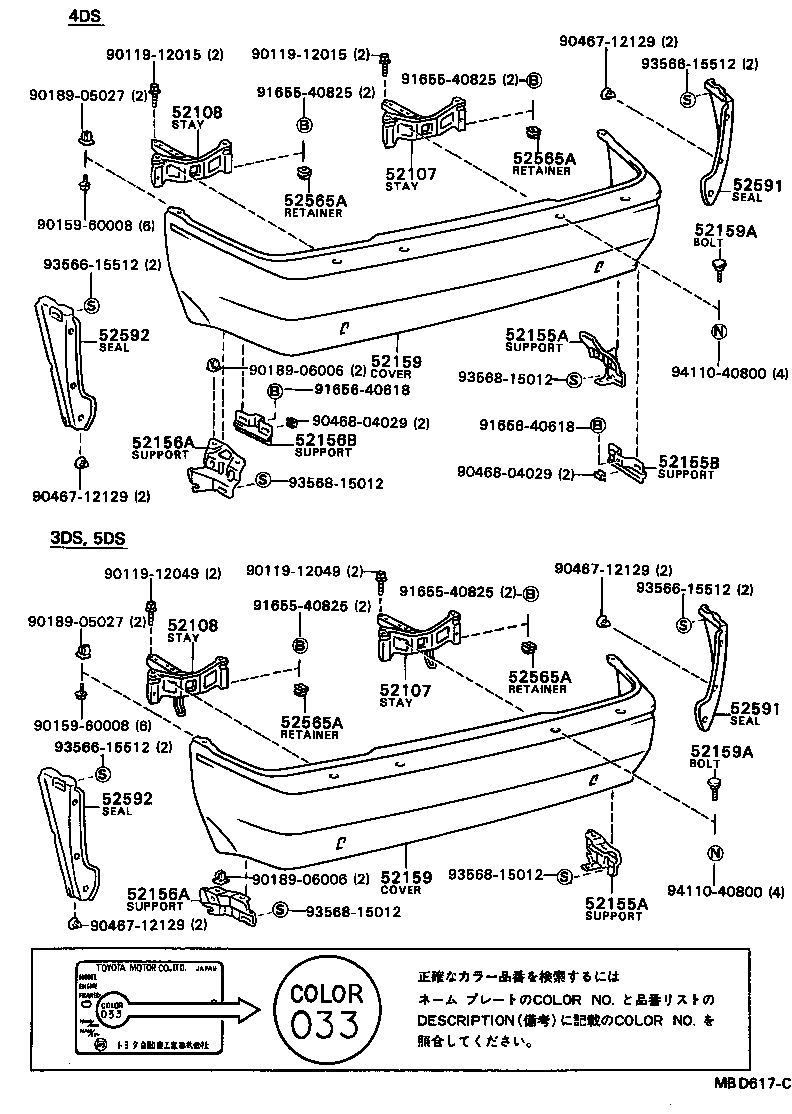

Click highlighted areas on diagram

diagram 52107 52107 52108 52108 52155A 52155A 52155B 52156A 52156A 52156B 52159 52159 52159A 52159A 52565A 52565A 52565A 52565A 52591 52591 52592 52592 9011912015 9011912015 9011912049 9011912049 9015960008 9015960008 9018905027 9018905027 9018906006 9018906006 9046712129 9046712129 9046712129 9046712129 9046804029 9046804029 9165540825 9165540825 9165540825 9165540825 9165640618 9165640618 9356615512 9356615512 9356615512 9356615512 9356815012 9356815012 9356815012 9356815012 9411040800 9411040800
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-16050

AL2#

 1
52015-16140

AL20,21..4DS

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-16050

AL2#

 1
52015-16140

AL20,21..4DS

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-16130

AL20,21..4DS

 1
52016-16050

AL2#

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-16130

AL20,21..4DS

 1
52016-16050

AL2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16071

AL2#

 1
52155-16040

AL2#..4DS

 1
52155-16070

AL2#..4DS

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16071

AL2#

 1
52155-16040

AL2#..4DS

 1
52155-16070

AL2#..4DS

 1
52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-16020

AL2#..4DS

 1
52157-16050

AL2#..4DS

 1
52157-16051

AL2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-16070

AL2#..4DS

 1
52156-16040

AL2#..4DS

 1
52156-16071

AL2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-16070

AL2#..4DS

 1
52156-16040

AL2#..4DS

 1
52156-16071

AL2#

 1
52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52157-16020

AL2#..4DS

 1
52158-16051

AL2#

 1
52158-16050

AL2#..4DS

 1
52159 - COVER, REAR BUMPER
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,6G3 ,6G5 ,558

 1
52159-1608013

AL2#..4DS

LIGHT GRAY,GRAY,038 ,147

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,6G3 ,558

 1
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,038 ,147 ,884

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,3B7 ,557 ,4C3 ,391 ,884

 1
52159-16180

AL2#..4DS

BLACK

 1
52159-1623008

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 1
52159 - COVER, REAR BUMPER
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,6G3 ,6G5 ,558

 1
52159-1608013

AL2#..4DS

LIGHT GRAY,GRAY,038 ,147

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,6G3 ,558

 1
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,038 ,147 ,884

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,3B7 ,557 ,4C3 ,391 ,884

 1
52159-16180

AL2#..4DS

BLACK

 1
52159-1623008

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 1
52159A - BOLT(FOR REAR BUMPER COVER)
90112-0803213

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 4
90112-0803213

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 4
90112-0803203

AL2#

LIGHT GRAY,GRAY,038 ,147

 4
90112-0803223

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 4
90112-0803213

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 4
90112-0803201

AL2#

BLACK,BLACK

 4
90112-0805708

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 4
90112-0803223

AL2#

OFF BLACK,GRAY,6G3 ,6G5 ,558

 4
52159A - BOLT(FOR REAR BUMPER COVER)
90112-0803213

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 4
90112-0803213

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 4
90112-0803203

AL2#

LIGHT GRAY,GRAY,038 ,147

 4
90112-0803223

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 4
90112-0803213

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 4
90112-0803201

AL2#

BLACK,BLACK

 4
90112-0805708

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 4
90112-0803223

AL2#

OFF BLACK,GRAY,6G3 ,6G5 ,558

 4
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52591 - SEAL, REAR BUMPER SIDE, RH
52591-16040

AL2#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-16040

AL2#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-16030

AL2#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-16030

AL2#

 1
Common parts
90119-12015
90119-12049
90159-60008
90189-05027
90189-06006
90467-12129
90468-04029
91655-40825
91656-40618
93566-15512
93568-15012
94110-40800

(8408- )

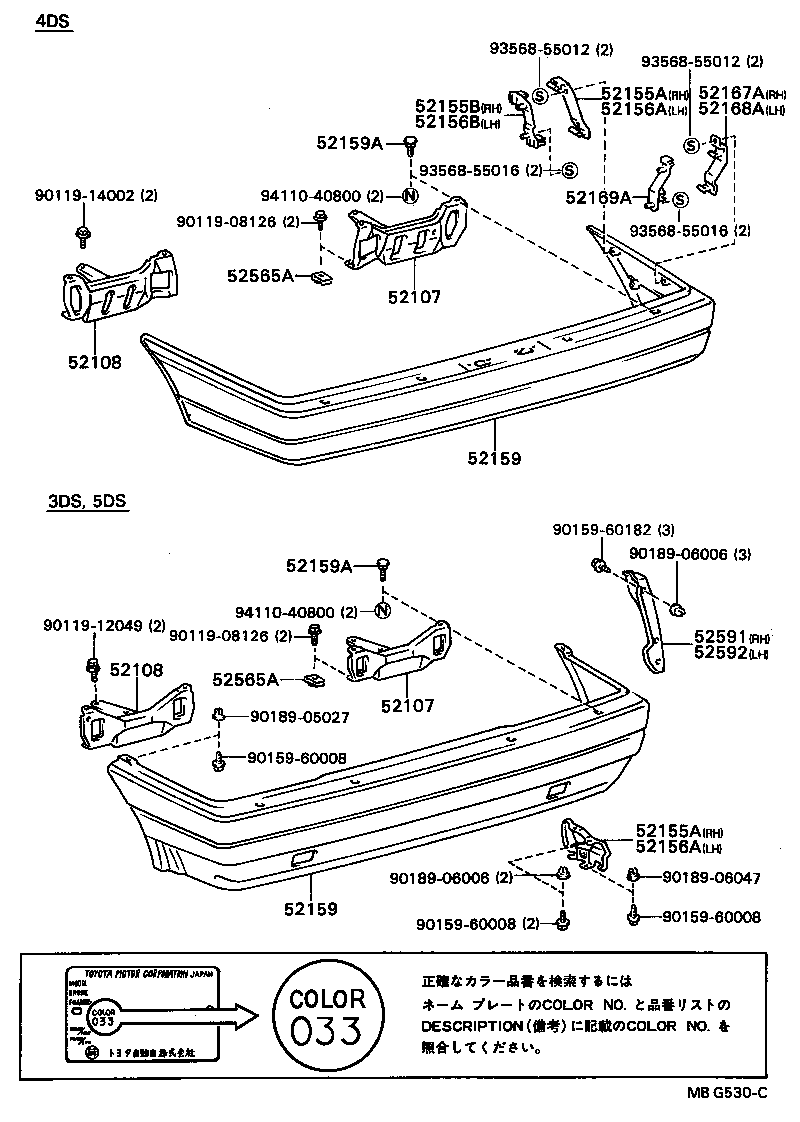

Click highlighted areas on diagram

diagram 52107 52107 52108 52108 52155A 52155A 52155B 52156A 52156A 52156B 52159 52159 52159A 52159A 52167A 52168A 52169A 52565A 52565A 52591 52592 9011908126 9011908126 9011912049 9011914002 9015960008 9015960008 9015960008 9015960182 9018905027 9018906006 9018906006 9018906047 9356855012 9356855012 9356855016 9356855016 9411040800 9411040800
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-16050

AL2#

 1
52015-16140

AL20,21..4DS

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-16050

AL2#

 1
52015-16140

AL20,21..4DS

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-16130

AL20,21..4DS

 1
52016-16050

AL2#

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-16130

AL20,21..4DS

 1
52016-16050

AL2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16071

AL2#

 1
52155-16040

AL2#..4DS

 1
52155-16070

AL2#..4DS

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16071

AL2#

 1
52155-16040

AL2#..4DS

 1
52155-16070

AL2#..4DS

 1
52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-16020

AL2#..4DS

 1
52157-16050

AL2#..4DS

 1
52157-16051

AL2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-16070

AL2#..4DS

 1
52156-16040

AL2#..4DS

 1
52156-16071

AL2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-16070

AL2#..4DS

 1
52156-16040

AL2#..4DS

 1
52156-16071

AL2#

 1
52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52157-16020

AL2#..4DS

 1
52158-16051

AL2#

 1
52158-16050

AL2#..4DS

 1
52159 - COVER, REAR BUMPER
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,6G3 ,6G5 ,558

 1
52159-1608013

AL2#..4DS

LIGHT GRAY,GRAY,038 ,147

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,6G3 ,558

 1
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,038 ,147 ,884

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,3B7 ,557 ,4C3 ,391 ,884

 1
52159-16180

AL2#..4DS

BLACK

 1
52159-1623008

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 1
52159 - COVER, REAR BUMPER
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,6G3 ,6G5 ,558

 1
52159-1608013

AL2#..4DS

LIGHT GRAY,GRAY,038 ,147

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,6G3 ,558

 1
52159-1608023

AL2#..4DS

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,038 ,147 ,884

 1
52159-1608003

AL2#..4DS

DARK GRAY,GRAY,3B7 ,557 ,4C3 ,391 ,884

 1
52159-16180

AL2#..4DS

BLACK

 1
52159-1623008

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 1
52159A - BOLT(FOR REAR BUMPER COVER)
90112-0803213

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 4
90112-0803213

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 4
90112-0803203

AL2#

LIGHT GRAY,GRAY,038 ,147

 4
90112-0803223

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 4
90112-0803213

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 4
90112-0803201

AL2#

BLACK,BLACK

 4
90112-0805708

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 4
90112-0803223

AL2#

OFF BLACK,GRAY,6G3 ,6G5 ,558

 4
52159A - BOLT(FOR REAR BUMPER COVER)
90112-0803213

AL2#

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3

 4
90112-0803213

AL2#

DARK GRAY,GRAY,038 ,147 ,884

 4
90112-0803203

AL2#

LIGHT GRAY,GRAY,038 ,147

 4
90112-0803223

AL2#

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

 4
90112-0803213

AL2#

DARK GRAY,GRAY,4C3 ,558 ,884

 4
90112-0803201

AL2#

BLACK,BLACK

 4
90112-0805708

AL20,21..VL

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,WHITE,WHITE,041

 4
90112-0803223

AL2#

OFF BLACK,GRAY,6G3 ,6G5 ,558

 4
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-16030

AL2#..4DS

 1
52167-16031

AL2#

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52167-16031

AL2#

 1
52167-16030

AL2#..4DS

 1
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-16020

AL2#..4DS

 2
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52591 - SEAL, REAR BUMPER SIDE, RH
52591-16040

AL2#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-16030

AL2#

 1
Common parts
90119-08126
90119-12049
90119-14002
90159-60008
90159-60182
90189-05027
90189-06006
90189-06047
93568-55012
93568-55016
94110-40800
