AL21-ZEHNS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

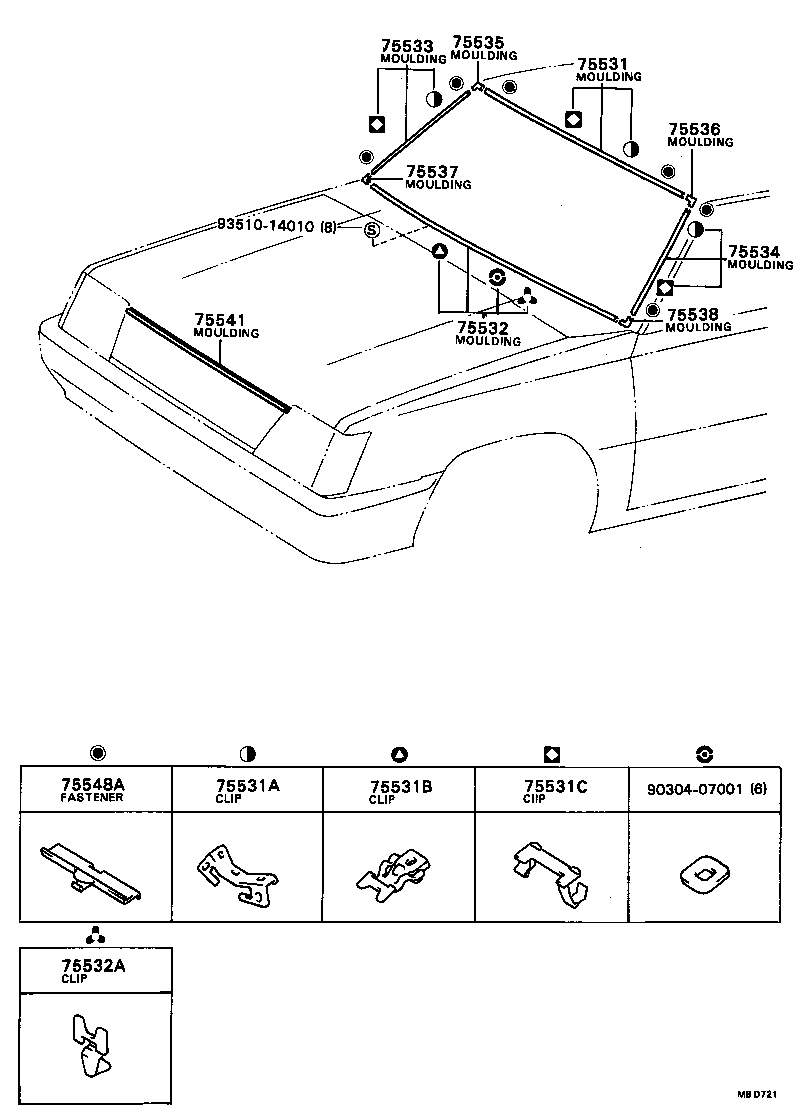

Click highlighted areas on diagram

diagram 75531 75531A 75531B 75531C 75532 75532A 75533 75534 75535 75536 75537 75538 75541 75548A 9030407001 9351014010
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-16030

AL2#

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-16020

AL2#

 11
75531B - CLIP, WINDSHIELD MOULDING SET, NO.2
75546-16020

AL2#

 8
75531C - CLIP, WINDSHIELD MOULDING SET, NO.3
75547-16010

AL2#

 6
75532 - MOULDING, WINDSHIELD, LOWER
75535-16030

AL2#

 1
75532A - CLIP, WINDSHIELD MOULDING SET
75547-16020

AL2#

 2
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-16030

AL2#

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-16030

AL2#

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-16030

AL2#

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75542-16030

AL2#

 1
75537 - MOULDING, WINDSHIELD CORNER, LOWER RH
75543-16030

AL2#

 1
75538 - MOULDING, WINDSHIELD CORNER, LOWER LH
75544-16030

AL2#

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16010

AL2#

 6
75548-22060

AL2#

 6
75548-12070

AL2#

 6
75548-16010

AL2#

 6
Common parts
90304-07001
93510-14010
