AL21-ZEHNS (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )2AU,3AHU,3AU

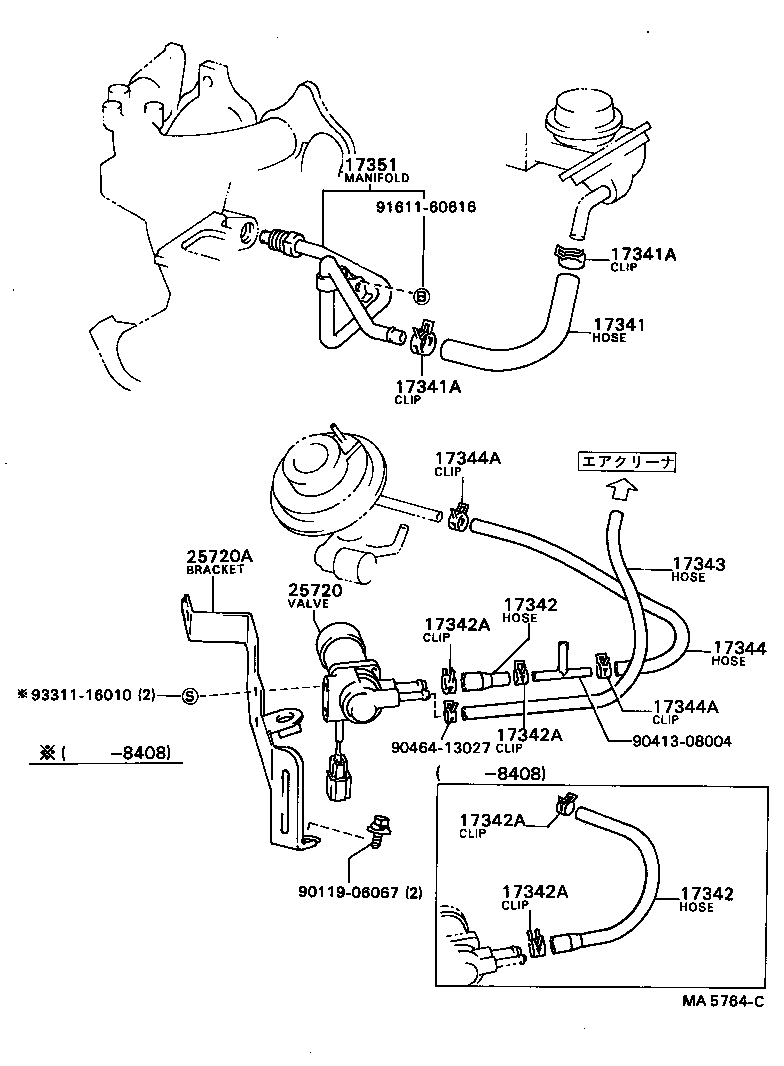

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17342 17342 17342A 17342A 17342A 17342A 17343 17344 17344A 17344A 17351 25720 25720A 9011906067 9041308004 9046413027 9161160616 9331116010
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-15061

2AU,3A#..AL2#

 1
17341-15061

2AU,3AU..AL2#

 1
17341-15060

2AU,3A#..AL2#

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-23003

2AU,3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-23003

2AU,3A#..AL2#

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-15030

2AU,3A#..AL2#

 1
17345-15020

2AU,3AU..AL2#

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-15030

2AU,3A#..AL2#

 1
17345-15020

2AU,3AU..AL2#

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-13027

2AU,3AU..AL2#

3 WAY SIDE

 1
90467-13007

2AU,3A#..AL2#

EGR VALVE SIDE

 1
96132-31000

2AU,3A#..AL2#

EAC VALVE SIDE

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-13027

2AU,3AU..AL2#

3 WAY SIDE

 1
90467-13007

2AU,3A#..AL2#

EGR VALVE SIDE

 1
96132-31000

2AU,3A#..AL2#

EAC VALVE SIDE

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-13027

2AU,3AU..AL2#

3 WAY SIDE

 1
90467-13007

2AU,3A#..AL2#

EGR VALVE SIDE

 1
96132-31000

2AU,3A#..AL2#

EAC VALVE SIDE

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-13027

2AU,3AU..AL2#

3 WAY SIDE

 1
90467-13007

2AU,3A#..AL2#

EGR VALVE SIDE

 1
96132-31000

2AU,3A#..AL2#

EAC VALVE SIDE

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
90445-14045

2AU,3A#..AL2#

 1
17344-15030

2AU,3AU..AL2#

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
90445-14045

2AU,3AU..AL2#

 1
90445-14045

2AU,3AU..AL2#

 1
90445-14135

2AU,3AU..AL2#

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-13027

2AU,3AU..AL2#

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-13027

2AU,3AU..AL2#

 1
17351 - MANIFOLD, AIR INJECTION
17306-15030

2AU,3AU..AL2#

 1
17306-15030

2AU,3A#..AL2#

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25704-15020

2AU,3A#..AL2#

 1
25704-15050

2AU,3AU..AL2#

 1
25720A - BRACKET, ELECTRIC AIR CONTROL VALVE
25724-15030

2AU,3A#..AL2#

 1
25724-15040

2AU,3AU..AL2#

 1
Common parts
90119-06067
90413-08004
90464-13027
91611-60616
93311-16010
