AL21-ZEHNS (1982)
Toyota Corsa/Tercel

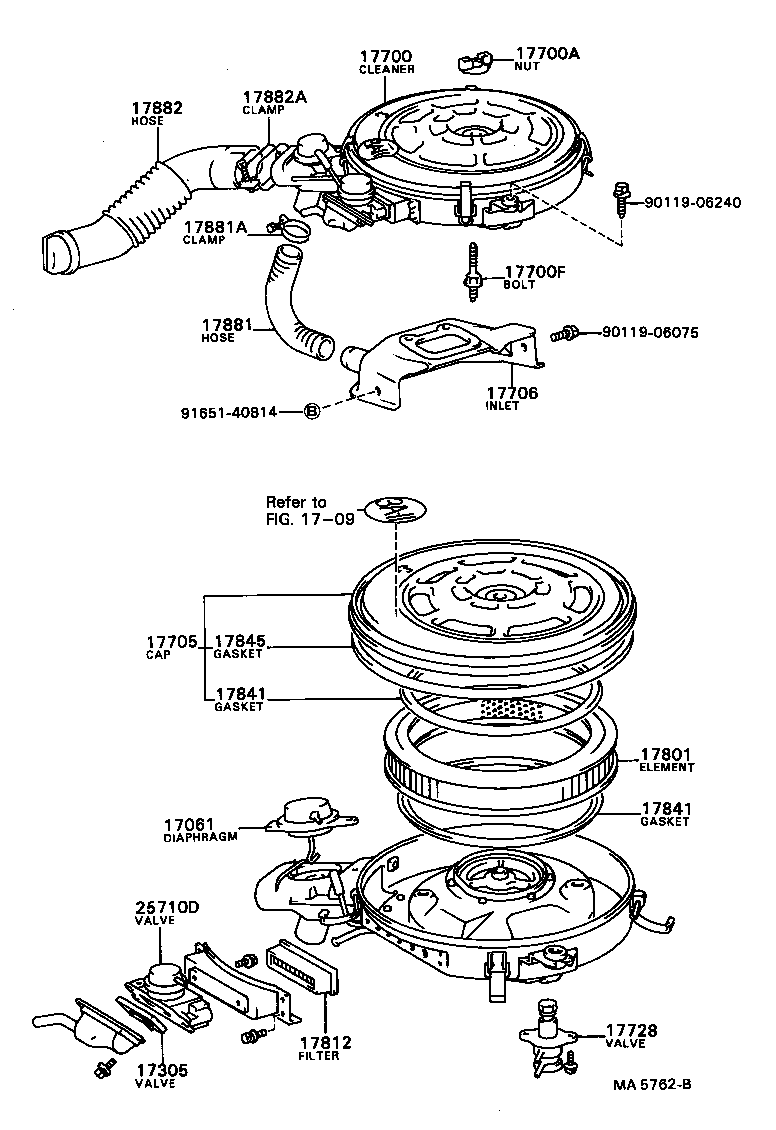

(8205-8408)2AU,3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15020 |
2AU,3AU..AL2# |
1 | ||
| 17061-15040 |
2AU,3AU..AL2# |
1 | ||
| 17061-15030 |
2AU,3A#..AL2# |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-15030 |
2AU,3AU..AL2# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15090 |
3AU..AL21 |
1 | ||
| 17700-15170 |
2AU,3AU..AL2# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06010 |
2AU,3AU..AL2# |
2 | ||
| 90175-06010 |
2AU,3A#..AL2# |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06036 |
2AU,3AU..AL2# RR |
1 | ||
| 90116-06019 |
2AU,3A#..AL2# |
2 | ||
| 90116-06019 |
2AU,3A#..AL2# L=45 |
1 | ||
| 90116-06019 |
2AU,3AU..AL2# FR |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15040 |
2AU,3AU..AL2# |
1 | ||
| 17705-15080 |
2AU,3AU..AL2# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15060 |
2AU,3AU..AL2# |
1 | ||
| 17902-15100 |
2AU,3AU..AL2# |
1 | ||
| 17902-15060 |
2AU,3A#..AL2# |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15050 |
2AU,3AU..AL2# |
1 | ||
| 17728-15040 |
2AU,3AU..AL2# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
2AU,3AU..AL2# |
1 | ||
| 17801-15010 |
2AU,3A#..AL2# |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-15010 |
2AU,3AU..AL2# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2AU,3A#..AL2# |
2 | ||
| 17841-15010 |
2AU,3AU..AL2# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2AU,3A#..AL2# |
2 | ||
| 17841-15010 |
2AU,3AU..AL2# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-15030 |
2AU,3A#..AL2# |
1 | ||
| 17845-37020 |
2AU,3A#..AL2# *G,L=1060 |
1 | ||
| 17845-61011 |
2AU,3AU..AL2# *G,L=1060 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-74040 |
2AU,3A#..AL2# |
1 | ||
| 17881-63010 |
2AU,3A#..AL2# |
1 | ||
| 17881-63010 |
2AU,3AU..AL2# |
1 | ||
| 17881-16210 |
2AU,3AU..AL2# |
1 | ||
| 17881-16110 |
2AU,3AU..AL2# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2AU,3A#..AL2# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15050 |
2AU,3A#..AL2# |
1 | ||
| 17881-15050 |
2AU,3AU..AL2# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2AU,3A#..AL2# |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-15070 |
2AU,3AU..AL2# |
1 | ||
| 25710-63010 |
2AU,3AU..AL2# |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-06240 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1709 | ||||

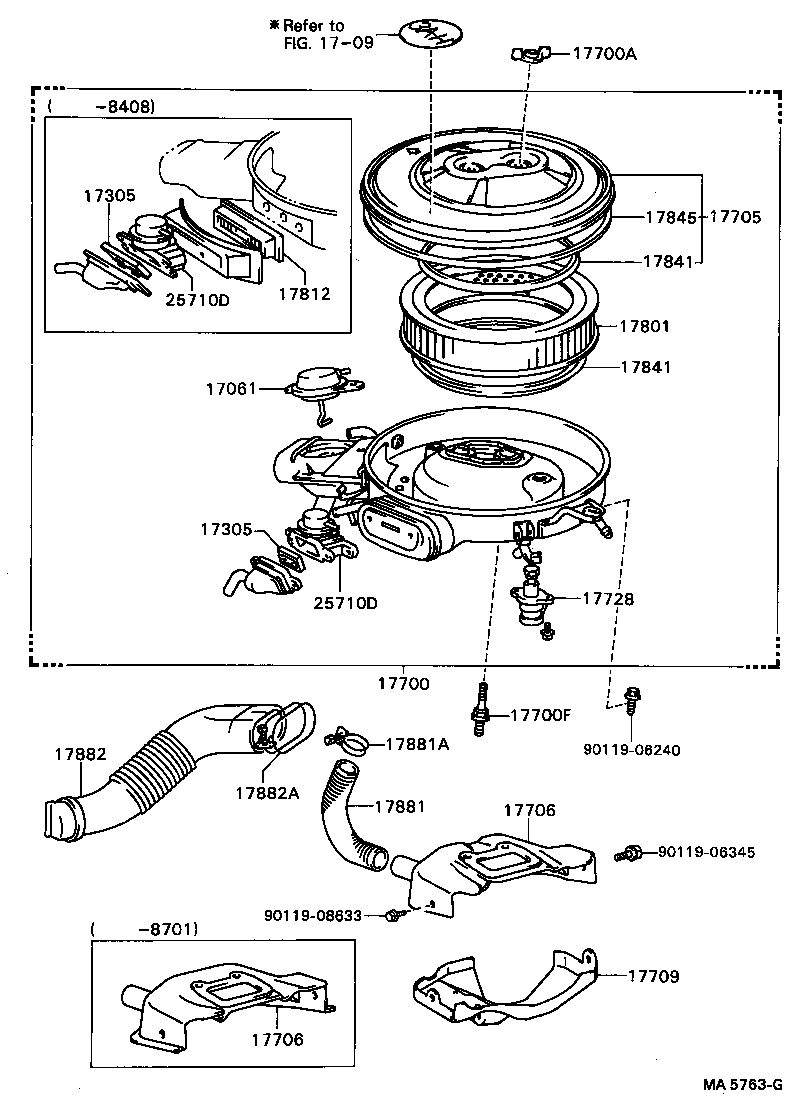

(8205-8408)3AHU ; (8408- )2AU,3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15020 |
2AU,3AU..AL2# |
1 | ||
| 17061-15040 |
2AU,3AU..AL2# |
1 | ||
| 17061-15030 |
2AU,3A#..AL2# |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-15030 |
2AU,3AU..AL2# |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-15030 |
2AU,3AU..AL2# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15090 |
3AU..AL21 |
1 | ||
| 17700-15170 |
2AU,3AU..AL2# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06010 |
2AU,3AU..AL2# |
2 | ||
| 90175-06010 |
2AU,3A#..AL2# |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06036 |
2AU,3AU..AL2# RR |
1 | ||
| 90116-06019 |
2AU,3A#..AL2# |
2 | ||
| 90116-06019 |
2AU,3A#..AL2# L=45 |
1 | ||
| 90116-06019 |
2AU,3AU..AL2# FR |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15040 |
2AU,3AU..AL2# |
1 | ||
| 17705-15080 |
2AU,3AU..AL2# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15060 |
2AU,3AU..AL2# |
1 | ||
| 17902-15100 |
2AU,3AU..AL2# |
1 | ||
| 17902-15060 |
2AU,3A#..AL2# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15060 |
2AU,3AU..AL2# |
1 | ||
| 17902-15100 |
2AU,3AU..AL2# |
1 | ||
| 17902-15060 |
2AU,3A#..AL2# |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17932-15070 |
2AU,3AU..AL2# |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15050 |
2AU,3AU..AL2# |
1 | ||
| 17728-15040 |
2AU,3AU..AL2# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
2AU,3AU..AL2# |
1 | ||
| 17801-15010 |
2AU,3A#..AL2# |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-15010 |
2AU,3AU..AL2# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2AU,3A#..AL2# |
2 | ||
| 17841-15010 |
2AU,3AU..AL2# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2AU,3A#..AL2# |
2 | ||
| 17841-15010 |
2AU,3AU..AL2# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-15030 |
2AU,3A#..AL2# |
1 | ||
| 17845-37020 |
2AU,3A#..AL2# *G,L=1060 |
1 | ||
| 17845-61011 |
2AU,3AU..AL2# *G,L=1060 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-74040 |
2AU,3A#..AL2# |
1 | ||
| 17881-63010 |
2AU,3A#..AL2# |
1 | ||
| 17881-63010 |
2AU,3AU..AL2# |
1 | ||
| 17881-16210 |
2AU,3AU..AL2# |
1 | ||
| 17881-16110 |
2AU,3AU..AL2# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2AU,3A#..AL2# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15050 |
2AU,3A#..AL2# |
1 | ||
| 17881-15050 |
2AU,3AU..AL2# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2AU,3A#..AL2# |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-63010 |
2AU,3AU..AL2# |
1 | ||
| 25710-15070 |
2AU,3AU..AL2# |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-63010 |
2AU,3AU..AL2# |
1 | ||
| 25710-15070 |
2AU,3AU..AL2# |
1 | ||
| Common parts | ||||
| 90119-06240 | ||||
| 90119-06345 | ||||
| 90119-08633 | ||||
| Linked diagrams | ||||
| 1709 | ||||
