AL21-ZEHES (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

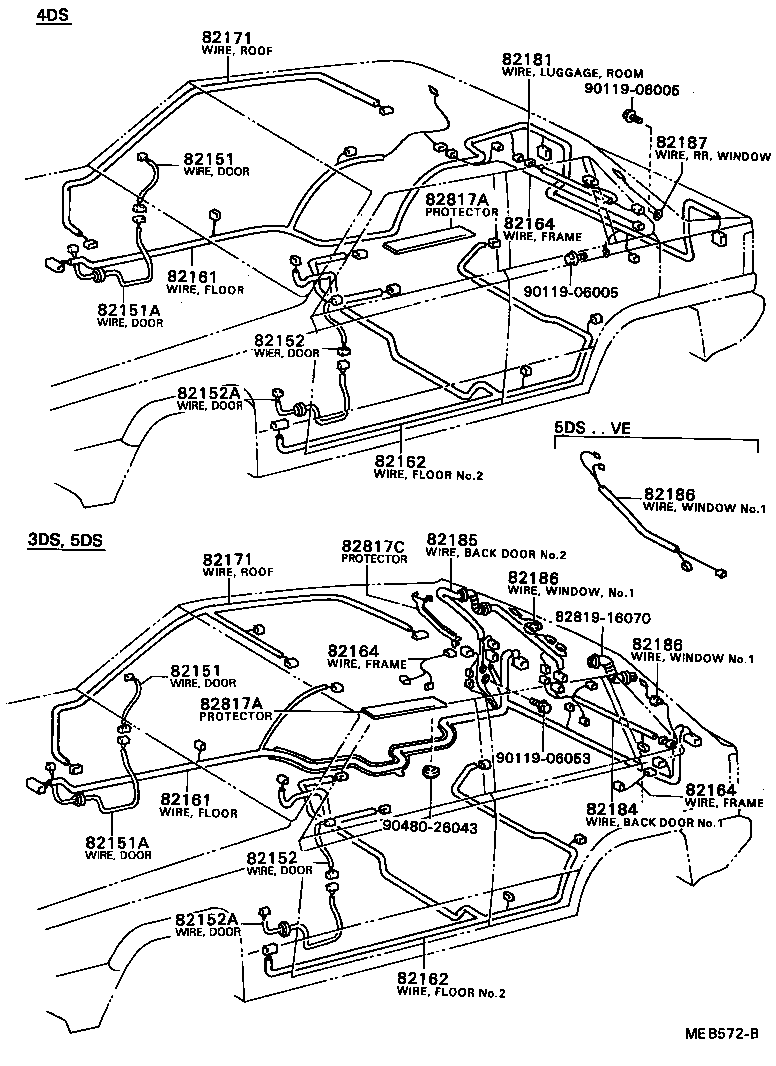

ILLUST NO. 2 OF 4(8205- )

Click highlighted areas on diagram

diagram 82151 82151 82151A 82151A 82152 82152 82152A 82152A 82161 82161 82162 82162 82164 82164 82164 82171 82171 82181 82184 82185 82186 82186 82186 82187 82817A 82817A 82817C 8281916070 9011906005 9011906005 9011906053 9048026043
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-16010

AL21..EX,VE

 1
82151-16010

AL25;AL21..4DS..(EX,VE)

 1
82151 - WIRE, FRONT DOOR, RH
82151-16010

AL21..EX,VE

 1
82151-16010

AL25;AL21..4DS..(EX,VE)

 1
82151A - WIRE, FRONT DOOR, NO.2, RH
82151-16020

AL21..EX,VE

 1
82151-16020

AL25;AL21..4DS..(EX,VE)

 1
82151A - WIRE, FRONT DOOR, NO.2, RH
82151-16020

AL21..EX,VE

 1
82151-16020

AL25;AL21..4DS..(EX,VE)

 1
82152 - WIRE, FRONT DOOR, LH
82151-16010

AL21..EX,VE

 1
82151-16010

AL25;AL21..4DS..(EX,VE)

 1
82152 - WIRE, FRONT DOOR, LH
82151-16010

AL21..EX,VE

 1
82151-16010

AL25;AL21..4DS..(EX,VE)

 1
82152A - WIRE, FRONT DOOR, NO.2, LH
82152-16010

AL25;AL21..4DS..(EX,VE)

 1
82152-16010

AL21..EX,VE

 1
82152A - WIRE, FRONT DOOR, NO.2, LH
82152-16010

AL25;AL21..4DS..(EX,VE)

 1
82152-16010

AL21..EX,VE

 1
82161 - WIRE, FLOOR
82161-16070

AL21..4DS..(EX,SX,VE,VS)

 1
82161-16220

AL21..4DS..(EX,VE)

 1
82161 - WIRE, FLOOR
82161-16070

AL21..4DS..(EX,SX,VE,VS)

 1
82161-16220

AL21..4DS..(EX,VE)

 1
82162 - WIRE, FLOOR, NO.2
82162-16120

AL20,21..3FC

 1
82162-16010

AL2#..4DS..3FC

 1
82162-16011

AL2#..4DS..3FC

 1
82162-16010

AL2#

 1
82162 - WIRE, FLOOR, NO.2
82162-16120

AL20,21..3FC

 1
82162-16010

AL2#..4DS..3FC

 1
82162-16011

AL2#..4DS..3FC

 1
82162-16010

AL2#

 1
82164 - WIRE, FRAME
82164-16030

AL21..4DS..(EX,SX,VE,VS)

W/*18 OR *20

 1
82164 - WIRE, FRAME
82164-16030

AL21..4DS..(EX,SX,VE,VS)

W/*18 OR *20

 1
82164 - WIRE, FRAME
82164-16030

AL21..4DS..(EX,SX,VE,VS)

W/*18 OR *20

 1
82171 - WIRE, ROOF, NO.1
82171-16010

AL2#

 1
82171 - WIRE, ROOF, NO.1
82171-16010

AL2#

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-16010

AL2#..4DS

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-16020

AL2#..4DS

W/*RWD

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

AL2#

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

AL2#

 1
Common parts
82819-16070
90119-06005
90119-06053
90480-26043

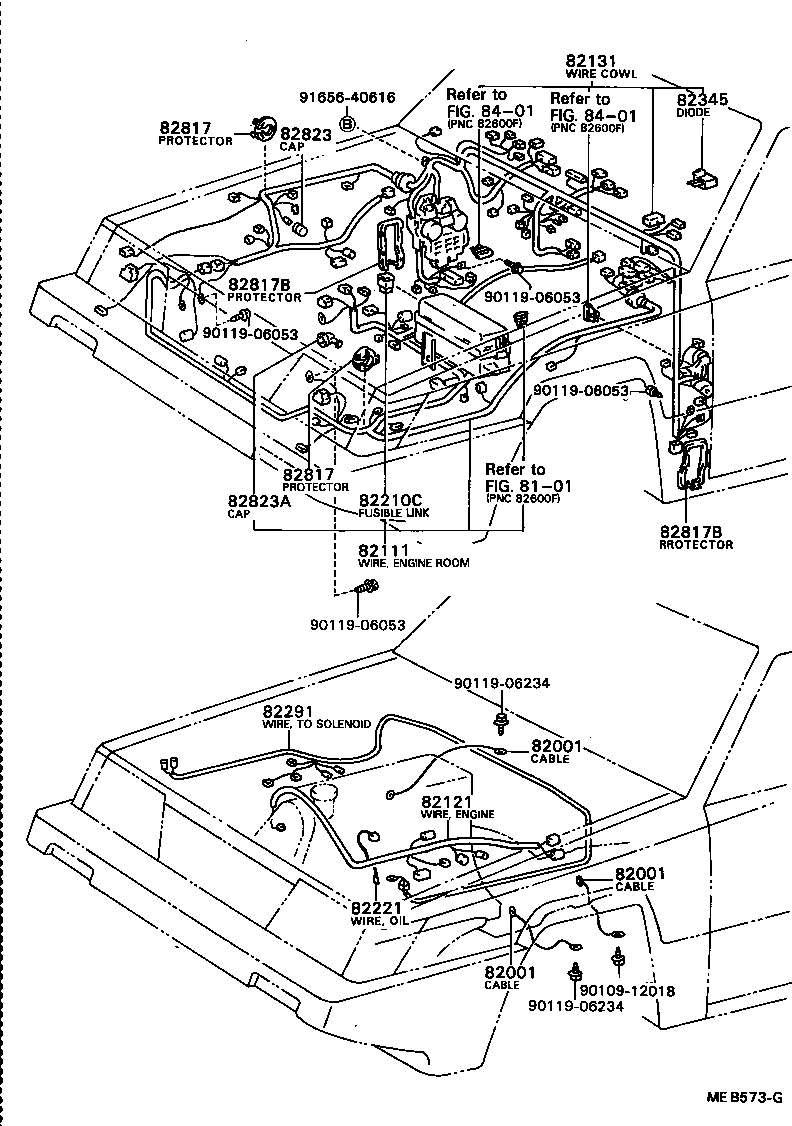

ILLUST NO. 1 OF 4(8205- )

Click highlighted areas on diagram

diagram 8101 82001 82001 82001 82111 82121 82131 82210C 82221 82291 82345 82817 82817 82817B 82817B 82823 82823A 8401 8401 9010912018 9011906053 9011906053 9011906053 9011906053 9011906234 9011906234 9165640616
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07200

AL2#

L=350,ENGINE-DASH

 1
90980-07207

AL2#..3FC

L=140,MISSION-FLOOR

 1
90980-07233

AL2#

L=350,ENGINE-DASH

 1
90980-07119

AL2#

L=320,CLUCH-FLOOR

 1
82001 - CABLE, BOND, NO.1
90980-07200

AL2#

L=350,ENGINE-DASH

 1
90980-07207

AL2#..3FC

L=140,MISSION-FLOOR

 1
90980-07233

AL2#

L=350,ENGINE-DASH

 1
90980-07119

AL2#

L=320,CLUCH-FLOOR

 1
82001 - CABLE, BOND, NO.1
90980-07200

AL2#

L=350,ENGINE-DASH

 1
90980-07207

AL2#..3FC

L=140,MISSION-FLOOR

 1
90980-07233

AL2#

L=350,ENGINE-DASH

 1
90980-07119

AL2#

L=320,CLUCH-FLOOR

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-16040

AL21..EX,VE

 1
82111-16180

AL21..4DS..(EX,VE)

 1
82111-16270

AL21..EX,SX,VE,VS

 1
82111-16270

AL21..EX,VE

 1
82111-16271

AL21..EX,VE

 1
82121 - WIRE, ENGINE
82121-16040

AL20,21..3FC

 1
82131 - WIRE, COWL
82131-16830

AL21..VE

 1
82131-16260

AL21..4DS..VE

 1
82131-16440

AL21..4DS..VE

 1
82131-16831

AL21..VE

 1
82210C - FUSIBLE LINK
90982-08188

AL2#

30A,ﾒｽ端子,ﾋﾟﾝｸ,30A

 3
90982-08190

AL2#

60A,ﾒｽ端子,黄,60A

 1
82221 - WIRE, OIL PRESSURE SWITCH
82221-16010

AL2#

 1
82291 - WIRING, TO SOLENOID
82291-16020

AL2#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16020

AL2#

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16020

AL2#

 2
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-16040

AL2#

RH

 1
82817-16050

AL2#

LH

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-16040

AL2#

RH

 1
82817-16050

AL2#

LH

 1
82823 - CAP, TERMINAL, NO.1
82823-30010

AL2#

 1
82823-16010

AL2#

 1
82823A - CAP, TERMINAL, NO.2
82823-12020

AL21,25..EX,VE

ALTERNATOR

 1
82823-22020

AL2#

ALTERNATOR

 1
82823-32020

AL2#

ALTERNATOR

 1
Common parts
90109-12018
90119-06053
90119-06234
91656-40616
Linked diagrams
8101
8401

ILLUST NO. 3 OF 4(8205- )

Click highlighted areas on diagram

diagram 8271112200 8271114350 8271116080 8271116110 8271116180 8271116190 8271116200 8271116240 8271122300 8281716110 8281716140 8281916070 9046106105 9046106143 9046108187 9046108312 9046108365 9046108370 9046110275 9046110275 9046310521 9046400082 9046400108 9046400165 9095001385
Part # Description Qty Price
Common parts
82711-12200
82711-14350
82711-16080
82711-16110
82711-16180
82711-16190
82711-16200
82711-16240
82711-22300
82817-16110
82817-16140
82819-16070
90461-06105
90461-06143
90461-08187
90461-08312
90461-08365
90461-08370
90461-10275
90463-10521
90464-00082
90464-00108
90464-00165
90950-01385

ILLUST NO. 4 OF 4(8205- )

Click highlighted areas on diagram

diagram 82981 8298116010 82982 8298222010 82983 8298322040 82984 8298422010 82985 8298516010
Part # Description Qty Price

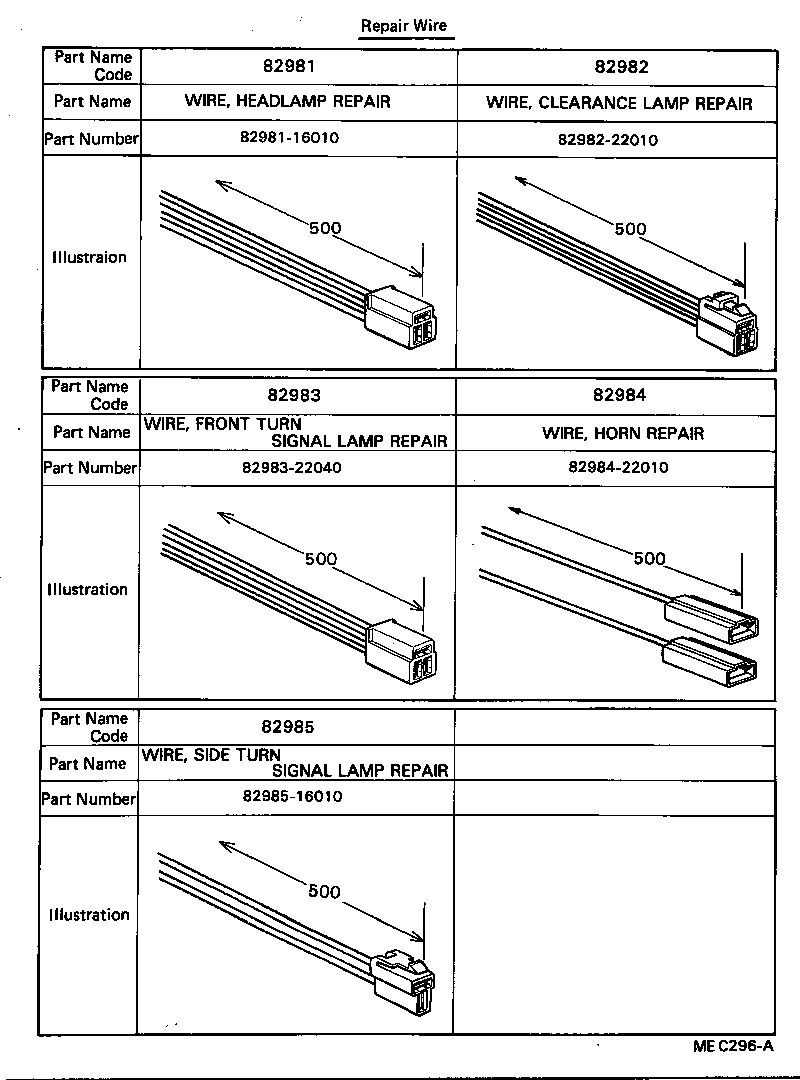

82981 - WIRE, HEADLAMP REPAIR
82981-16010

AL2#

 1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-22010

AL2#

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-22040

AL2#

 1
82984 - WIRE, HORN REPAIR
82984-22010

AL2#

 1
82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR
82985-16010

AL2#

 1
Common parts
82981-16010
82982-22010
82983-22040
82984-22010
82985-16010

ILLUST NO. 3 OF 4(8205- )

Click highlighted areas on diagram

diagram 9046400312
Part # Description Qty Price
Common parts
90464-00312
