AL21-ZEHES (1982)

Toyota Corsa/Tercel

Production May 1982 - Oct 1989
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

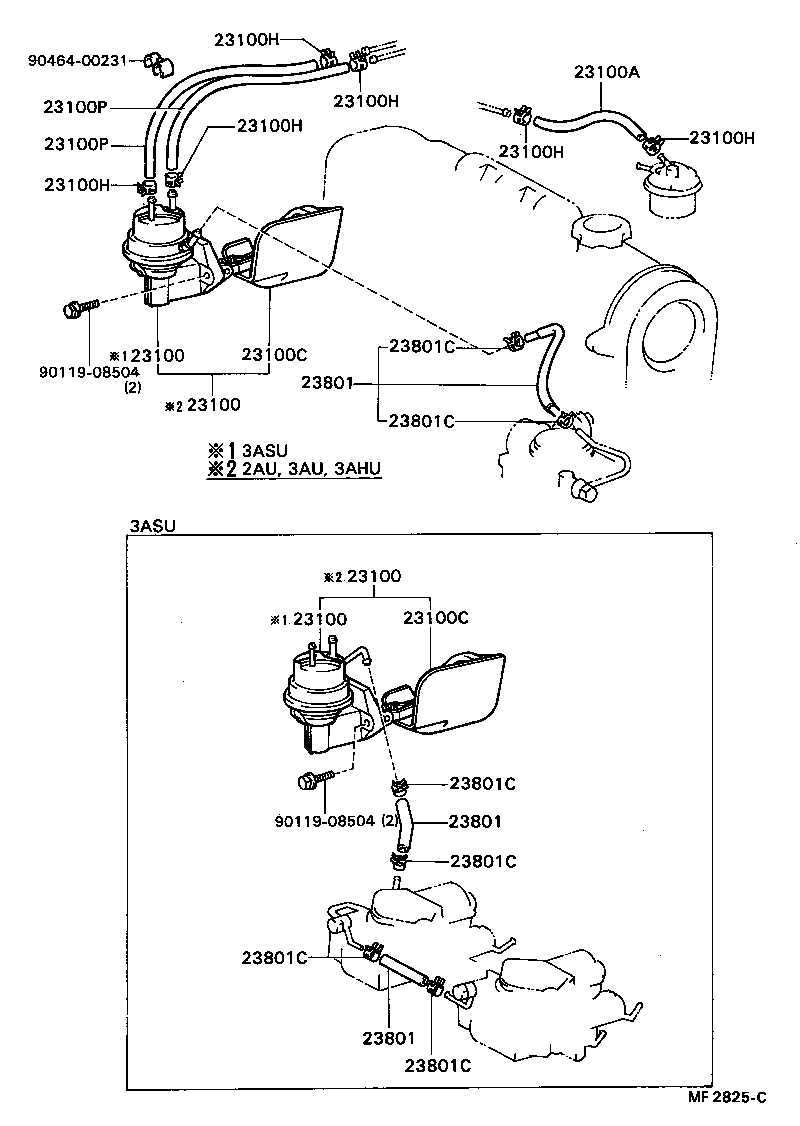

Click highlighted areas on diagram

diagram 23100 23100 23100 23100 23100A 23100C 23100C 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23801 23801 23801 23801C 23801C 23801C 23801C 23801C 23801C 9011908504 9011908504 9046400231
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19155

2AU,3A#..AL2#

 1
23100-19155

2AU,3AU..AL2#

 1
23100 - PUMP ASSY, FUEL
23100-19155

2AU,3A#..AL2#

 1
23100-19155

2AU,3AU..AL2#

 1
23100 - PUMP ASSY, FUEL
23100-19155

2AU,3A#..AL2#

 1
23100-19155

2AU,3AU..AL2#

 1
23100 - PUMP ASSY, FUEL
23100-19155

2AU,3A#..AL2#

 1
23100-19155

2AU,3AU..AL2#

 1
23100A - HOSE, FUEL
95332-06020

2AU,3A#..AL2#

*H,L=140

 1
95333-06020

2AU,3A#..AL2#

*H,L=140

 1
95332-06020

2AU,3A#..AL2#

*H,L=150

 1
23100C - INSULATOR, FUEL PUMP
23915-15010

2AU,3A#..AL2#

 1
23915-15011

2AU,3A#..AL2#

 1
23100C - INSULATOR, FUEL PUMP
23915-15010

2AU,3A#..AL2#

 1
23915-15011

2AU,3A#..AL2#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30400

2AU,3A#..AL2#

RETURN

 2
96132-30600

2AU,3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

2AU,3A#..AL2#

RETURN

 2
96132-30600

2AU,3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

2AU,3A#..AL2#

RETURN

 2
96132-30600

2AU,3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

2AU,3A#..AL2#

RETURN

 2
96132-30600

2AU,3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

2AU,3A#..AL2#

RETURN

 2
96132-30600

2AU,3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

2AU,3A#..AL2#

RETURN

 2
96132-30600

2AU,3A#..AL2#

MAIN

 4
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-04040

2AU,3A#..AL2#

*H,L=360,RETURN

 1
95332-06040

2AU,3A#..AL2#

*H,L=360,MAIN

 1
95333-06036

2AU,3A#..AL2#

MAIN

 1
95333-06040

2AU,3A#..AL2#

*H,L=360,MAIN

 1
95332-04040

2AU,3A#..AL2#

*H,L=360,RETURN

 1
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-04040

2AU,3A#..AL2#

*H,L=360,RETURN

 1
95332-06040

2AU,3A#..AL2#

*H,L=360,MAIN

 1
95333-06036

2AU,3A#..AL2#

MAIN

 1
95333-06040

2AU,3A#..AL2#

*H,L=360,MAIN

 1
95332-04040

2AU,3A#..AL2#

*H,L=360,RETURN

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15010

2AU,3AU..AL2#

 1
23271-15030

2AU,3AU..AL2#

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15010

2AU,3AU..AL2#

 1
23271-15030

2AU,3AU..AL2#

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15010

2AU,3AU..AL2#

 1
23271-15030

2AU,3AU..AL2#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
Common parts
90119-08504
90464-00231
