AL21-LHMSH (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )2AU,3AHU,3AU

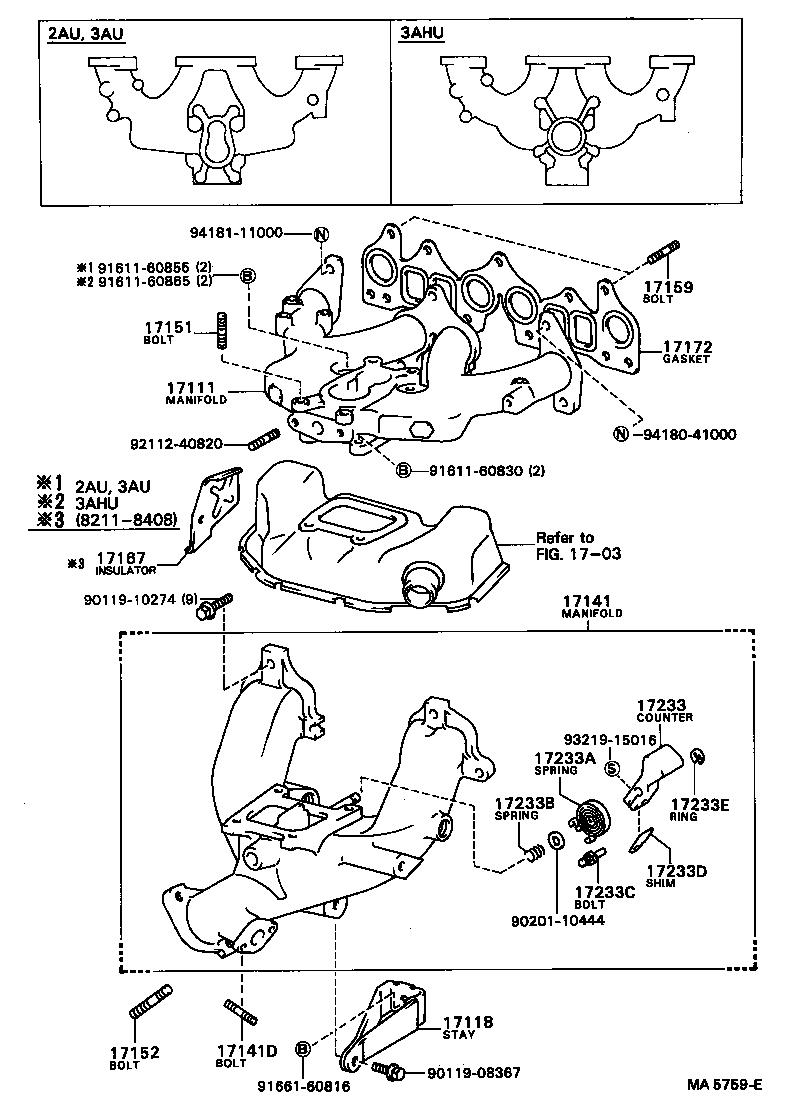

Click highlighted areas on diagram

diagram 1703 17111 17118 17141 17141D 17151 17152 17159 17167 17172 17233 17233A 17233B 17233C 17233D 17233E 9011908367 9011910274 9020110444 9161160830 9161160855 9161160865 9166160816 9211240820 9321915016 9418041000 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-15040

3AHU..AL21

 1
17118 - STAY, MANIFOLD
17118-15040

2AU,3A#..AL2#

 1
17141 - MANIFOLD, EXHAUST
17140-15070

2AU,3A#..AL2#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2AU,3A#..AL2#

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

2AU,3A#..AL2#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2AU,3A#..AL2#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

2AU,3A#..AL2#

L=44,S=12&20

 3
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-15010

2AU,3A#..AL2#

 1
17233 - COUNTER WEIGHT
17233-15010

2AU,3A#..AL2#

 1
17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
90510-06001

2AU,3A#..AL2#

 1
17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
90501-08022

2AU,3A#..AL2#

 1
17233C - BOLT(FOR COUNTER WEIGHT)
90109-10045

2AU,3A#..AL2#

 1
17233D - SHIM(FOR COUNTER WEIGHT)
90910-10005

2AU,3A#..AL2#

 1
17233E - RING, E(FOR COUNTER WEIGHT)
96160-00800

2AU,3A#..AL2#

 1
Common parts
90119-08367
90119-10274
90201-10444
91611-60830
91611-60855
91611-60865
91661-60816
92112-40820
93219-15016
94180-41000
94181-11000
Linked diagrams
1703
