AL21-LHMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8605)CRS..3DS,5DS

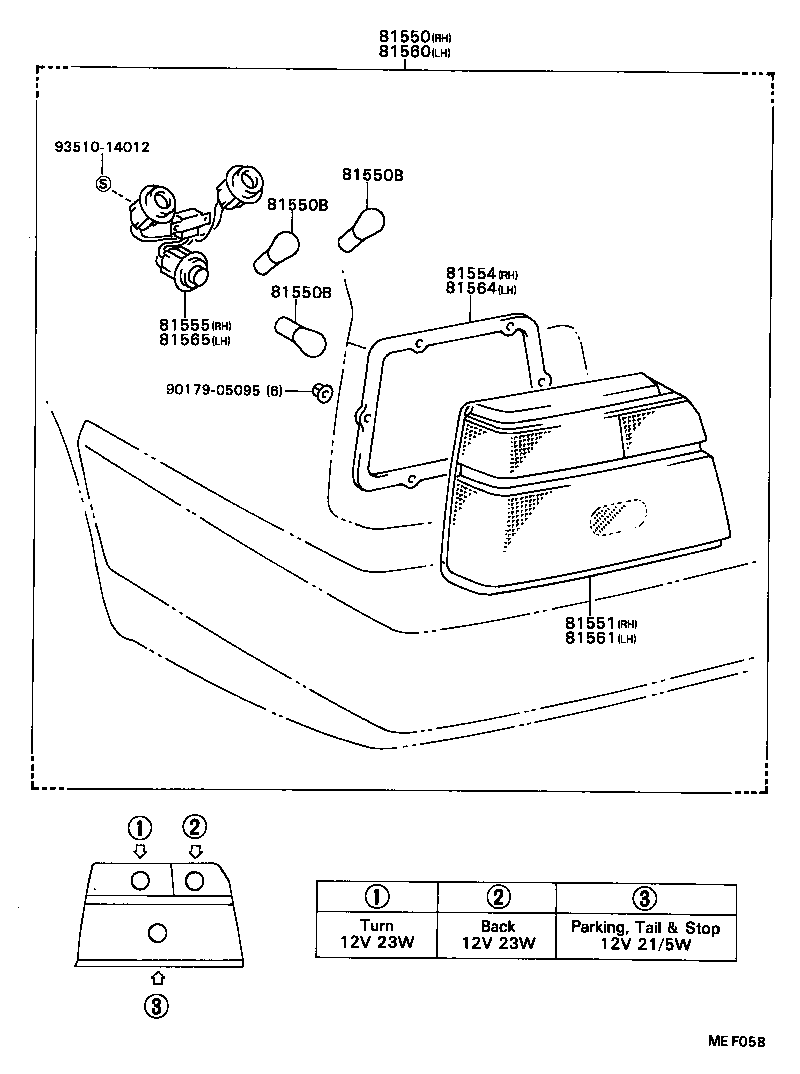

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095 9351014012
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80131

AL2#..CRS..5DS

 1
81550-80237

AL20,21..CRS..(3DS,5DS)

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AL2#

12V 21/5W,12V 21/5W

 2
99132-11230

AL2#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AL2#

12V 21/5W,12V 21/5W

 2
99132-11230

AL2#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AL2#

12V 21/5W,12V 21/5W

 2
99132-11230

AL2#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16220

AL2#..CRS..5DS

 1
81551-16222

AL20,21..CRS..(3DS,5DS)

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-16220

AL20,21..3DS,5DS

 1
81554-16210

AL2#..3DS,5DS

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16220

AL2#..CRS..5DS

 1
81555-16222

AL20,21..CRS..(3DS,5DS)

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80135

AL2#..CRS..5DS

 1
81560-80243

AL20,21..CRS..(3DS,5DS)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16222

AL20,21..CRS..(3DS,5DS)

 1
81561-16220

AL2#..CRS..5DS

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-16210

AL2#..3DS,5DS

 1
81554-16220

AL20,21..3DS,5DS

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-16222

AL20,21..CRS..(3DS,5DS)

 1
81565-16220

AL2#..CRS..5DS

 1
Common parts
90179-05095
93510-14012
