AL21-LHMSB (1984)

Toyota Corsa/Tercel

Production Aug 1984 - May 1986
Engine 3ASU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8605)3DS,5DS

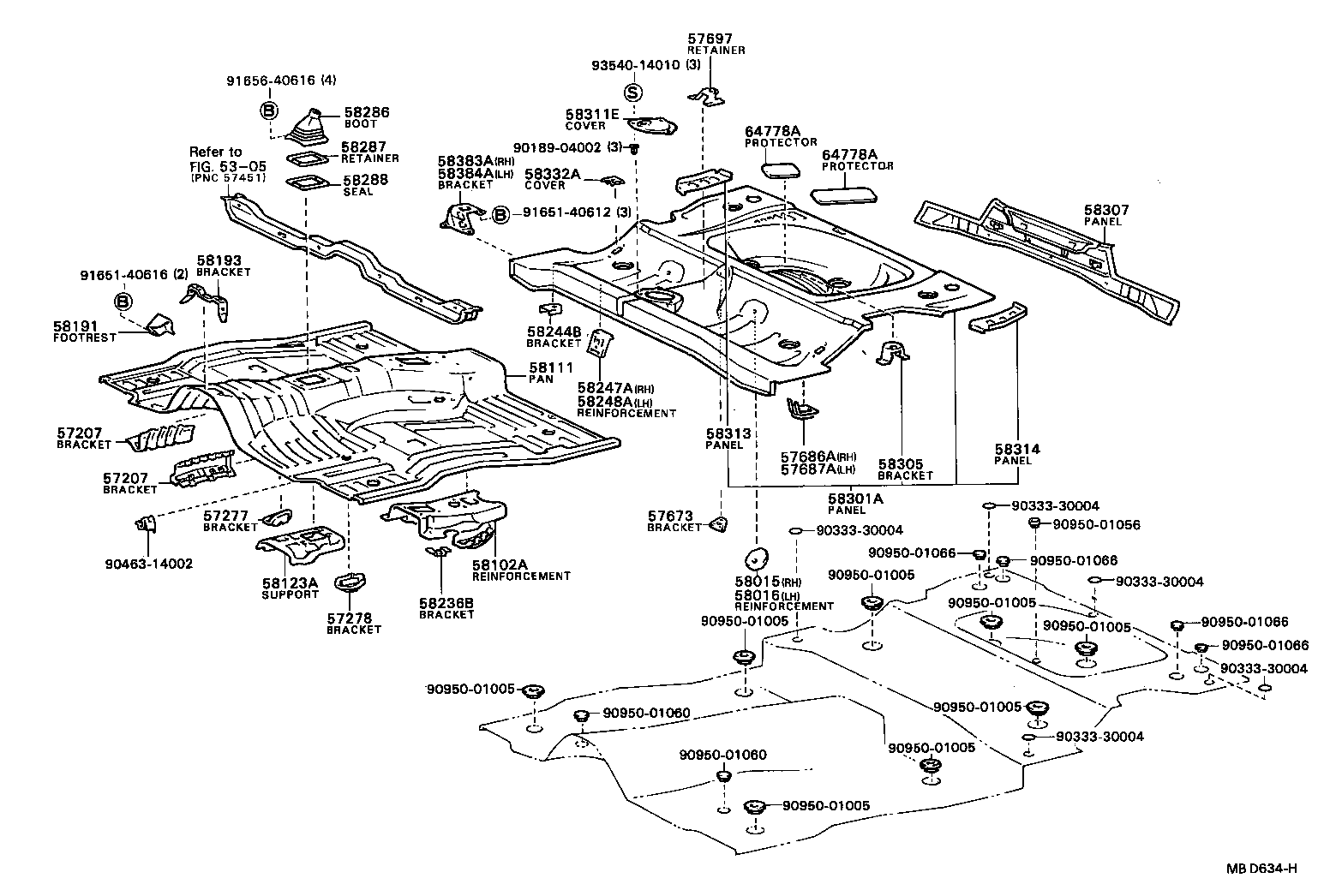

Click highlighted areas on diagram

diagram 5305 57207 57207 57277 57278 57673 57686A 57687A 57697 58015 58016 58102A 58111 58123A 58191 58193 58236B 58244B 58247A 58248A 58286 58287 58288 58301A 58305 58307 58311E 58313 58314 58332A 58383A 58384A 64778A 64778A 9018904002 9033330004 9033330004 9033330004 9033330004 9033330004 9046314002 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001056 9095001060 9095001060 9095001066 9095001066 9095001066 9095001066 9165140612 9165140616 9165640616 9354014010
Part # Description Qty Price
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-16030

AL20,21

LH

 1
57207-16030

AL20,21

RH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-16030

AL20,21

LH

 1
57207-16030

AL20,21

RH

 1
57277 - BRACKET, CATALYTIC CONVERTER SUPPORT, RH
57277-16010

AL20,21

 1
57278 - BRACKET, CATALYTIC CONVERTER SUPPORT, LH
57278-16040

AL20,21

 1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57673-16010

AL2#..3DS,5DS

 1
57686A - BRACKET, FUEL TANK MOUNTING, REAR RH
57686-16010

AL2#

 1
57687A - BRACKET, FUEL TANK MOUNTING, REAR LH
57687-16010

AL2#

 1
57697 - RETAINER, REAR SEAT CUSHION
57697-16010

AL20,21

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-16010

AL20,21

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58015-16010

AL20,21

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-16010

AL20,21

 1
58111 - PAN, FRONT FLOOR
58111-16020

AL20,21

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-16020

AL20,21

 1
58191 - FOOTREST, FRONT FLOOR
58191-16020

AL25..3FC;AL25..SX,VS;AL21..3FC..(EX,VE);AL20,21..(3FC,5F)..(DX,GX,SX,VC,VL,VS)

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-16020

AL20,21

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AL2#

 7
58244B - BRACKET, REAR SEAT CUSHION MOUNTING
58244-16010

AL2#

 4
58244-16010

AL20,21

PLANT NO.P11

 4
58244-16030

AL20,21

PLANT NO.A32

 4
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-16010

AL20,21..3DS,5DS

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-16010

AL20,21..3DS,5DS

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-16070

AL20,21..MTM..(GX,SX,VE,VL,VS)

 1
58287 - RETAINER, SHIFT LEVER BOOT
58087-16010

AL20,21..MTM..(GX,SX,VE,VL,VS)

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-16011

AL20,21..MTM

 1
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-16901

AL20,21..3DS,5DS

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AL2#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-16260

AL20,21..3DS,5DS

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-16020

AL20,21

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-16020

AL20,21..3DS,5DS

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-16020

AL20,21..3DS,5DS

 1
58332A - COVER, REAR FLOOR SIDE SERVICE HOLE
58331-16010

AL20,21..3DS,5DS

RH

 1
58332-16010

AL20,21..3DS,5DS

LH

 1
58383A - BRACKET, REAR SEAT SUPPORT, RH
58215-16010

AL20,21

 1
58384A - BRACKET, REAR SEAT SUPPORT, LH
58216-16010

AL20,21

 1
64778A - PROTECTOR, SPARE WHEEL
64778-16010

AL2#..3DS,5DS

270 X 150

 1
64778-12010

AL2#..5DS

450 X 150

 1
64778A - PROTECTOR, SPARE WHEEL
64778-16010

AL2#..3DS,5DS

270 X 150

 1
64778-12010

AL2#..5DS

450 X 150

 1
Common parts
90189-04002
90333-30004
90463-14002
90950-01005
90950-01056
90950-01060
90950-01066
91651-40612
91651-40616
91656-40616
93540-14010
