AL21-LHMES (1982)

Toyota Corsa/Tercel

Production May 1982 - May 1986
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)2AU,3AU

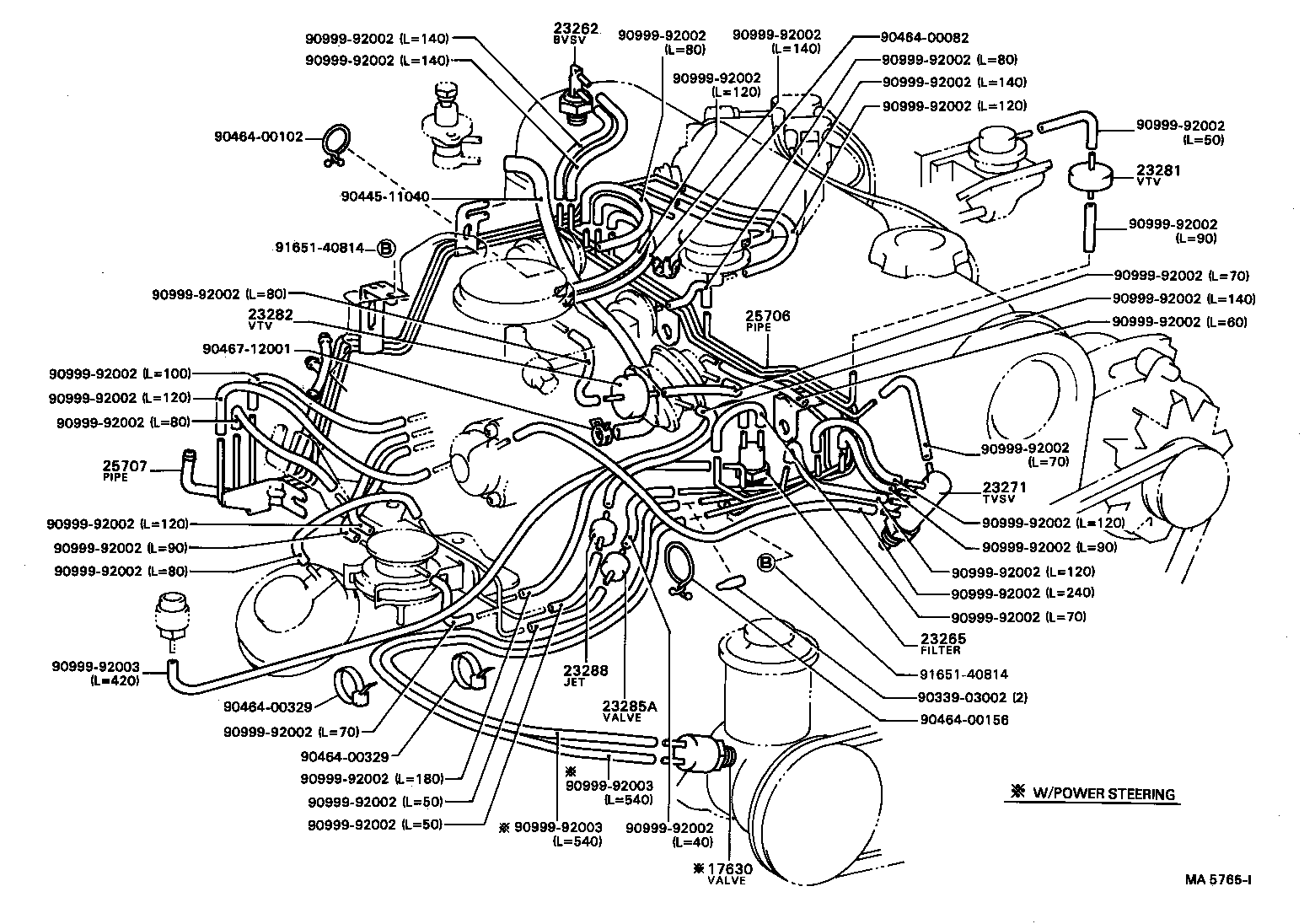

Click highlighted areas on diagram

diagram 17630 23262 23265 23271 23281 23282 23285A 23288 25706 25707 9033903002 9044511040 9046400082 9046400102 9046400156 9046400329 9046400329 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9165140814 9165140814
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15020

3AU..AL21..EX,GX,VE,VL

W/PS

 1
17630-15021

2AU,3AU..AL2#..EX,GX,VE,VL

W/PS

 1
17630-15010

3AU..AL21..EX,GX,VE,VL

W/PS

 1
17630-15020

2AU,3AU..AL2#..EX,GX,VE,VL

W/PS

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05069

2AU,3AU..AL2#

 1
90925-05052

2AU,3AU..AL2#

 1
23265 - FILTER, GAS, NO.1
90917-11023

2AU,3A#..AL2#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

2AU,3AU..AL2#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

2AU,3A#..AL2#

 1
90925-01084

2AU,3A#..AL2#

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01091

2AU,3AU..AL2#

 1
90925-01091

2AU,3AU..AL2#..MTM

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2AU,3A#..AL2#

 1
23288 - JET, NO.1
90925-04013

2AU,3AU..AL2#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15120

2AU,3AU..AL2#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-15100

2AU,3AU..AL2#

 1
25707-15101

2AU,3AU..AL2#

 1
25707-15130

2AU,3AU..AL2#

 1
Common parts
90339-03002
90445-11040
90464-00082
90464-00102
90464-00156
90464-00329
90467-12001
90999-92002
90999-92003
91651-40814

(8408- )2AU,3AU

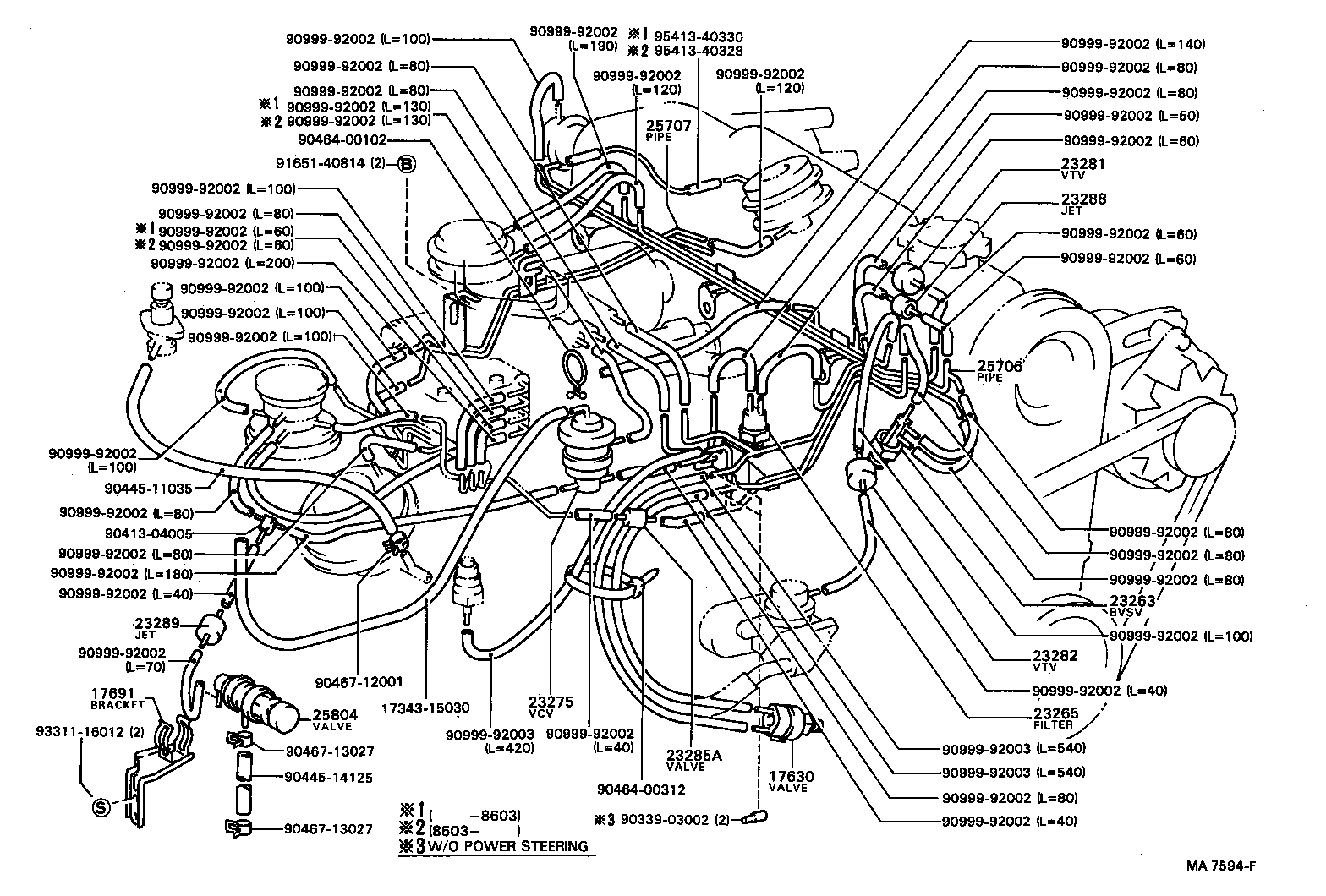

Click highlighted areas on diagram

diagram 1734315030 17630 17691 23263 23265 23275 23281 23282 23285A 23288 23289 25706 25707 25804 9033903002 9041304005 9044511035 9044514125 9046400102 9046400312 9046712001 9046713027 9046713027 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9165140814 9331116012 9541340328 9541340330
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15020

3AU..AL21..EX,GX,VE,VL

W/PS

 1
17630-15021

2AU,3AU..AL2#..EX,GX,VE,VL

W/PS

 1
17630-15010

3AU..AL21..EX,GX,VE,VL

W/PS

 1
17630-15020

2AU,3AU..AL2#..EX,GX,VE,VL

W/PS

 1
23265 - FILTER, GAS, NO.1
90917-11023

2AU,3A#..AL2#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

2AU,3A#..AL2#

 1
90925-01084

2AU,3A#..AL2#

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01091

2AU,3AU..AL2#

 1
90925-01091

2AU,3AU..AL2#..MTM

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2AU,3A#..AL2#

 1
23288 - JET, NO.1
90925-04013

2AU,3AU..AL2#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15120

2AU,3AU..AL2#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-15100

2AU,3AU..AL2#

 1
25707-15101

2AU,3AU..AL2#

 1
25707-15130

2AU,3AU..AL2#

 1
Common parts
17343-15030
90339-03002
90413-04005
90445-11035
90445-14125
90464-00102
90464-00312
90467-12001
90467-13027
90999-92002
90999-92003
91651-40814
93311-16012
95413-40328
95413-40330

(8205- )

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
