AL21-LHKDS (1982)

Toyota Corsa/Tercel

Production May 1982 - Aug 1984
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

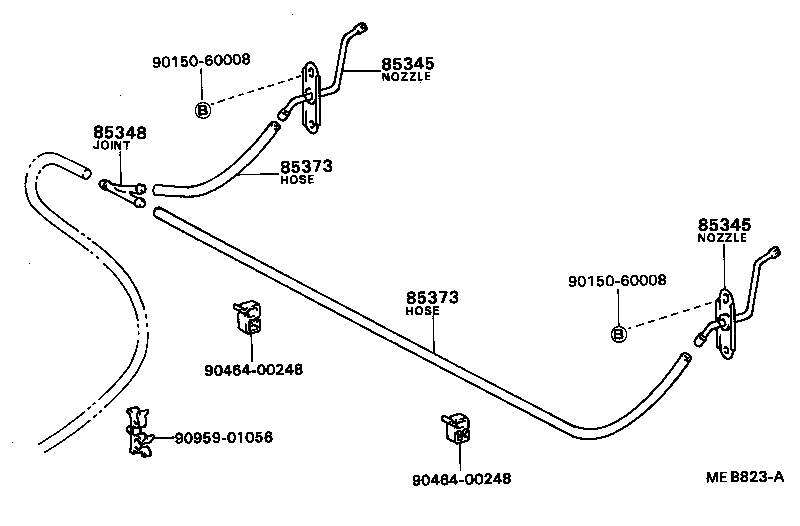

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

diagram 85345 85345 85348 85373 85373 9015060008 9015060008 9046400248 9046400248 9095901056
Part # Description Qty Price
85345 - NOZZLE, WINDSHIELD WASHER
85341-16050

AL2#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-16050

AL2#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AL2#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AL2#

*H,L=40

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AL2#

*H,L=40

 1
Common parts
90150-60008
90464-00248
90959-01056
