AL21-LHHSS (1984)
Toyota Corsa/Tercel

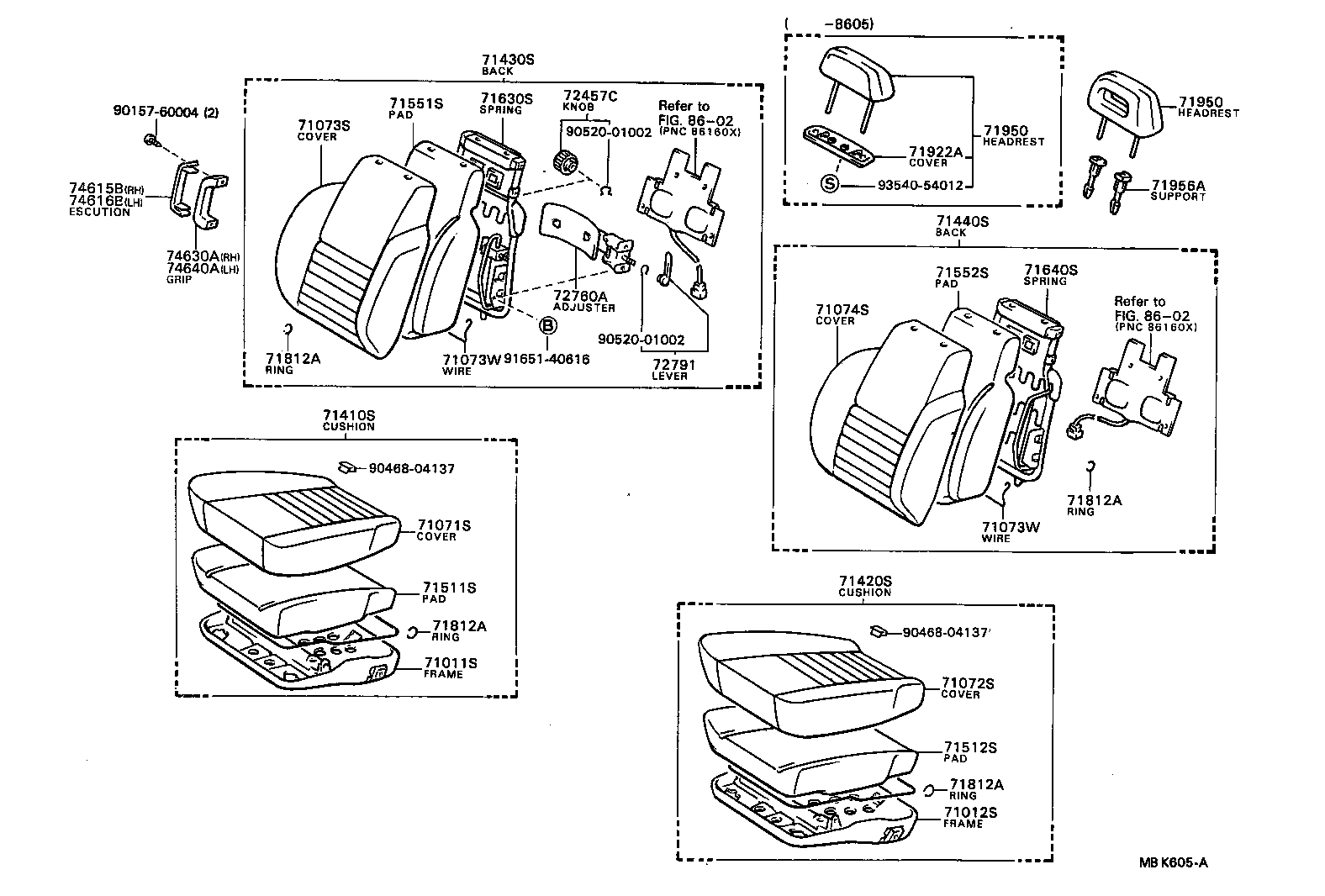

ILLUST NO. 1 OF 2(8205-8804)SX,VS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16020 |
AL21,25..EX,SX,VE,VS |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16010 |
AL2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1629003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1629006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1629002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1629103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1629006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1629002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1629003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1633103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1631003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1631002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1631006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1631103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL21..SX,VS L=390 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL21..SX,VS L=390 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1631006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1631003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1631002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1636103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1631002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-1631006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1631003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1631103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1631002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-1631006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1631003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1631103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1633003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1633002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1633006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1663003 |
AL21..SX,VS W/BODYSONICK,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1633103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1630003 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1630002 |
AL21..SX,VS FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-1630006 |
AL21..SX,VS FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1630103 |
AL21..SX,VS FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1662003 |
AL21..SX,VS W/BODYSONICK,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16070 |
AL21,25..SX,VS |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16070 |
AL21,25..SX,VS |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-16110 |
AL21..SX,VS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-16110 |
AL21..SX,VS |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16050 |
AL21,25..SX,VS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-16020 |
AL21,25..SX,VS |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201013 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
2 | ||
| 71922-3201005 |
AL21..SX,VS BEIGE,BEIGE,TRIM4# |
2 | ||
| 71922-3201002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1604006 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1604002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-1604003 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1604103 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1604006 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1604002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-1604003 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1604103 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL2# ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001013 |
AL2# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
AL2# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
AL20,21 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006001 |
AL2# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006013 |
AL2# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001025 |
AL2# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL2# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 72457C - KNOB, SIDE SUPPORT ADJUSTER | ||||
| 72457-1403012 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72457-1403013 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
1 | ||
| 72457-1403016 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
1 | ||
| 72457-1403023 |
AL21..SX,VS GRAY,GRAY,TRIM1# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-16020 |
AL21..EX,SX,VE,VS |
1 | ||
| 72750-16020 |
AL21..SX,VS |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202012 |
AL21..EX,SX,VE,VS DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202013 |
AL21..EX,SX,VE,VS GRAY,GRAY,TRIM1# |
1 | ||
| 72791-2202016 |
AL21..EX,SX,VE,VS BROWN,BROWN,TRIM4# |
1 | ||
| 72791-2202023 |
AL21,25..EX,SX,VE,VS GRAY,GRAY,TRIM1# |
1 | ||
| 74615B - ESCUTCHEON, ASSIST GRIP, RH | ||||
| 74615-3002004 |
AL21..SX,VS BLUE,BLUE,TRIM1# |
2 | ||
| 74615-3002006 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
2 | ||
| 74615-3002002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 74615-3002011 |
AL21..SX,VS BLACK,BLACK,TRIM1# |
2 | ||
| 74616B - ESCUTION, ASSIST GRIP, LH | ||||
| 74616-3003011 |
AL21..SX,VS BLACK,BLACK,TRIM1# |
2 | ||
| 74616-3003002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 74616-3003006 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
2 | ||
| 74616-3003004 |
AL21..SX,VS BLUE,BLUE,TRIM1# |
2 | ||
| 74630A - GRIP SUB-ASSY, ASSIST, RH | ||||
| 74630-3002002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 74630-3002004 |
AL21..SX,VS BLUE,BLUE,TRIM1# |
2 | ||
| 74630-3002011 |
AL21..SX,VS BLACK,BLACK,TRIM1# |
2 | ||
| 74630-3002006 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
2 | ||
| 74640A - GRIP SUB-ASSY, ASSIST, LH | ||||
| 74640-3001004 |
AL21..SX,VS BLUE,BLUE,TRIM1# |
2 | ||
| 74640-3001002 |
AL21..SX,VS DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 74640-3001006 |
AL21..SX,VS BROWN,BROWN,TRIM4# |
2 | ||
| 74640-3001011 |
AL21..SX,VS BLACK,BLACK |
2 | ||
| Common parts | ||||
| 90157-60004 | ||||
| 90468-04137 | ||||
| 90520-01002 | ||||
| 91651-40616 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8602 | ||||
