AL21-LHHSS (1984)
Toyota Corsa/Tercel
(8205-8605)5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58375B - REINFORCEMENT, BODY LOWER BACK PANEL, RH | ||||
| 58375-16010 |
AL20,21..3DS,5DS |
1 | ||
| 58376B - REINFORCEMENT, BODY LOWER BACK PANEL, LH | ||||
| 58376-16010 |
AL20,21..3DS,5DS |
1 | ||
| 61021B - PILLAR SUB-ASSY, FRONT BODY, UPPER RH | ||||
| 61021-16901 |
AL2# |
1 | ||
| 61022B - PILLAR SUB-ASSY, FRONT BODY, UPPER LH | ||||
| 61022-16901 |
AL2# |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-16040 |
AL2# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-16060 |
AL2# |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-16020 |
AL2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-16050 |
AL20,21..5DS |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-16050 |
AL20,21..5DS |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61265-16010 |
AL20,21..5DS |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61266-16010 |
AL20,21..5DS |
1 | ||
| 61227 - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-16040 |
AL20,21..5DS |
1 | ||
| 61228 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-16040 |
AL20,21..5DS |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-16060 |
AL20,21..5DS |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-16060 |
AL20,21..5DS |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-16010 |
AL21..(3DS,5DS)..(EX,SX,VE,VS) |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-16010 |
AL21..(3DS,5DS)..(EX,SX,VE,VS) |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-16010 |
AL21..(3DS,5DS)..(EX,SX,VE,VS) |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-16020 |
AL2#..4DS,5DS |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-16901 |
AL2#..4DS,5DS |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-16030 |
AL2#..4DS,5DS |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-16901 |
AL2#..4DS,5DS |
1 | ||
| 61319 - PANEL, CENTER BODY PILLAR FINISH | ||||
| 61318-16020 |
AL2#..4DS,5DS RH |
1 | ||
| 61319-16020 |
AL2#..4DS,5DS LH |
1 | ||
| 61319 - PANEL, CENTER BODY PILLAR FINISH | ||||
| 61318-16020 |
AL2#..4DS,5DS RH |
1 | ||
| 61319-16020 |
AL2#..4DS,5DS LH |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-16020 |
AL2#..4DS,5DS |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-16020 |
AL2#..4DS,5DS |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-16100 |
AL2#..4DS,5DS |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-16100 |
AL2#..4DS,5DS |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-16900 |
AL2#..4DS,5DS |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-16900 |
AL2#..4DS,5DS |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-16902 |
AL2#..5DS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-16904 |
AL2#..5DS W/FULL LID OPENER |
1 | ||
| 61615A - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-16030 |
AL20,21..3DS,5DS |
1 | ||
| 61616A - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-16030 |
AL20,21..3DS,5DS |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-16080 |
AL20,21..5DS |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-16010 |
AL2# |
1 | ||
| 61645-16010 |
AL20,21..3DS,5DS |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-16100 |
AL20,21..5DS |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-16020 |
AL2# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-16110 |
AL20,21..3DS,5DS |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-16140 |
AL20,21..3DS,5DS |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-16908 |
AL20,21..5DS |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-16908 |
AL20,21..5DS |
1 | ||
| 61733B - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-16030 |
AL20,21..3DS,5DS |
1 | ||
| 61735-16010 |
AL20,21..3DS,5DS |
1 | ||
| 61734B - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-16010 |
AL20,21..3DS,5DS |
1 | ||
| 61736-16030 |
AL20,21..3DS,5DS |
1 | ||
| 61755A - RETAINER, DECK SIDE TRIM, UPPER RH | ||||
| 61755-16020 |
AL20,21..3DS,5DS |
2 | ||
| 61756A - RETAINER, DECK SIDE TRIM, UPPER LH | ||||
| 61755-16020 |
AL20,21..3DS,5DS |
2 | ||
| Common parts | ||||
| 90179-08143 | ||||
| 90950-01327 | ||||
| 91631-40612 | ||||
| 91665-60820 | ||||

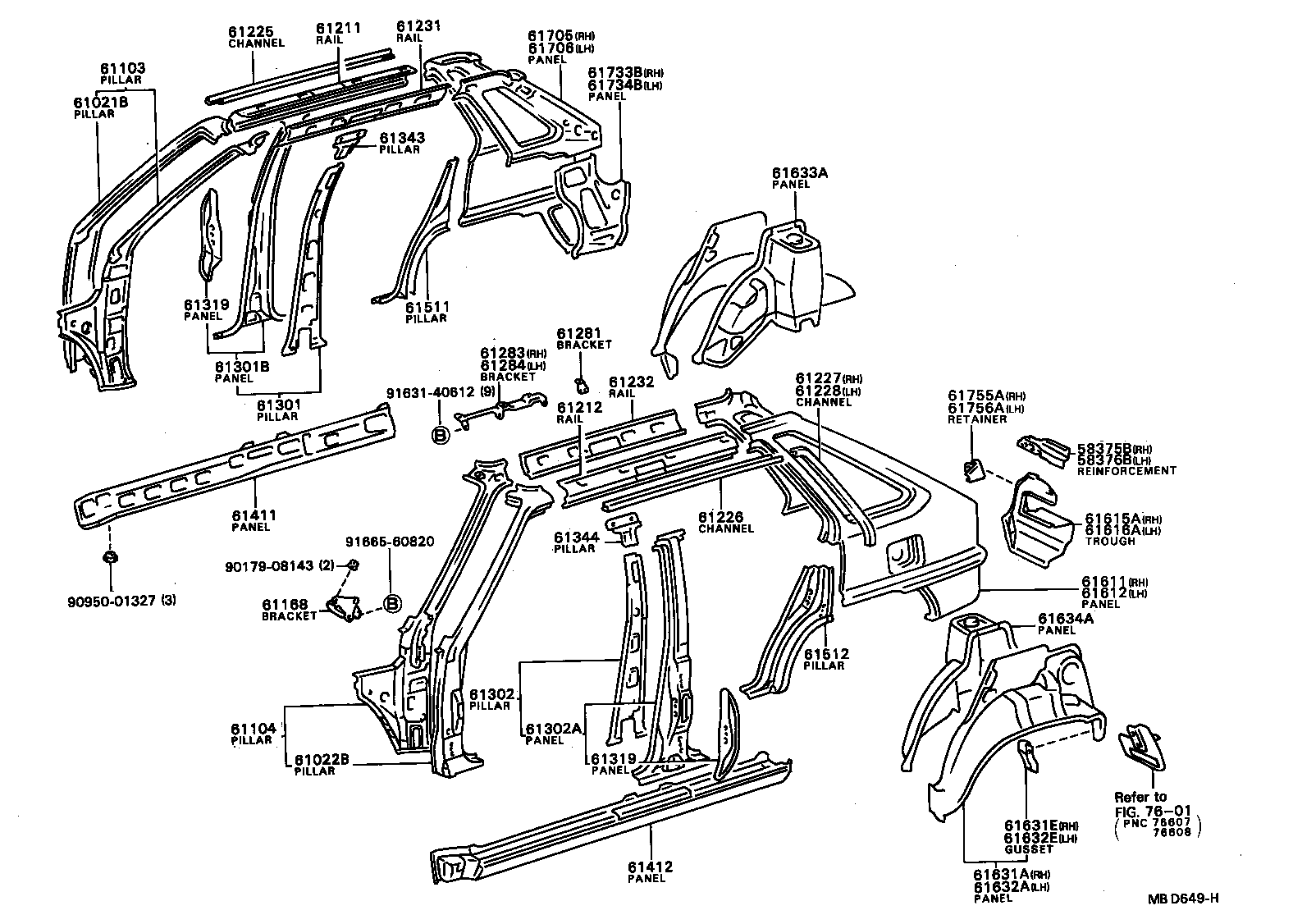

| Linked diagrams | ||||
| 7601 | ||||
