AL21-LHHSS (1984)
Toyota Corsa/Tercel
Production
Aug 1984
-
May 1986
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

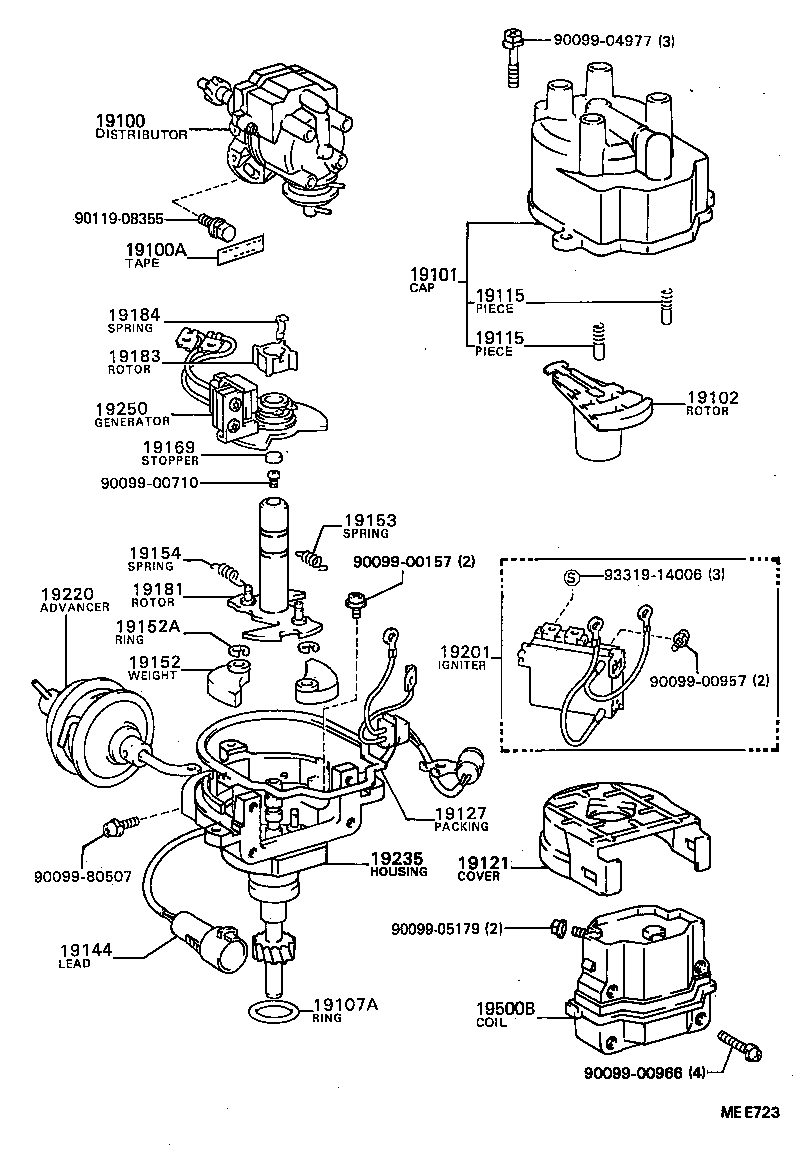

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-15010 |
3AU..AL21 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
2AU,3A#..AL2# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15090 |
2AU,3A#..AL2# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-63010 |
2AU,3A#..AL2# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96710-04030 |
2AU,3A#..AL2# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
2AU,3A#..AL2# |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
2AU,3A#..AL2# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63020 |
2AU,3AU..AL2# NO.1 |
1 | ||
| 19121-11010 |
2AU,3A#..AL2# |
1 | ||
| 19121-15090 |
2AU,3AU..AL2# NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15090 |
2AU,3A#..AL2# NO.2 |
1 | ||
| 19127-63020 |
2AU,3A#..AL2# NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-15090 |
2AU,3AU..AL2# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2AU,3A#..AL2# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2AU,3A#..AL2# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-15090 |
3AU..AL21 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-15090 |
3AU..AL21 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
2AU,3A#..AL2# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-15090 |
3AU..AL21 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
2AU,3ASU,3AU..AL2# |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
2AU,3A#..AL2# |
1 | ||
| 19201 - IGNITER | ||||
| 89620-16070 |
2AU,3AU..AL2# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-15100 |
2AU,3AU..AL2# |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15090 |
2AU,3AU..AL2# |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02139 |
2AU,3AU..AL2# |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
